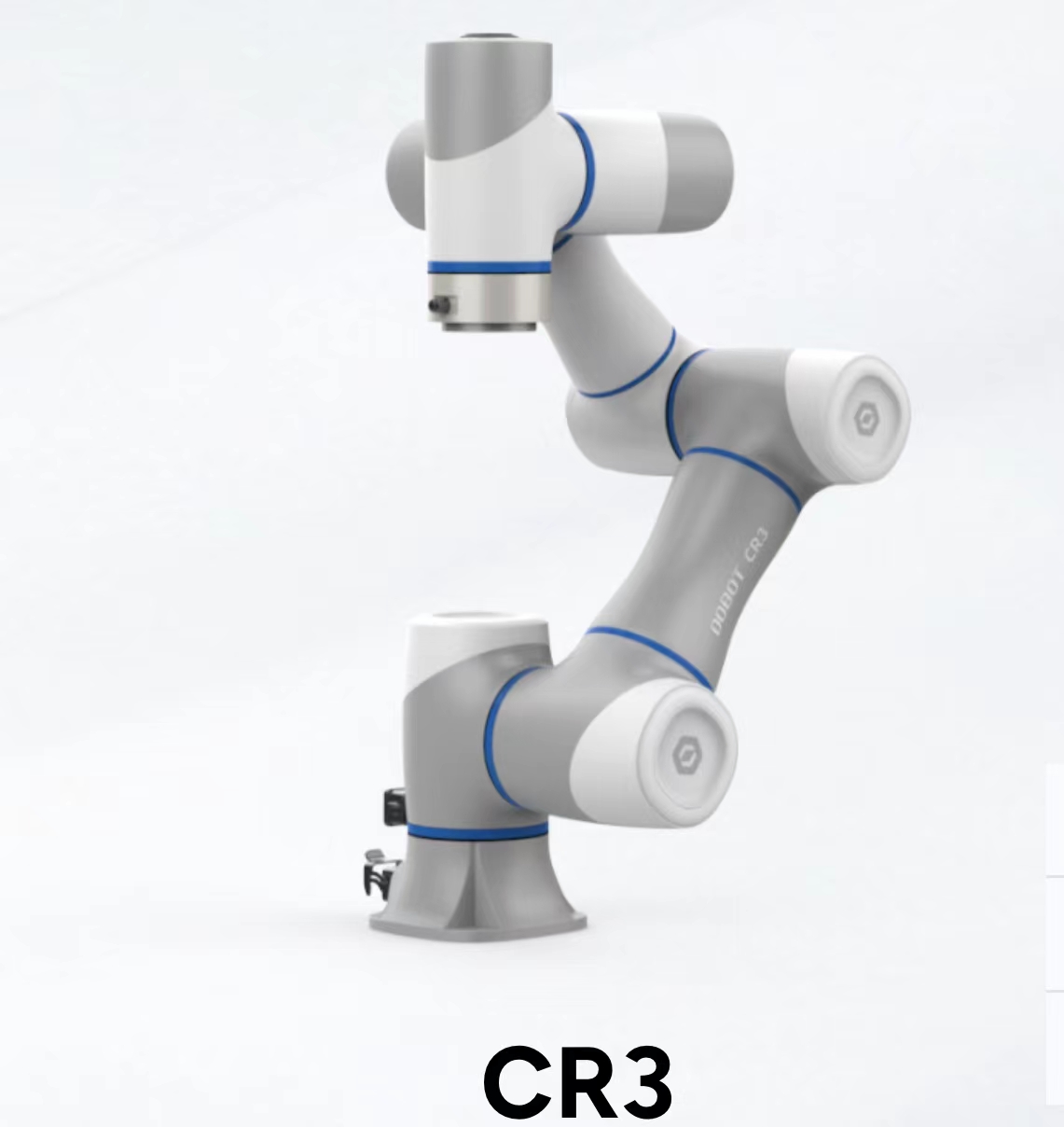

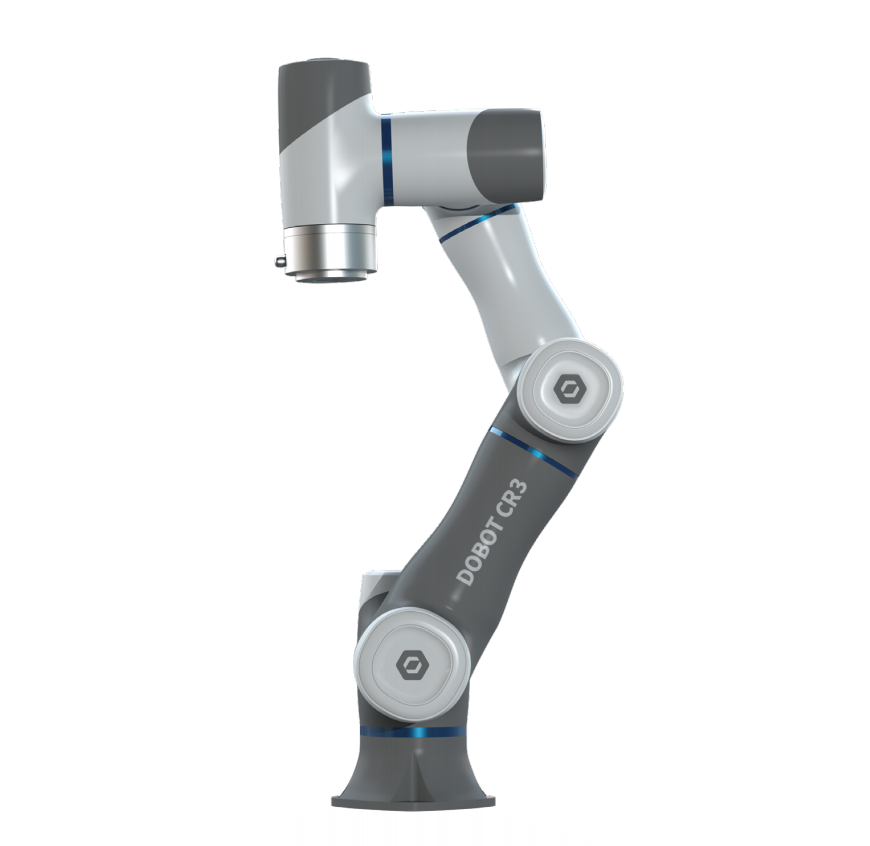

Small footprint and light weight cooperative robot can load 3kg fast layout robot

Categories Edge Robot
Brand Name: dobot
Model Number: cr3
Certification: ul
Place of Origin: China
MOQ: 1
Supply Ability: 500sets/month
Packaging Details: carton ➕ Foam inner packaging, outer frame fixed by wood frame
Warranty of core components: 1 Year
Marketing Type: New Product 2020
Core Components: PLC, Motor
Weight: 16.5kg
Axis: 6 axis
Payload: 3kg
Reach: 620mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Small footprint and light weight cooperative robot can load 3kg fast layout robot

Small footprint and light weight cooperative robot can load 3kg fast layout robot

Robots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes




ITEMVALUE
Applicable IndustriesRobots can be widely used in electronic product workshops, auto parts workshops, pharmaceutical food workshops or business life scenes
After Warranty ServiceVideo technical support, Online support
Local Service LocationNone
Showroom LocationNone
Video outgoing-inspectionProvided
Machinery Test ReportProvided
Marketing TypeNew Product 2020
Warranty of core components1 Year
Core ComponentsPLC, Motor
Place of OriginChina
Communication modeTCP/IPModbusWIFIEther CAT
Control cabinet size360*160*402.4mm
Warranty1 Year
Technical serviceOnline support
Weight (KG)16.5kg
Weight of control cabinet12kg
Axis6 axis
Payload3kg
Reach620mm
Rated voltageDC48V
Maximum operating speed4m/s
Repeatability±0.02mm
IP protectionIP54
Temperature range0~45°
Typical power consumption120W

Customer pain points:
Manual detection is inefficient and cannot be operated for a long time.
Solution:
The nucleic acid automatic liquid mixing/transferring machine adopts a CR3 cooperative robot, which can automatically complete the operations of feeding, capping opening, liquid mixing, liquid transferring, capping closing, blanking, etc. The accuracy can be controlled to 0.002ml, and the four mixing can be realized. This scheme can meet the production needs of liquid mixing and liquid transfer in the medical field, save manpower, archive and query data, and be accurate and controllable.
Customer value:
24-hour operation improves the detection efficiency.
High accuracy to avoid human error.
Product advantages:
CR series lightweight fuselage takes up less space and can be flexibly operated in narrow space.

If you need more product information, you can call me directly or add my WeChat:+861860167639
