Good Durability DX 68 Hose Crimping Machine For Hydraulic Hose Fitting Swaging

Categories Dx68 Hose Crimping Machine
Crimping Range: 14 - 87mm
Weight: 200Kg
Max. Opening: 31mm
Color: Blue
Hose Size: 1/4 - 2inch
Power: 4KW
Product Name: E38 Hose Crimping Machine (DX68)
Die Sets: 10
Application: Workshop
Size: 630*450*600mm
Brand Name: MENSION
Model Number: MS-E38
Certification: CE RoHS
Place of Origin: CN
MOQ: 1 Set
Payment Terms: L/C,D/A,D/P,T/T,,
Supply Ability: 1000 Sets Per Month
Delivery Time: 2 - 7 Working Days
Packaging Details: One Plywood For One Set
Crimping Force: 640T
Hydraulic Oil: T46
Price: Contact Us
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Good Durability DX 68 Hose Crimping Machine For Hydraulic Hose Fitting Swaging

Good Durability DX 68 Hose Crimping Machine For Hydraulic Hose Fitting Swaging
GOOD HOSE CRIMPING MACHINE MS-E38

DESCRIPTION
The MS-E38 hose crimping machine offers the same crimping range as the DX68 model but features a more compact structure. With its lightweight design and small volume, this machine can be easily placed on any platform where hose crimping operations are required.
MAIN FEATURES
  • Multiple usage capabilities with customized die sets
  • Hydraulic valve system ensuring high stability
  • Die sets manufactured with high hardness materials for extended service life
  • Unique cylinder production technology
TECHNICAL DATA
ModelMS-E38 Hose Crimper
Crimping Range14 - 87 (mm)
Crimping Force640 (T)
Hose Size1/4 - 2 (inch) 4SH
Max. Opening31 (mm)
Die Sets10
Die Set Type38
System Pressure31.5 (Mpa)
Accuracy0.01 (mm)
ControlMS
Standard Voltage220 (V) / 380 (V)
Motor Power4 (KW)
Length630 (mm)
Width450 (mm)
Height600 (mm)
Weight200 (KG)
Hydraulic Oil50 (L)
MS-E38 Hose Crimping Machine operational view showing compact design and die sets
38 HOSE CRIMPER DIE SETS
Die No.Crimping RangeLength
6*6 - 8 mm35
8*8 - 10 mm35
10*10 - 12 mm35
12*12 - 14 mm35
1414 - 16 mm60
1616 - 20 mm60
2020 - 22 mm60
2222 - 26 mm60
2626 - 30 mm60
3030 - 38 mm70
3838 - 46 mm70
4646 - 54 mm80
5454 - 64 mm80
6464 - 69 mm80
69*69 - 76 mm100
Note:
1) Customized die sets are available with different sizes or shapes
2) Special voltages such as 110V, 208V, 240V, 415V (60HZ) are available
3) Foot pedal is available for hands-free operation
4) * indicates non-standard die sets

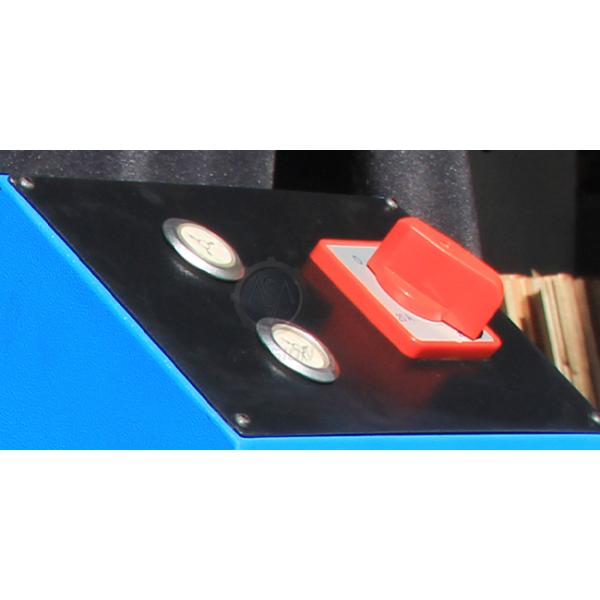

Close-up view of hose crimping machine die sets and components Side view of MS-E38 hose crimping machine showing compact design Front operational view of hose crimping machine controls and interface Detailed view of hydraulic hose crimping process and mechanism
