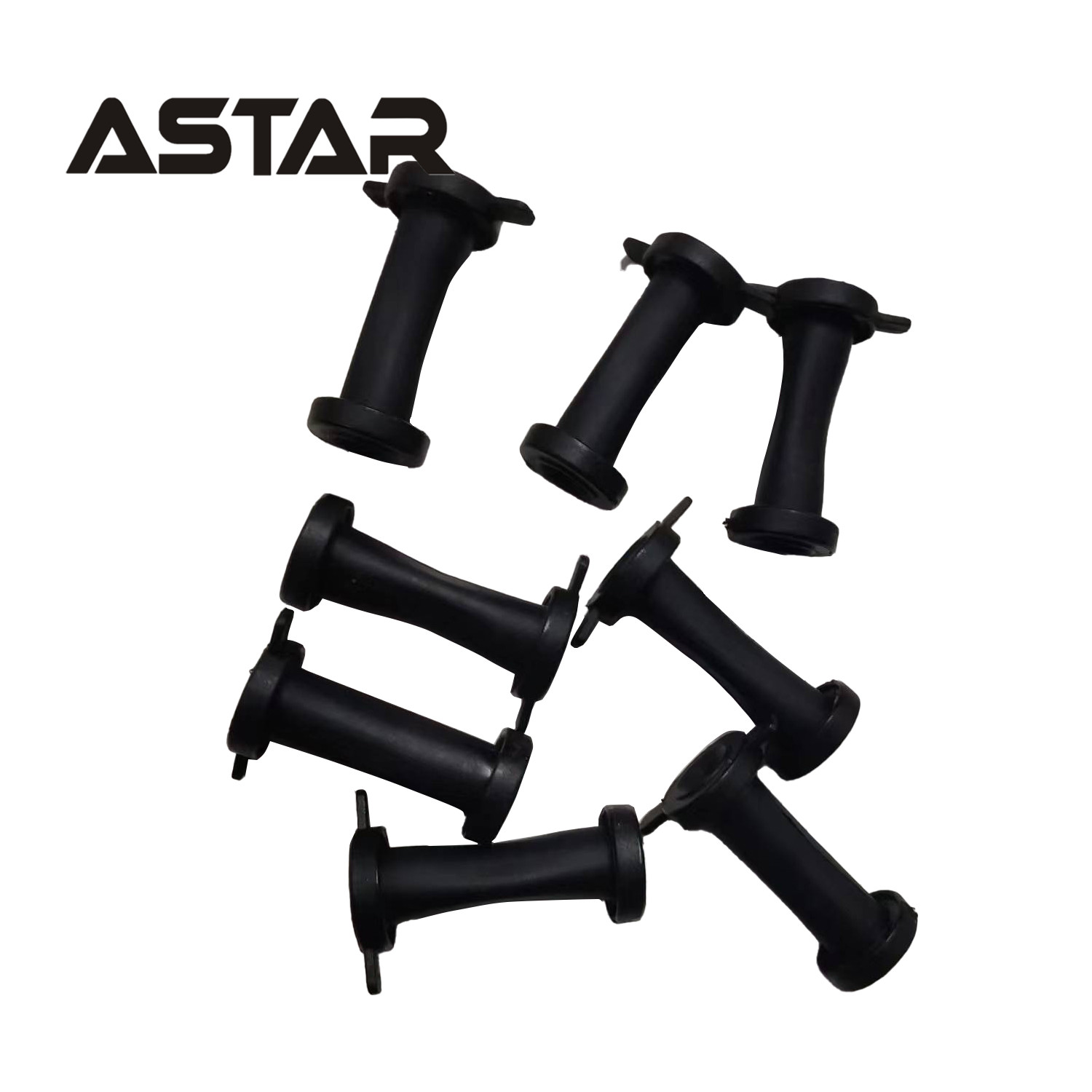

1017438 Pinch Valve Hose Powder Coating Spare Parts Black Rubber

Categories Powder Coating Spare Parts
Brand Name: ASTAR
Model Number: 1017438
Certification: ISO9001
Place of Origin: China
MOQ: 1
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pieces per month
Delivery Time: 5 - 8 work days
Packaging Details: Carton
Product name: Pinch valve hose
Mould: DN5
Material: Rubber
Application: Application Pump OptiSpray AP01.1
Brand: ASTAR
Color: Black
Working hours: More than 600 hours
Size: 5mm
Class: Industrial
Delivery: 7 days
Pressure: 6 Bar
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

1017438 Pinch Valve Hose Powder Coating Spare Parts Black Rubber

1017438 Pinch valve hose for Application Pump OptiSpray AP01.1


Introduction


This product is built to the latest specification and conforms to the recognized technical safety regulations and is designed for the normal application of powder coating.

Main function is conveying coating powder from or a fluidized container to the powder gun.
The Application pump is intended for conveying coating powder (no enamel) to the powder gun. The coating guns to be used must be equipped with the appropriate spraying air function or with an appropriate diffuser adapter.
The following components or modules are subject to a maintenance plan:
– Pinch valves
– Filter elements
The service life of the filter elements and pinch valves depends on the service duration, the powder quality and the quality of the air supply.
Pinch valve diagnostic
The pinch valve diagnostic is to be carried out, in order to maintain the coating quality or after the error message H89 is displayed.
The prerequisites for the diagnostic:
– Exhaust at suction and conveyance side must be present and in operation
– Powder hopper must be empty
– Cleaning program completed

The pinch valve diagnostic is to start after the cleaning program has been completed!
– The detailed procedure is explicitly described in the CG24-CP,CG23-P, CG12-CP or CG11-P Gun control unit operating instructions.
If the error message H87/H187 (suction pinch valve) or H88/H188 (conveying pinch valve) is displayed after the procedure has been completed, the corresponding pinch valve hoses must be replaced. The pinch valve diagnostic is to start after the cleaning program has been completed!
– The detailed procedure is explicitly described in the CG24-CP, CG23-P, CG12-CP or CG11-P Gun control unit operating instructions.
If the error message H87/H187 (suction pinch valve) or H88/H188 (conveying pinch valve) is displayed after the procedure has been completed, the corresponding pinch valve hoses must be replaced.

Application


Application Pump OptiSpray AP01.1


Quick Details


Product namePinch valve hosePart number1017438
MaterialA class rubberApplicationApplication Pump OptiSpray AP01.1
BrandAstarColorBlack
ColorBlackSizeDN5
Pressure6 BarWorking hoursMore than 600 hours

Selling point


1. Original compatible spare parts

2. Long working life

3. Good price with fast delivery


Package


Carton box


Company introduction


Astar Machinery Co., Ltd. is a comprehensive service in production, R&D; and sales, operates mainly in electrostatic powder coating equipment, including electrostatic dust elimination equipment; electrostatic flocking machine, electrostatic powder coating machine, electrostatic liquid spray machine, electrostatic powder coating gun, high voltage cascade, circuit board, powder hopper, powder tube, cable, reciprocator, painting booth, cyclone recovery system, control cabinet, oven, vibration sieve machine, the wind leaching room, supply Gema, KCI, Wagner accessories, professional wholesale gun shell, venturi tube, powder pump, deflector, nozzle, electrode holder and other products.
