Auto Walking Container Loading Unloading Conveyor

Name: Auto Walking Container Loading Unloading Conveyor
Brand: YiFan
Price: 1 USD

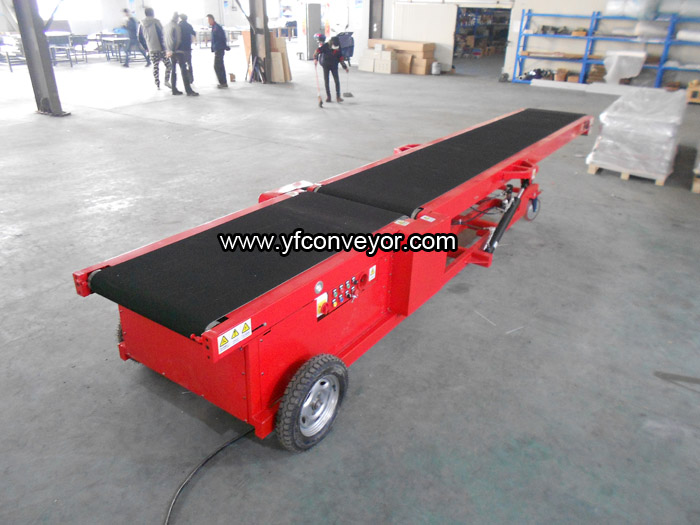

Auto Walking Container Loading Unloading Conveyor

Categories	Truck Loading Conveyor
Place of Origin:	Ningbo,China
Brand Name:	YiFan
Certification:	Auto Walking Container Loading Unloading Inclined Belt Conveyor
Model Number:	TLC-W
MOQ:	1 unit
Price:	negotiable
Packaging Details:	wooden pallet,cardboard,bubble film
Delivery Time:	30-35 days
Payment Terms:	T/T, L/C
Supply Ability:	20 units/month
Delivery Port:	Ningbo,Shanghai
Load Capacity:	50kg/m
Material:	Carbon steel
Material Feature:	Heat Resistant
Structure:	Belt Conveyor
Type:	Inclined Conveyor
Condition:	New
Belt Width:	800mm
Belt Material:	5mm thickness good grip PVC belt
Adjustable Height:	800-2500mm
Variable Conveying Speed:	15-25m/min
Motor Power:	1.5kw,2.2kw and 0.75kw
Two Way Operation:	forward and reverse,loading and unloading
Emergency Stop Button:	available
Voltage:	220V or 380V
Lift Structure:	hydraulic

Contact Now

Add to Cart

Company Info.

Ningbo YiFan Conveyor Equipment Co.,Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Auto Walking Container Loading Unloading Conveyor

Description

The Auto Walking Container Loading Unloading Conveyor can be moved in and out of containers for loading unloading all kinds of materials.

Main Control Panel:

Extend,Retract,Up,Down

Belt Forward,Belt Stop,Belt Reverse

LED Lights OFF/ON,Floor Lock ON/OFF,Speed Knob,Emergency Stop

Side Control Panel:

Extend,Retract,Up,Down

Belt Forward,Belt Stop,Belt Reverse

Lock ON,Lock OFF,Speed Knob,Emergency Stop

Technical Parameters

Motor:SEW brand
Belt Motor:2.2kw
Walk Motor:0.75kw
Hydraulic Motor:1.5kw
Frequency Transfer:DELTA brand
Belt:SIEGLING brand,800mm width,5mm thickness
Belt Speed:15-25m/min;
Walk Speed:12m/min
Max.Load:50kg/m;
Power Supply:220V,1-phase,50Hz
With safe bar and 6 LED lights
Frame Material:carbon steel,spray painting RED

Contact Us

Ningbo YiFan Conveyor Equipment Co.,Ltd.

Email: sales@yfconveyor.com

Web: http://www.yfconveyor.com

Tel:+86 574 8630 1900

Fax:+86 574 8630 1900

Mob:+86 139 5824 8487

FAQ

Can this conveyor be operation in two way LOADING & UNLOADING?
YES
Is the speed controllable?
YES
How many KGS can this conveyor carry?
50KGS per square meter
What products can this conveyor be used to load?
Cartons,boxes,bags,parcels,packages,etc.
What is the Max.lift height of the conveyor?
2.5m from conveyor top to the floor
Can you increase the height of the belt conveyor
YES,we have optional height of 2.8m
Is this conveyor AUTO lift and down?
YES
Will the conveyor stop automatically when reach the Max. & Min height?
YES
Can we add other flexible conveyor to it at the floor level?
YES
Need how many people to move the conveyor from one door to another?
One
Can we fix the conveyor in one place during loading and unloading operation?
YES
Can we use customized belt and motor?
YES
Can you make the voltage as per our requirements?
YES
Do you have foldable loading conveyor?
YES
Do you have smaller loading conveyor for vans?
YES
Can we use the conveyor for loading & unloading 40ft containers?
YES
Can we add guard at two side to avoid the products fall off?
YES
How do you dispatch this conveyor?
Dispatched completely.
How long is the delivery time?
30-35 days
How long is the warranty?
1 year
Do you supply OEM & ODM service?
YES
What are the necessary spare parts we should keep?
Belts,motors,inverter,buttons
