HEF4069UB Hex inverter

General description

The HEF4069UB is a general purpose hex inverter. Each inverter has a single stage. It operates over a recommended V_DD power supply range of 3 V to 15 V referenced to V_SS (usually ground). Unused inputs must be connected to V_DD, V_SS, or another input.

Features and benefits

• Fully static operation
• 5 V, 10 V, and 15 V parametric ratings
• Standardized symmetrical output characteristics
• Specified from 40 ℃ to +85 ℃ and 40 ℃ to +125 ℃
• Complies with JEDEC standard JESD 13-B

Applications

Oscillator

Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134).

[1] For DIP14 packages: above T_amb = 70 ℃, Ptot derates linearly with 12 mW/K.

[2] For SO14 packages: above T_amb = 70 ℃, Ptot derates linearly with 8 mW/K.

[3] For TSSOP14 packages: above T_amb = 60 ℃, Ptot derates linearly with 5.5 mW/K.

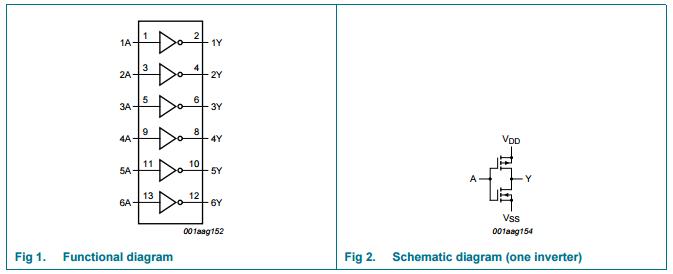

Functional diagram

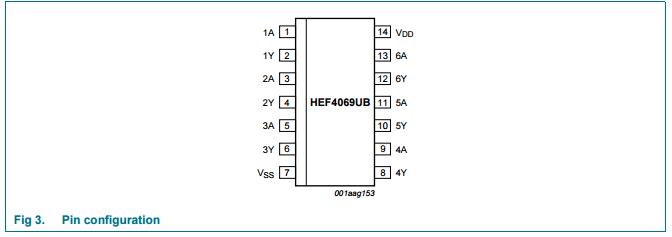

Pinning information
