| Categories | Barcode Reader Module |
|---|---|
| Brand Name: | Rakinda |
| Model Number: | LV1000 |
| Certification: | CE FCC Rohs |
| Place of Origin: | China |
| MOQ: | 1 pc |
| Price: | Negotiation |
| Payment Terms: | Western Union, T/T, paypal |
| Supply Ability: | 10000 pcs/month |
| Delivery Time: | 5-8 working days |
| Packaging Details: | carton package |
| Interface: | ttl 232 |
| Image Sensor: | CCD |
| Resolution: | 2500 |
| Scan Rate: | upto 300 scans/sec |
| Decode Rate: | 200 decodes/sec (default) |
| Symbologies: | Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, etc |
| Precision: | >=5 mil |
| Light Source: | LED |
| Power Consumption: | 0.33 W |

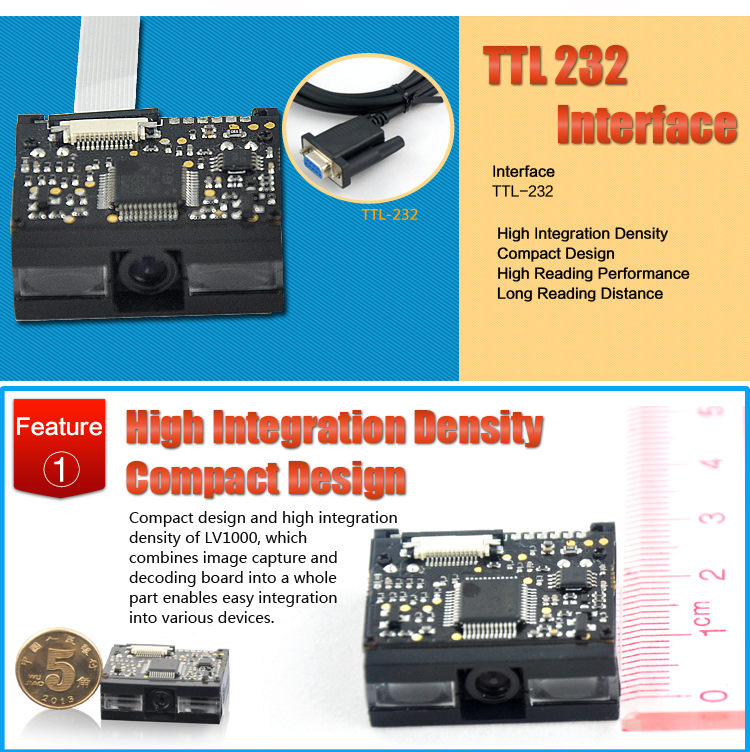

LV1000 1D OEM Barcode Reader Module CCD Embedded for Handheld Device
Features:
Outstanding Performance
Equipped with Rakinda third-generation decoder chip, the LV1000 can effortlessly capture high-density, high-volume and distorted barcodes printed on paper or displayed on screen.
Cost-effective Solution
The LV1000 provides a cost-effective data capture solution that
allows customers to enjoy the benefits of scanning 1D code.
Application Scenarios
Product traceability, purchase-sales-inventory management,
ticket/voucher management, office automation.
Specifications:
| Performance | |
| Interface | ttl232/USB-KBW |
| Image Sensor | CCD |
| Resolution | 2500 |
| Scan Rate | up to 300scans/sec |
| Decode Rate | 200 decodes/sec (default) |
| Symbologies | Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, etc |
| Precision | >=5 mil |
| Light Source | LED (622-628 nm) |
| Light Intensity | 265 LUX (130 mm) |
| Depth of Scan Field | 40-430 mm |
| Print Contrast Signal | >=30% |
| Sensitivity Pitch | ±65°@ 0°Roll and 0° Skew |
| Roll | ±30°@ 0°Pitch and 0° Skew |
| Skew | ±60°@ 0°Roll and 0° Pitch |
| Illumination | 0 ~ 100,000 LUX |
| Mechanical/ Electrical | |
| Power Consumption | 0.33 W |
| Voltage | DC 3.3 V |
| Current Working | 150mA(Max) |
| Idle | 45mA |
| Sleep | 1 mA |
| Weight | 6g |
| Environment | |
| Operate Temperature | -20℃ - +60℃ |
| Storage Temperature | -40℃ - +85℃ |
| Humidity | 5% - 95% ( non-condensing ) |
| Certificates | CE FCC Rohs |
| Accessories | |
| Evaluation Kit | The Evaluation Kit for LV1000, with trigger, beep functions and USB, RS232 interfaces. |
| RS232 Cable | This cable connect to the RS232 port of EVK. With a standard female RS232 port to connect to standard male RS232 port. With a power port to accept power adapter supply. |
| USB Cable | This cable connects to the USB Slave port of EVK with a USB-B male port. With a standard USB Slave port to connect to standard USB Host port. |
| Power Adapter | The power adapter for EVKby RS232 Cable. Output: DC5V, 2A; Input: AC100~240V, 50~60HZ |
| **Test Condition: | Code39: 3 Bytes ; Resolution = 10mil; W:N = 3:1 ; PCS = 0.8 ; Barcode Height = 11mm; Distance = 120mm; T=23°C; Illumination= 200 LUX |
|
