1024x768 Android Touch Panel PC 9.7 inch Cortex A9 with Wide voltage

Name: 1024x768 Android Touch Panel PC 97 inch Cortex A9 with Wide voltage
Brand: axnew
Price: 250 USD

1024x768 Android Touch Panel PC 9.7 inch Cortex A9 with Wide voltage

Categories	Android Touch Panel PC
Brand Name:	axnew
Model Number:	AXD-09PPC-A2C
Certification:	CE FCC
Place of Origin:	China
MOQ:	2 Units
Price:	US$250-300/Unit
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	2200 units/month
Delivery Time:	5-7 working days
Packaging Details:	5 units/carton
Name:	9.7 inch capacitive andriod touch panel pc
Screen:	9.7 inch 1024X768
Andriod board:	Quad Core with ARM CORTEX-A9
Memory:	1G DDR3
Flash:	8G
LAN:	RJ45
Wifi:	yes
Ports:	USB;RS232 rs485 could be options
Touch:	10 points projected capacitive touch
DC:	12V-24V

Contact Now

Add to Cart

Company Info.

AXNEW DISPLAY TECHNOLOGY CO.,LTD

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

1024x768 Andriod Touch Panel PC 9.7 inch Cortex A9 with Wide voltage

Panel PC information
Model Number	AXD-09PPC-A2 C
Model Number	9.7’’ Andriod Touch panel pc
Case/Bezel Color	Black
TFT Type	industrial LED Based LCD
Aspect ratio	4:3
Useful Screen Area	196.84 mm x 147.76 mm
Touch Panel	Multi-capacitive touch
Touch response time	10ms (typical
Touch PC Dimensions	250x 201x53.3 mm
Optimal (native) Resolution	1280 x 800
LCD panel Pixel pitch	0.1695 x 0.1695 mm
LCD panel Colors	262K/16.7 million
LCD panel Brightness	350 cd/m2
LCD panel Response Time	25 ms
Contrast Ratio	800:1
Viewing Angle ( Wide )
Horizontal (left/right)	±85° or 170° total
Vertical (up/down)	85°(up), 85°(down) or 170° total
Output Interface	VGA/HDMI type/ AV/Rs232 Options
Input Interface	USB*3
Net	Internet LAN
Watch Dog Technology	Support
Power Specification	External AC to DC power brick
	Wide voltage from 9V-24V
	AC to DC power brick input: 100-240 VAC, 50/60 Hz
	Power dissipation: 6W max
ECM (Embed Computer Module)	Quad Core ARM CORTEX-A 9 DDR3: 1G; NAND :8G Operation System:Android 4.42
Temperature	Operating: -10°C to 60°C ;Storage -20°C to 70°C
Humidity (non condensing)	20%RH –95%RH
Shipping Carton Dimensions	490 x 440 x340 mm (Five pieces in one )
Weight (approx.)	Actual: 11kg ;Shipping: 15kg

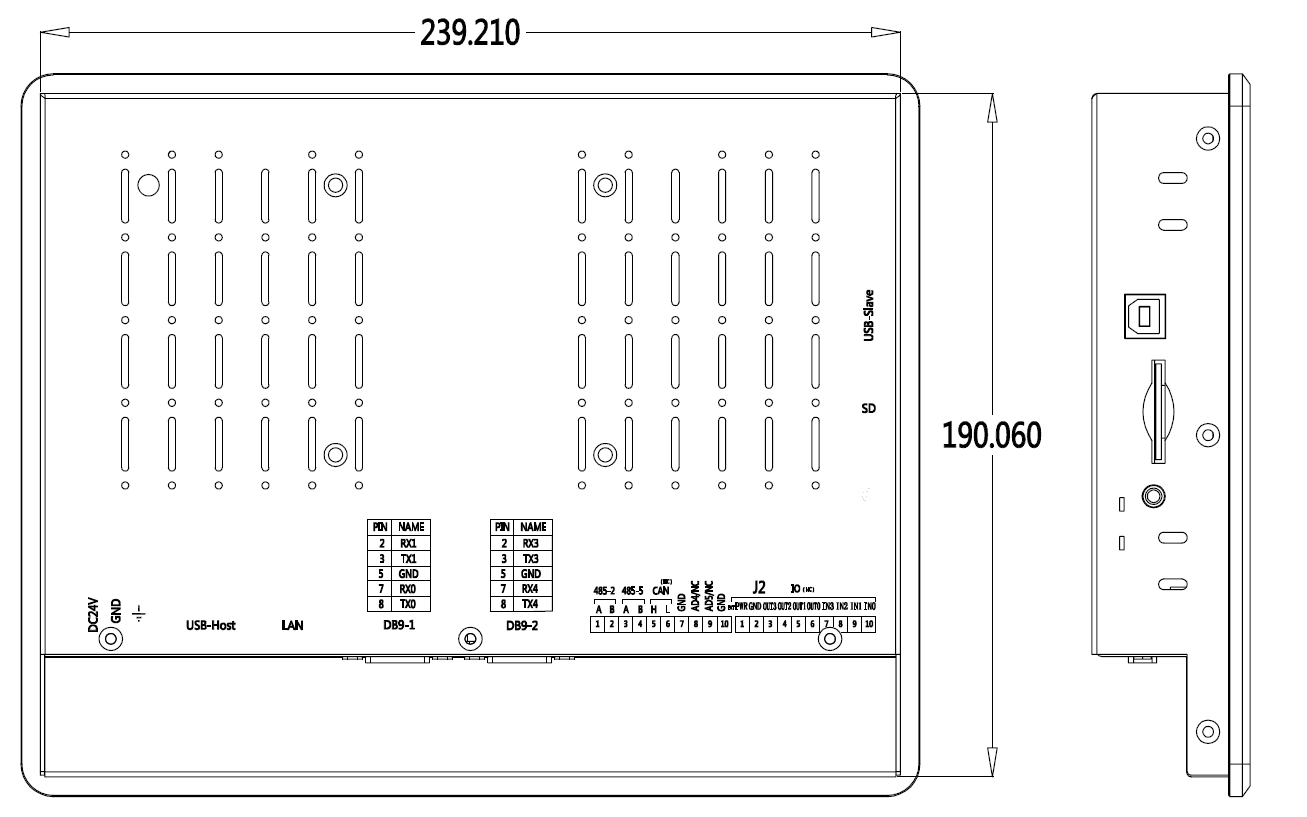

Dimensions
Holes fixings	Vesa mounting 100x100
Mechanical dimensions	262x 206x53.3 mm
Drawings	Please contact us for details

ports shown:
