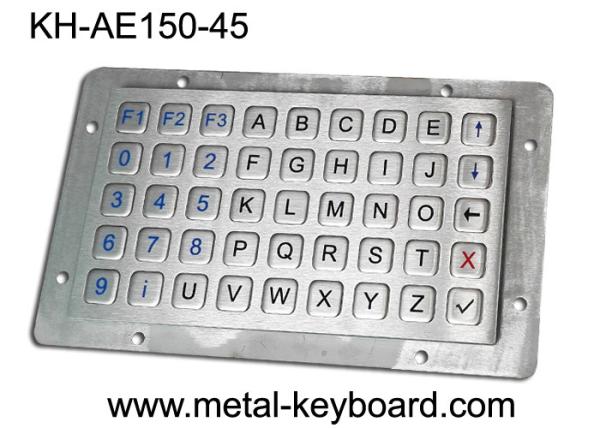

Vandalproof Laptop Panel Mount Keyboard With Metal Panle , Usb Interface
ITEM No.: KH-AE150-45
Product Dimension(Front Panel): 150x85mm
MAIN DESCRIPTION -
| 1 | 45 keys industrial keyboard layout without mouse, rear panel mounted. |
| 2 | Interfaces is USB, and PS/2 or matrix(pins) for your consideration. |
| 3 | Liquird proof, dustproof , vanal proof keyboard and it can be used in harsh environment |
| 4 | OEM/OEM order is acceptable with less MOQ |
| 5 | The letters or numbers on the keys can be changed per customer's needs |
| 6 | Different mounting solution can be also changed |
APPLICATIONS -
Vandalproof industrial keyboards, Anti-vandal, IP65 water-proof & long life. Ideal for applications in the public areas and harshest conditions, such as Info-Kiosk, Internet Kiosk, Check-in Kiosk, Boarding Kiosk, Medical Kiosk, Industrial Control Platform, etc.
TECHNICAL DATA SHEET AND SPECIFICATIONS -
Material | Front panel & Keys: | SUS304 Stainless steel |
| Back panel: | Stainless steel | |
ELECTRICAL DATA | Interface: | USB or PS2 |
| Supply Voltage | 5.0V DC±5% | |
| Current Rating: | appr. 30mA | |
| EMC Standard: | It is compliance with the council EMC directive 2004/108/EC | |
| EN55022: | 2006+A2:2010 | |
| EN55024: | 1998+A1:2001+A2:2003 | |
Environmental Characteristics | Operating temperature: | -20 C to + 60 C |
| Storage temperature: | - 40 C to + 80 C | |
| Operating RH: | 20-95% | |
| Atmospheric pressure: | 60-106Kpa. | |
| Mechanical Data | Key switch lifespan | more than 10 Mio actuations |
| Trackball lifespan | > 10 Mio revolutions | |
| Lifespan | > 5 years | |
| Reliability | MTBF | >5,0000H |
| MTTR | <30min | |
| Operation system | It is compatible to All windows, Linux, Unix, Mac OSX | |
|
