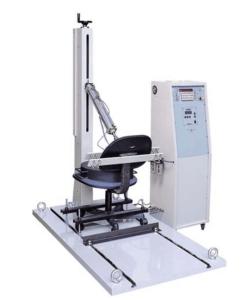

200 kgf Chair Back Cyclic Durability Tester ,10~30 rpm Furniture Testing Machine
Description:
It`s to evaluate the ability of the chair back to withstand the fatigue stress and wear that occur as the result of user exerting backward pressure on the chair.
Parameter:
Capacity | 200 kgf |
Test height | 500~1200 mm or specified |
Stroke | 0~400 mm(adjustable) |
Weight of seat | 100 lb or 225 lb |
Driving system | Pneumatic based |
Angle | 0~45° (adjustable) |
Reciprocating speed | 10~30 rpm (adjustable) |
Counter | LCD, 0~99,999, 999 (adjustable) |
Specimen type | Rolling chair/stationary chair |
Dimension (W×D×H) | Main Unit: 80×171×177 cm;Control box:45×40×124 cm |
Power | 1∮, AC220V (Specified by user) |
The accessories such as the different grips, elongation measuring-devices... etc. are
equipped according to the requirements specified in the contract; our sales representative will
also give the proper suggestions to our customer beforehand.
![]() |
