| Categories | 4 Port RFID Reader |
|---|---|
| Brand Name: | sunshine |
| Model Number: | F5860 |
| Certification: | CE,ROSH |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Payment Terms: | T/T, Western Union |
| Packaging Details: | Carton |
| Tag Protocol: | EPCglobal UHF Class 1 Gen 2/ISO 18000-6C |
| Working Frequency: | 840～960MHz |
| Communication Interface: | USB、RS232、RS485、Ethernet |
| Antenna interface: | Four TNC |
| GPIO interface: | 3-Road GPIO can only input can not be input，GPIO port default is low, the output high level of 5V,GPIO 3 IS USDED TO CONTROL LED state indicator(green) and buzzer |
| Receiving: | -82dBm |
| Reader Chip: | R2000 |
| RSSI: | support |

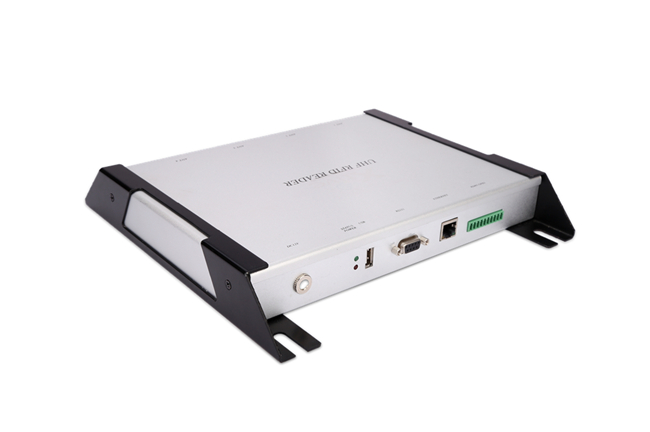

Support Multi-tag Reading 4-Port Fixed RFID Reader UHF With Impinj
Module
Product Advantage
Technical parameters
| Name | Parameters | Remark |
| Reader Chip | R2000 | |
| Tag Protocol | EPCglobal UHF Class 1 Gen 2/ISO 18000-6C | |
| Working Frequency | 840～960MHz | |
| Supporting Working Area | China, Europe, the United States, South Korea, Japan, Taiwan…… | |
| Operating Voltage | 12V | DC power supply |
| Maximum operating current | 1A | Test of transmit power in 30dBm state |
| Standby current | ≤80mA | |
| RF port maximum output power | 1W(30dBm) | |
| Working Temperature | -25℃～+65℃ | |
| Working Humidity | ≤95%(+25℃) | |
| Storage Temperature | -40℃～+80℃ | |
| Receiving | -82dBm | |
| Antenna interface impedance | 50Ω | |
| Serial communication parameters | Baud rate adjustable(default 115200bps),parity bit:0 ,data bit:8 ,stop bit:1 | |
| Power output settings | 5～30dBm adjustable /Adjustable minimum interval of 1dBm(default 30dBm) | |
| DRM mode | support | |
| RSSI | support | |
| High temperature automatic protection function | support | |
| Power supply enable | support | |
| GPIO interface | 3-Road GPIO can only input can not be input,GPIO port default is
low, the output high level of 5V,GPIO 3 IS USDED TO CONTROL LED
state indicator(green) and buzzer | |
| buzzer | support | |
| LED lights | Power indicator: Red | |
| Communication Interface | USB,RS232,RS485,Ethernet | Only one of the communication interfaces on the F5860-H can be used alone. Do not communicate with each other at the same time. |
| Antenna interface | Four TNC | The F5860-H working antenna defaults to antenna 1.Antenna parameters can be configured: working antenna, working time, interval time. |
| dimension | 26.5*25.0*4.5CM(including bracket) | |
| Accessories | 12V/3A Power Adapter:1 |
PIN Green Terminal Interface Definition
| Pin NO. | Name | Description | Remark |
| 1 | 485-B | RS485 B | |
| 2 | 485-A | RS485 A | |
| 3 | EN_OUT | Equipment enable control interface,When the high level input, the device will be in a state of sleep.The high level voltage is 5V. | |
| 4 | GPIO1 | GPIO port output, can be programmed to control the level of output.The output high level is 5V, the low level is 0V.The maximum output current is 100mA. (The default output level is low level 0V) | |
| 5 | GPIO2 | the same as above | |
| 6 | GPIO3 | the same as above(note:Equipment has occupied this interface for the green LED lights and buzzer control) | |
| 7 | NC | Reserved interface, no function | |
| 8 | NC | Reserved interface, no function | |
| 9 | WIFI_RESET | Device WIFI configuration parameter reset pin,this pin and the GND pin short to 10 seconds to restore the factory settings WIFI. | |
| 10 | GND | Signal reference. |
