50mm Black Panel Mount Trackball High Sensitivity PS/2 / USB Interface OEM/ODM Avaliable

Categories	Industrial Trackball Mouse
Brand Name:	CNKHTECH
Model Number:	KH-M50-F5
Certification:	CE/ROHS/FCC
Place of Origin:	China
MOQ:	1pcs
Price:	Negotiation
Payment Terms:	T/T, Paypal
Supply Ability:	5000pcs/month
Delivery Time:	1-2 weeks
Packaging Details:	1pc/EPE/white box, 30boxes/ctn
Material:	Stainless steel
Tracking Method:	Mechanical Trackball
Mounting Method:	Front panel mounting solution
Dimensions:	100 x 140 mm (Front panel)
Interface:	PS/2 or USB
Operating Temperature:	-20º C to + 60º C

Contact Now

Add to Cart

Company Info.

SZ Kehang Technology Development Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

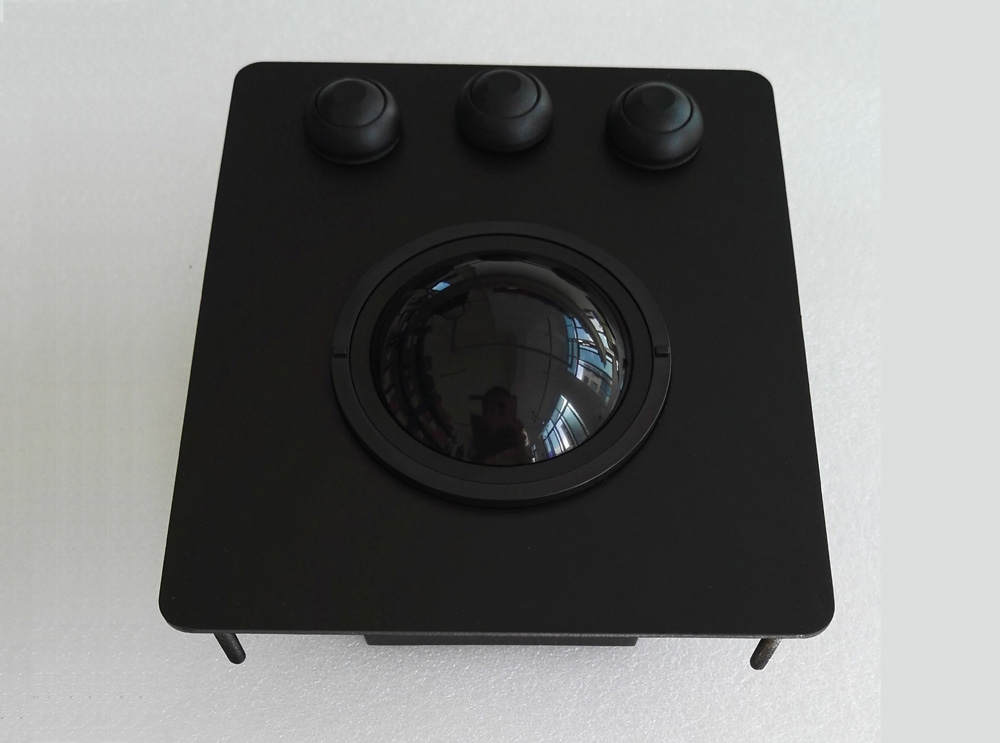

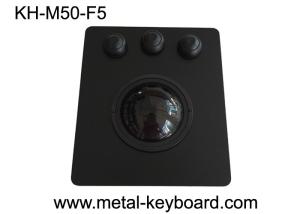

50mm Black Panel Mount Trackball High Sensitivity PS/2 / USB Interface OEM/ODM Avaliable

50mm Black Panel Mount High-sensitivity Trackball welcome OEM&ODM

Product Description

• Industrial Trackball Device with high resolution, built in 50mm trackball & 3 mouse buttons, top metal panel with threaded bolt solution.

Product Features:

• Black Titanium Electroplated on stainless steel surface design

• Built in 50mm Mechanical Trackball Module

• 3 Waterproof stainless steel button switch.

• PS/2 or USB connector is available.

• Customized layout is available.

Applications:
• The Industrial Trackball Device is used for existing mouse driver and mouse software Interfaces for most workstations and computers, applications in the medical or marine industrial areas, such as Info-Kiosk, Internet Kiosk, Check-in Kiosk, Boarding Kiosk, Medical Kiosk, Industrial Control Platform, etc.

TECHNICAL SPECIFICATION:

ITEM		SPECIFICATION
Mechanical	Key	3 keys
	Key top style	stainless steel buttons with tactile feeling
	Front Plate	Electroplated Black stainless steel
	Key Travel	1.00 mm
	Ball diameter	50mm
	Key switch lifespan	more than 10 Mio actuations
	Track ball lifespan	> 10 Mio revolutions
	Mounting Rack	top stainless steel plate with mounting screw bolts
	Dimension	Dimensions with 50mm track ball, Front plate (W x H): 100mm x 140mm
Interface	PS/2 or USB interface, plug and play,no extra software is needed
Electrical	Power supply	5V DC+ 10%, mouse interface

	EMC Standard	EN55022(B)
	Power consuming	≤1.00W(dynamic)
	Power consuming	≤0.2W(static)
	Contact Material	sealed stainless steel buttons
Environmental	Operating temperature	-20ºC~+ 60º C
	Storage temperature	- 30ºC~+ 70ºC
	Operating RH	30~90%
	Atmospheric pressure	60~106Kpa.
Reliable	Certificates	RoHS compliant, CE and FCC certified. ESD
	MTBF	>50000H
	MTTR	< 30min
OS	OS is under All windows, Linux, Unix, Mac OS9 / OSX
Packing Details	Each unit to a suitable inner box, suitable inner boxes to a standard export carton.
