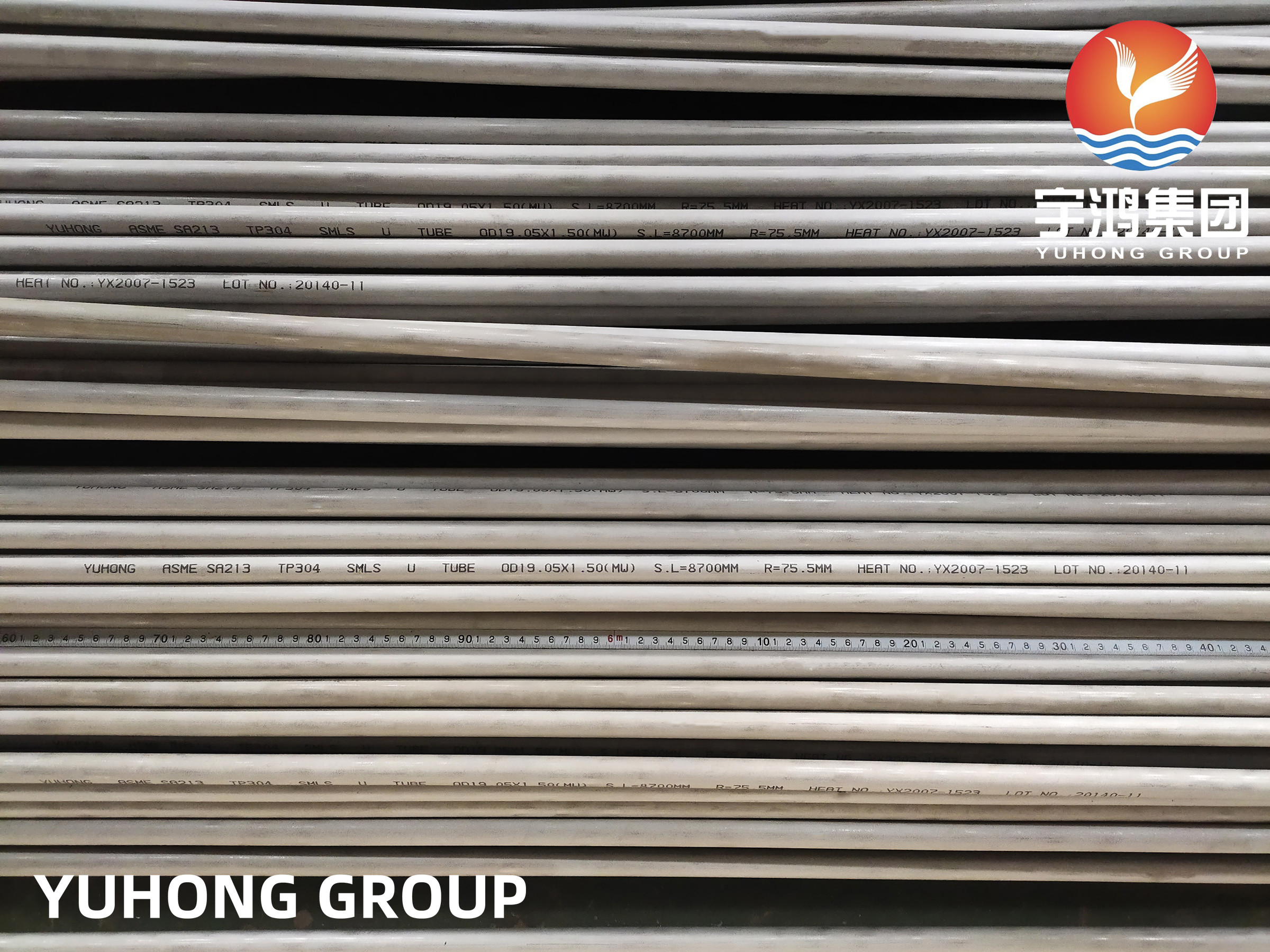

Heat Exchanger Seamless U bend Tube TP304/304L / TP316L TP310S TP316Ti TP321/321H , TP347 , TP317 , 100% ET / HT / UT

Categories	Heat Exchanger Tube
Brand Name:	YUHONG HOLDING GROUP
Model Number:	TP304/304L , TP316L , TP310S, TP316Ti, TP321/321H , TP347 , TP317
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Place of Origin:	CHINA
MOQ:	100KGS
Price:	Negotiable
Supply Ability:	ACCORDING TO CUSTOMER´S REQUEST
Delivery Time:	10 DAYS
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Specification:	ASTM A213/A213M-2013 , ASME SA213/SA213M-2013 , A789 , SA789
Material:	TP304/304L , TP316L , TP310S, TP316Ti, TP321/321H , TP347 , TP317
Type:	Straight Tube , U Bend Tube, Coil Tube
Surface:	Bright Annealed, Pickled And Annealed , Polished
Package:	PLY-WOODEN CASE

Contact Now

Add to Cart

Company Info.

Yuhong Group Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Heat Exchanger Seamless U bend Tube TP304/304L / TP316L TP310S TP316Ti TP321/321H , TP347 , TP317 , 100% ET / HT / UT

Heat Exchanger Seamless U bend Tube TP304/304L / TP316L TP310S TP316Ti TP321/321H , TP347 , TP317 , 100% ET / HT / UT

Specification:

ASME SA213/A213: Standard Specification for Seamless Ferritic and Austenitic Alloy-

Steel Boiler, Superheater and Stainless Steel Heat Exchanger Tubes.

ASTM A249 / A249M:Standard Specification for Welded Austenitic Steel Boiler, Superheater

Heat-Exchanger, and Condenser Tubes.

ASTM A789/A789M, ASME SA789/SA789M Seamless and Welded Ferritic/Austenitic Stainless Steel Tubing for General Service

Other Standard:DIN 17456 , DIN 17458, EN10216-5, JIS-G3463,...

Material Grade:

Size Range:

Production	Outside Diameter	Wall Thickness
Heat Exchanger Tube	6.00mm to 101.6mm	0.5mm to 8mm

Final Finishing

Solution Annealed & Pickled/Bright Annealed.

Type of Tubes:

U-bend & Straight.

Some of the quality tests carried out by us includes:

Corrosion Test	Conducted only when specially requested by the client
Chemical Analysis	Test done as per required quality standards
Destructive / Mechanical Testing	Tensile \| Hardness \| Flattening \| Flare \| Flange
Reverse-bend and Re. flat tests	Carried out in full compliance with relevant standards & ASTM A-450 and A-530 norms, which ensures trouble-free expansion, welding & use at customers end
Eddy Current Testing	Done to detect homogeneities in subsurface by using Digital Flaw-mark Testing System
Hydrostatic Testing	100% Hydrostatic Testing carried out according to ASTM-A 450 norms for checking tube leakage, and biggest pressure we can support 20Mpa/7s .
Air Under Pressure Test	To check any evidence of air leakage
Visual Inspection	After passivation, every single length of tubes & pipes is subjected to thorough visual inspection by trained staff for detecting surface flaws & other imperfections

Supplementary Testing : Apart from the above mentioned tests, we also carry out on the manufactured products supplementary testing. The tests conducted under this include:

Eddy Current Testing
O.P Testing
Radiography Testing

Corrosion Testing
Micro Testing
Macro Testing

IGC Testing
Ultrasonic testing
Liquid Penetrate testing
