| Categories | Membrane Switch Keyboard |
|---|---|
| Brand Name: | Zhongshan |
| Model Number: | ZS-103 |
| Certification: | ROHSISO9001,2000 |
| Place of Origin: | Jiangsu(China mainland) |
| MOQ: | 100 pieces |
| Price: | negotiatioon |
| Payment Terms: | 30% deposit, the 70% balance after shipment or full payment before air transportation |
| Supply Ability: | 50000 pieces per week |
| Delivery Time: | within one week after receiving order payments |
| Packaging Details: | Seal plastic bags with carton boxes or due to customer detail requirements |
| Material: | PET/PVC |
| Connector: | 1.44mm Female Connector |
| Size: | 50*104mm |
| back adhesive: | 3M467MP |
| application: | Telecommunication Equipment, Ho |
| Company Info. |
| Nanjing Zhongshan Membrane Switch Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

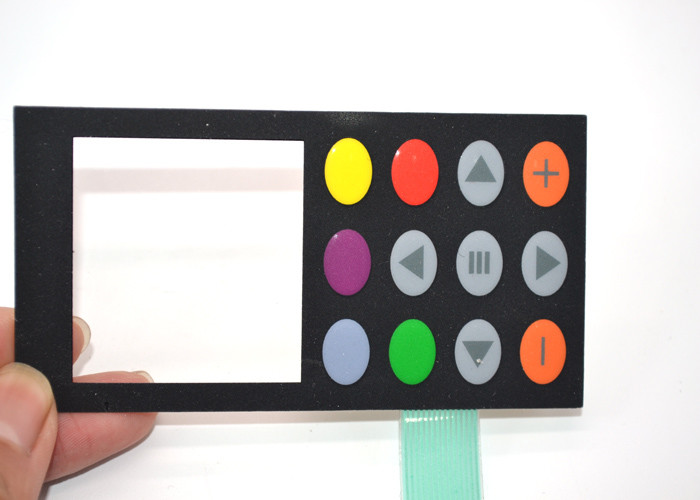

Tactile Embossed Push Button Silicon Membrane Keypad Switch ZS-103 /
With a clear display windw
Specifications:
| Operating voltage : | 35V DC | Life expectancy: | Flat type≥5,000,000 times Tactile type≥1,000,000 times |
Operating current: | 100mA 1W | Switch stroke: | 0.1 to 0.6mm |
Contact resistance: | < 100 Ohms | Contact bounce: | 5 to 30ms |
Open circuit resistance: | ≥ 10MΩ at 100V | Actuation force tolerance: | +/- 20 to 45g |
Operating temperature: | Flat/Metal dome:-20°c to +80°c | Tactile ratio: | FC > 40% |
Storage temperature: | Flat/Metal dome:-40°cto +80°c | Operating humidity: | up to 95% RH |
Main Properties:
1. PC /PET as overlay (control panel)
2. Flat keys or tactile type
3. Embossed button with good tactile feel
4. Pre-assemble with or without metal domes
5. Water-resistant, water-proof, dust-proof, gas-proof and
scratch-resistant
6. Long life cycle.
7. Finish :Gloss(easy to clear); Textured (print and scratch resistant),Customized finish
available.
Membrane Switch Packing and Delivery Details:
1.100pcs usually putted into a poloybag,seperated by carbboard,5 bags packed into a 5-layer
carton.
2.According to customers' requirements.
Lead Time:
1. Lead time of samples:
Inital samples: 3-5 working days for graphic overlay, 5-7 working days for membrane
switch,7-15 working days for special membrane switch including
special product.It takes 5-7 working days to recise initial sample.(depended on actural
product.)
Final lead time is for your reference only , for more information ,pls contact me. Lead time
for mass production delivery:
2. Lead time of delivery:
Mass production for reqular membrane switches 7-15 working days after receipt of
PO.Repeat order , graphic overlay needs 5-7 working days.
Membrane switches take 10-30 working days .It takes 15-45 working days for special
material.We can ship partial shipments for big quantity orders.
Final ship date will be subject to company confirmation
|
