| Brand Name: | Shinho |
| Model Number: | SC101 |
| Certification: | CE , FCC , RoHS |
| Place of Origin: | Shenzhen , China |
| MOQ: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram |
| Product name: | 10.1 inch industrial PC with ISDI PCI slot |
| CPU: | Intel Atom D2550, Dual core, 1.86GHz |
| RAM: | 2G DDR3 |
| Hard disk: | 32G SSD |
| Resolution: | 1366*768 |
| Aspect ratio: | 16:9 |
| Brightness: | 300+ |
| Feature: | with ISDN PCI slot |
| Company Info. |
| Shenzhen Shinho Electronic Technology Co., Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

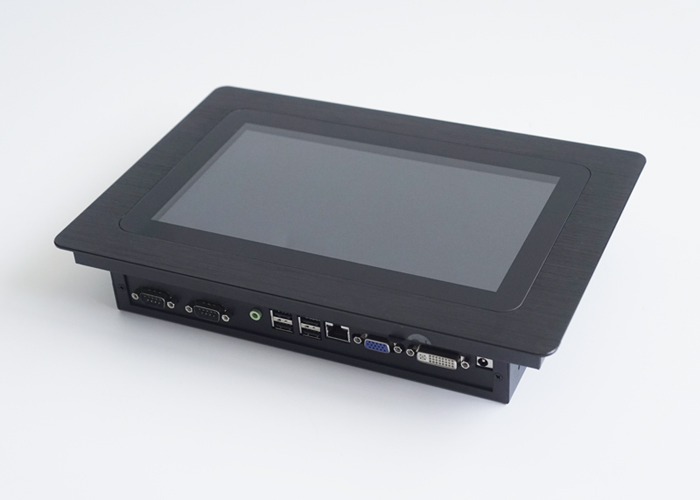

10.1 Industrial Panel PC Atom D2550 Processor Dual Core with ISDN PCI Slot
Features
1) 10.1 inch industrial LCD Panel
2) Intel Atom D2550, Dual core, 1.86GHz
3) RAM 4GB, Hard drive capacity 32GB
4) Brightness 300nits
5) Interface: 4x USB, 2x COM RS232, 1x VGA, 1x DVI, 1x RJ45, 1x Audio
OUT, 1x POWER DC, 1x ISDN PCI slot
6) Aluminum Alloy enclosure
Applications
Industrial automation
monitoring center
Intelligent Lab Automation
process control systems
Data Acquisition
Packing Details
Universal Power adapter
Embedded screws
Warranty card
Specification
| Model:SC101 | |
| PC | |
| CPU | Intel Atom D2550, Dual core, 1.86GHz |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 2G DDR3 (4G, 8G optional) |
| Hard Drive Capacity | 32G SSD |
| Hard Drive Optional | SSD: 64G, 128GB, 256GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |
| I/O Interface | 2x USB 2.0, 2×USB 3.0, 2 x COM RS232 |
| 1x VGA/RJ45/Audio OUT/POWER DC | |
| 1x PCI slot | |
| Operation System | Support Windows 7/8/10, Windows XP. |
| LCD panel | |
| Panel size | 10.1" |
| Resolution | 1366*768 |
| Aspect ratio | 16:9 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400+ |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Power Supply | |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Aluminum Alloy |
| Color | Silver, Black, white, color can be customized |
| VESA mounting | 75×75mm/100×100mm |
| IP grade | front panel IP65 waterproof |
| Operating Environment | |
| Temperature Range | operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 1.8kg |
| Gross weight | 3.1kg |
| Product Dimension | 29.4×19.4×5.85cm |
| Packing size | 40×34×15cm |
| Accessories | Power adapter, embedded screws, user manual, warranty card |
| Other | |
| Mounting (options) | embedded mounting screws |
| wall mounting brackets (optional) | |
| desk stand holder (optional) | |
| Warranty | 1 year warranty |
