| Categories | Single Acting Pneumatic Actuator |
|---|---|
| Brand Name: | xm |
| Model Number: | DA,SR |
| Certification: | CE,ATEX,ISO,SGS |
| Place of Origin: | Jiangsu, China |
| MOQ: | 20 |
| Supply Ability: | 5000 sets per month |
| Delivery Time: | 3-15days |
| Packaging Details: | 1) foam packing inside,one carton box outside 2) then put all carton box in one strong plywood case for sea transport |
| Metarial: | extruded Aluminum alloy |
| Colour: | black, gray, blue, or as customers' requirement |
| Application: | Ball valve, butterfly valve |
| Connection: | ISO 5211,DIN 3337 |
| Structure: | rack and pinion |
| Type: | single action |
| Product name: | Single action pneumatic actuator spring slip add to pneumatic actuator |
| Size: | 32 to 400 |

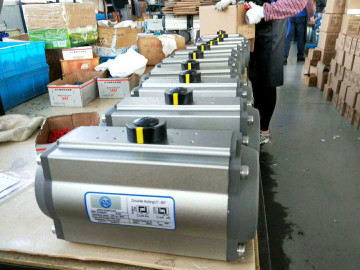

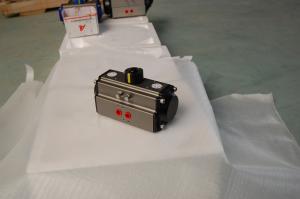

Single action pneumatic actuator spring slip add to pneumatic actuator
Pneumatic actuator
| Material | Extruded Aluminum alloy |
| Rotary Angle | 0~90 degree |
| Structure | rack and pinion rotary actuator |
| Working Pressure | 2~8bar |
| Surface Treatment | hard anodizing |
| Working Temperature | Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F); High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F); Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F). |
| Connection | NAMUR, ISO5211 and DIN3337 |
| Application | ball valve, butterfly valve, and rotary machine |
| Cup Color | grey, black, sky blue, dark blue, red, orange |
Pneumatic actuators statement of usage and selection
The extruding high intensity aluminum body possesses a honed internal surface coated with hard anode oxygenation for long life. Low coefficient of friction and swift performance.
Excellent compact and modernized construction along with multi specifications makes the selection both economic and beneficial.
All acting surface adopt high quality bearing resulting in low friction, high cycle life, and no noise
The two independent external stroke adjustment bolts can easily and precisely adjust ±5°at both open and close directions.
Same outline actuators have the functional modes of double acting and single acting (Spring -Return). The Spring-Return has the normally-open and normally-close styles.
Multi function indicator with NAMUR is convenient for mounting accessories.
Pre-compressed load spring is convenient for safe mounting and tear down procedures.
Die-casting aluminum pistons and end caps have high intensity and light weight.
Different O-rings materials are available for high and low temperature.
Solenoid valves are easily mounted without any connecting plank.
|
