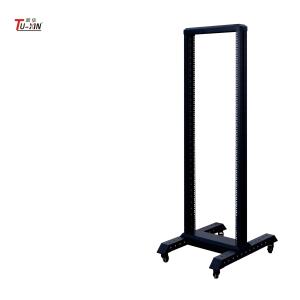

19'' Open Rack Cabinet 18U Open Frame Server Rack 2 Post 600/800mm Width

19'' Open rack Cabinet,18U Server Rack,frame Open Rack 2post open frame rack

Package:

• Features:
  1.Modular design, easily assemble and disassemble for delivery, low-cost.
  2.Various optional accessories according to requirements (cable management slot, cable management, removable working panel, etc.)
  3.19’ frame 2 pcs, 2mm welded fold steel sheet, two sides figure punching.
  4.Can be bolted directly to floor
  5.Maximum access for cable management and equipment maintenance.
  6.Flexible packing methods allows for convenient stocking and end user delivery.

  Standard and Material:
  Comply with ANSI/EIA RS-310-D,IEC297-2,DIN41494;PART1,DIN41494;PART7,ETSI standard.
  Main material:SPCC cold rolled steel or EG steel
  Thickness:Plinth:2.0mm;Front and bottom beams 2.0mm, pole:1.5mm.
  Surface Finish:Degreasing, pickling, phosphoric, power coated.
  Loading capacity: Static loading: 200KG, from 15U to 47U capacity.

• Flat packing for 600width Cabinet:
  Packing 1: (Frame,side doors,mounting angle,mounting profile).
  Packing 2: (Front and back doors).
  Packing 3: (Top and bottom frame and horizontal bars)
  Packing 4: (Vertical cable management).only for 800widthFlat packing for 600width Cabinet:
  Packing 1: (Frame,side doors,mounting angle,mounting profile).
  Packing 2: (Front and back doors).
  Packing 3: (Top and bottom frame and horizontal bars)
  Packing 4: (Vertical cable management).only for 800width

OUR SERVICE:

FAQ:

Ningbo Tuxin Communication Equipment Co., Ltd. is a professional cabinet R&D,design,production and sales in an integrated import and export enterprises.The cabinet is designed to provide excellent operating environment for electronic equipment, in order to improve the reliability and safety of electronic equipment operation, reduce equipment maintenance costs, improve efficiency and extend equipment life.
Tuxin cabinet with years of experience in the cabinet manufacturing, high-quality product quality and reasonable price positioning access to the trust of our customers. With the continuous expansion of market demand and the continuous development of the company, "Tuxin cabinet" has been widely used in high-speed rail, airport, bank, IDC room, business, hospital, government, university, chain retail, manufacturing, network operators, military Various fields, products exported to different countries and regions, selling at home and abroad.
The main products of Tuxin cabinet are: cold channel products, micro modules, network cabinets, server cabinets, open racks, wall-mounted cabinets, industrial control cabinets, control boxes, patch panels, distribution cabinets, distribution boxes, integration Cabinet systems, multi-series PDU cabinet power and KVM multi-platform management server and other communications equipment and accessories.
All products are made of high quality cold-rolled steel plate, the surface of nano-treatment, electrostatic spray, for high corrosion requirements of the product can also choose cathodic electrophoresis primer process.
