Brand Name: | JUNSON |
Model Number: | JS-350DTS |
Certification: | CE/ROHS/FCC/SGS |
Place of Origin: | China |
MOQ: | 10pcs |
Price: | negotiation |
Payment Terms: | T/T, paypal or western Union in advance |
Supply Ability: | 30,000pcs per month |
Delivery Time: | 1-7 working days after received your payment |
Packaging Details: | Packed in carton |
Lock Size: | 500L * 57W * 29H (mm) |
Standard Packing: | Carton/10 pcs |
Suitable Humidity: | 0~90%(non-condensing) |
Finishes for Shell: | Anodized aluminum |
Finishes for Magnetic: | Zinc |
Weight: | 5kg/pcs |
Delay Timer: | 0/3/6/9 |
Power supply: | 12V or 24V |
Operating Temp: | -10~+55°C (14-131F) |
Suitable for: | Wooden door |
Company Info. |
Shen Zhen Junson Security Technology Co. Ltd |
Verified Supplier |
View Contact Details |
Product List |
Delay Timer 800lbs*2 Security Magnetic Lock With Dual LED
Model:JS-350DTS
Shenzhen Junson Security Technology Co. Ltd is engaged in the
R&D, production and sales of various famous security systems.
We offer magnetic locks, electric locks, electric strikes, electric
bolt locks, door locks, electronic locks, lock panic bars, push bar
exits and other related items
the description of 800lbs electromagnetic locks:
1. Fail safe, Power to lock
2. Collinear Load Test 350kg x 2, 800Lbs x 2
3. Dual Voltage 12 or 24 VDC(optional)
4. The Standard Voltage is 12VDC when Finished
5. MOV Provides Reverse Current Protection
6. Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
7. LED Indicates the Lock Status, lock Status sensor(NO/NC/COM)
8. High Strength Material(kasolite steel), Anodized Aluminum
Housing
9. Design with no Mechanical Bolt
10. Increase the holding Force, Dual Insulative Hosing
Specifications of 800lbs Magnetic Lock :
Lock Dimension: | 500Lx57Wx29H(mm) |
Armature plate dimension: | 180Lx42Wx13H(mm) |
Holding force | 800Lbs x 2 |
Voltage : | 12 / 24V DC |
Current : | 12V/540mA 24V/270mA |
Available bracket | JS-35U, JS-35ZL, JS-35L |
Finishes for Magnetic | Zinc |
Signal output: | Dry Contact, NO, NC, Com |
Surface Temp: | ≦20℃ |
Operating Temp: | -10℃ - 55℃ |
Finishes for Armature | Zinc |
Suitable Humidity: | 0-90% (non-condensing) |
Suitable for | Wooden door, Glass door, Metal door, Fireproof door |
Weight: | 5.0kg |
Timer | 0/3/6/9 s |
Standard Packing: | 10pcs |
Cartons size: | 35L * 30W * 17H (cm) |
Advantage of 800lbs electromagnetic lock:
Junson magnetic locks adopt international leading production
equipment and packaging technology, which not only makes our locks'
antioxidant capacity of the surface reach the international leading

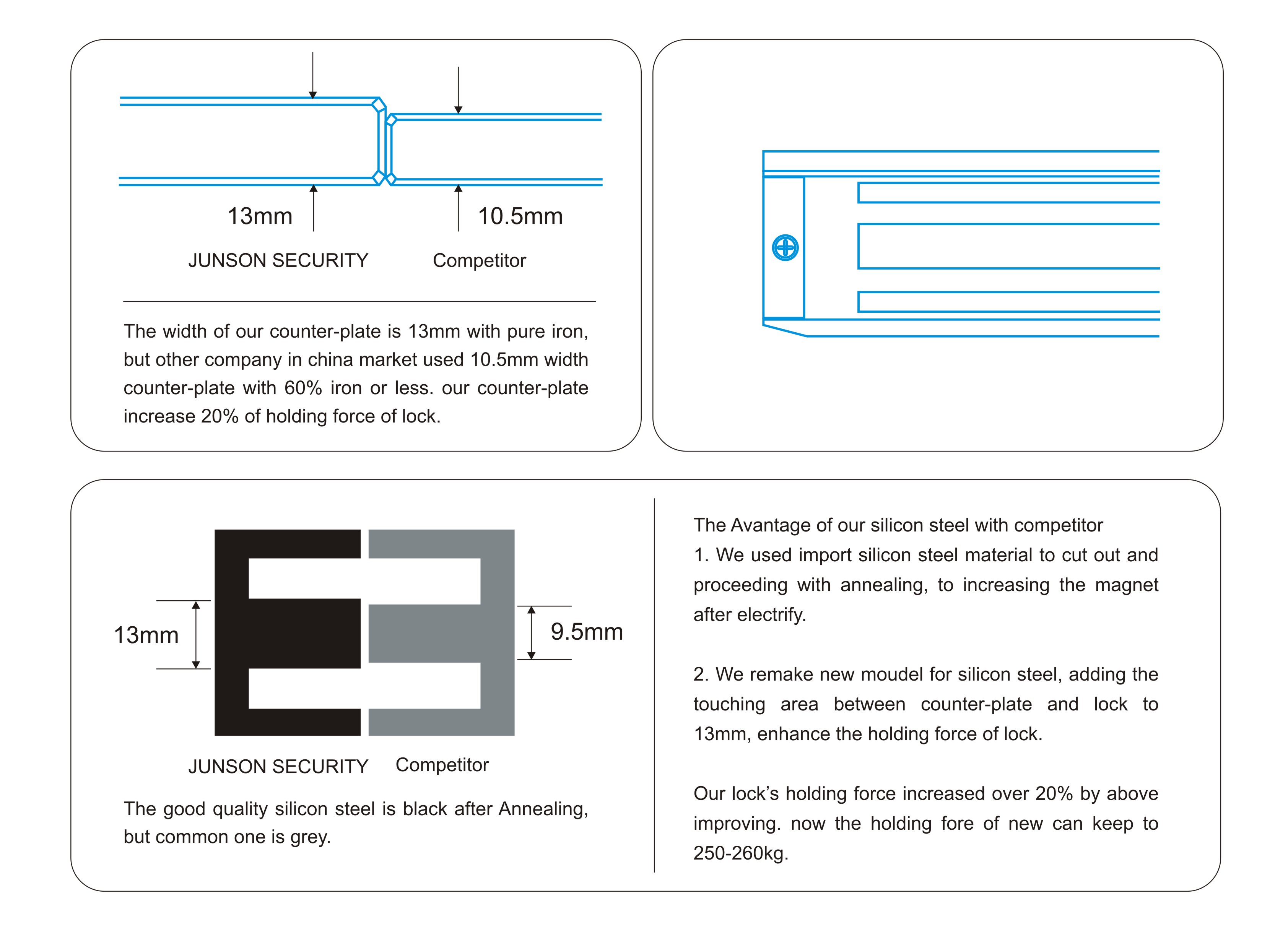

level, but also helps to increase the holding force (higher 20%
than other manufacturers). Now our locks have been sold to more
than 60 countries and regions around the world, they are widely
used in the important places such as airports, subways, banks,
prisons, intelligent buildings, intelligent community and so on,
and become convenient, fast and intelligent tool for global users,
gain good reputation from the customers.
FAQ
Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card;
moneybooker;T/T;western union.
Q:Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can
view the shipment staus on the corresponding website.
Q:Does this product come with retail package?
A: We have declared the packing detail on the description of each
product, please check it, thank you!
![]() |
