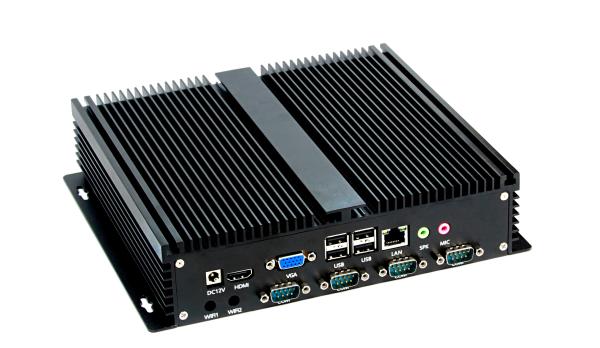

industrial embedded industrial mini PC Intel J1900 4G RAM 120G SSD Fanless Aluminum casing

Categories Embedded Industrial PC
Brand Name: ITD/OEM
Model Number: ITD-MNPC-N2830
Certification: CE/ROHS/FCC
Place of Origin: China
MOQ: 1PCS
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pcs per month
Packaging Details: Foam,gift box,master carton,wooden case,pallet
CPU: Intel Celeron N2830 Dual-Core 2.16GHz Processor
Graphics: Intel NM70 Express HD Graphics
Memory: 2GB, up to Max. 8GB
Storage: 320GB SATA up Max. 1TB; 32GB SSD up to Max. 512GB (MSATA Supported)
Driver Support: Windows CE/XP/7/8/10, Linux
Serial port: 6 x COM
USB port: 6 x USB2.0, 2 X USB3.0
HDMI Port: 1 x HDMI
LAN: 1 x 10/100/1000Mbps Ethernet
Price: TBA
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

industrial embedded industrial mini PC Intel J1900 4G RAM 120G SSD Fanless Aluminum casing

industrial embedded industrial mini PC Intel J1900 4G RAM 120G SSD Fanless Aluminum casing


Specifications:


Industrial Embedded Box PC


Model NameITD-MNPC-N2830
IP RatingN/A

PC Systems


CPUIntel® Celeron N2830 Dual-Core 2.16GHz Processor
ChipsetIntel® NM70
GraphicsIntel NM70 Express HD Graphics
AudioMIC-IN, LINE-OUT
Memory2GB, up to Max. 8GB
Storage320GB SATA up Max. 1TB; 32GB SSD up to Max. 512GB (MSATA Supported)
Driver SupportWindows CE/XP/7/8/10, Linux,

I/O


Serial Ports6 x COM
USB Ports6 x USB2.0, 2 X USB3.0
HDMI Port1 x HDMI
VGA Port1 x VGA
TF Card Slot1 x TF Card Slot
SD Card Slot1 x SD Card Slot
Mini PCIeN/A
AudioMIC-IN, LINE-OUT
Communication (3G/4G, WIFI)Optional
LAN1 x 10/100/1000Mbps Ethernet
Power Port1 x DC 12V Input (1 x ON/OFF Power Switch)

Power


Power IndicatorGreen LED
Power InputDC 12V
Power ConsumptionTBA

Operation/Mechanical


Operating Temperature-10~60℃
Humidity Range20%~90% (Non Condensing)
Housing MaterialAluminum Die-Casting
Housing Dimension (L × W × H216mm x 200mm x 55mm

Features:


ITD’s industrial embedded box PC computer features silent operation, reliability in hot and humid conditions, powerful performance, and adaptability. ITD’s fanless PCs will exceed your expectations for these, and other, key requirements for your industrial needs. Powered by Intel® processors, our industrial PCs are designed for IoT platform hardware, process control systems, fieldbus uses, transportation automation controls, HD graphic processing and more.

FEATURES

-High Performance & Fanless CPU Core i3/i5/7

-Low Profile Enclosure with Wall-Mount Brackets

-Memory Support up to 16GB (DDR3)

-Supports Various Video Interfaces (VGA, HDMI)

-Rugged Design for Shock/Vibration Protection

-Supports Optional WiFi Connection


Product Display:




Factory:


Quality industrial embedded industrial mini PC Intel J1900 4G RAM 120G SSD Fanless Aluminum casing for sale
