| Categories | Billboard LED Display |
|---|---|
| Brand Name: | BAKOVISION |
| Model Number: | BOF-10 |
| Certification: | CE/LCC/RoHS |
| Place of Origin: | CHINA |
| MOQ: | 1 square meter |
| Price: | $399~999 |
| Payment Terms: | L/C, T/T, MoneyGram,Visa,e-checking,Visa |
| Supply Ability: | 6000㎡/Month |
| Delivery Time: | 20-25days |
| Packaging Details: | Wooden Case or Flight Case |
| Pixel Pitch: | 10mm |
| Pixel Configuration: | SMD 3535 |
| Pixel Density: | 10,000 pixels/m² |
| Module Dimensions (W × H) (mm): | 320 × 320 |
| Contrast Ratio: | 2,000 : 1 |
| Modules Per Panel (W × H): | 4 × 3 |
| Processing: | 16 bit |
| Company Info. |
| LED Vision Technology Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

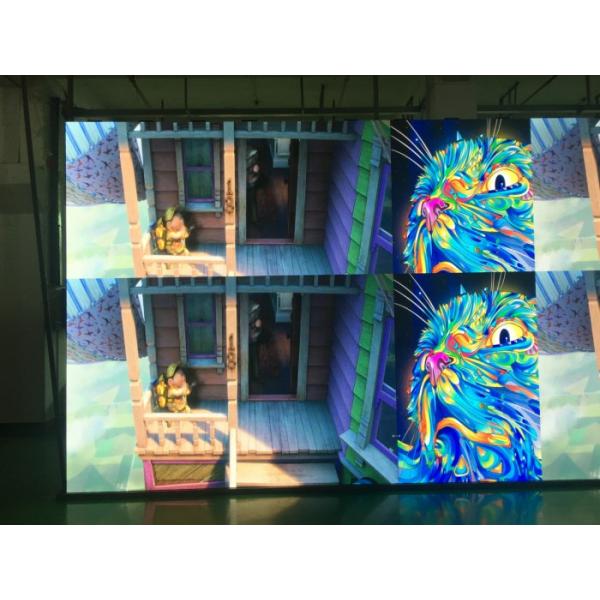

P10mm Outdoor Billboard LED Display,High Brightness Wide Viewing
Angle LED Panel
Application
Stock exchange centers, customs, stadiums, studio, shopping malls,
railways, airports, harbors,high way, commercial advertising,
Stadium perimeter, mobile media, bus station,
schools,telecommunications,entertainment events, business
establishments, such as banks, etc;
Our Services
1. Provides all LED display relative solution, like installation
drawing etc.
2. Have free training about how to use and maintain LED display
with our professional engineer.
3. Provide free spare parts for future urgent need.
4. Technical Support: We could send our engineer to guide the
installation for you. But the relevant cost should be paid by your
esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 18/7 for any
inquiry.
6. All other service request will be considered in BST , please
contact with sales in details.
Technical support:
1. Installation and Maintain Manual
2. LED display system connection diagram
3. Data wire connection diagram
4. Power supply wire connection diagram
5. multi-language software Guidance
Warranty
We provide 2 years warranty. During the warranty time, we provide
free parts for replacement , but we will charge you a productive
cost for the parts when the warranty expires.
| BOF-10 | |
| Physical Pitch | 10 mm |
| Pixel Configuration | SMD 3535 |
| Pixel Density | 10,000 pixels/m² |
| Module Dimensions (W × H) (mm) | 320 × 320 |
| Panel Dimensions (mm) | 1280 × 960 × 187 |
| NO .of Modules Per Panel (W × H) | 4 × 3 |
| Physical Resolution of Module (W × H) | 32 × 32 |
| Physical Resolution of Panel (W × H) | 128 × 96 |
| Panel Material | Steel / Aluminum |
| Weight | 80 kg/unit |
| Processing | 16 bit |
| Colour | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 360 W /panel |
| Max Power Consumption | 900 W /panel |
| Brightness | >6,500 nits |
| Refresh Rate | >1,500 Hz |
| Vertical Viewing angle | 140° |
| Horizontal Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hours |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP65 / IP54 |
| Operating Temp/Humidity | -20℃- 50℃ / 10% - 90% |
| Storage Temp/humidity | -20℃- 50℃ / 10% - 90% |
|
