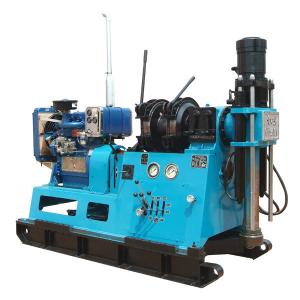

High Performance Core Drill Rig Small Diamond For Shallow Hole


High Performance Core Drill Rig Small Diamond For Shallow Hole


Description:


XZ -300A is a core drilling rig for middle and shallow hole. It applies not only to alloy and diamond core drilling with different calibres but also can be used for geological prospecting works, drilling of fluid mineral in superficial layer and shot holes and ventilation holes drilling, drilling on hydrology, water wells and big calibres. It has been widely used on areas such as road and railway construction, water resources and hydropower and architecture.


Basic Data:


Drilling Dia93mm 150mm 200mm 300mm
Drilling Depth350m 280m 220m 120m
Swive Head

Spindle Speed (r/min)

Forward58 101 160 221 234 406 640
Reverse46 183
Maximum Torque3000N*m
Spindle Stroke600mm
Maximum Cylinder lifting force60KN
Maximum Cylinder driving force45KN
Hoist
BobbinDiameter200mm
Rope Diameter14mm
Rope Capacity(5 floor)45m
Lifting Capacity(single pipe)30KN
Bobbin linespeed (the second layer)0.45 0.785 1.24 1.71m/s
Mobile Oil Cylinder Stroke460mm
Distance of Step Aside The Hole260mm
Oil Pump
NameWheel oil pump
TypeCB-E25
Displacement25mL/min
Normal Rated Speed1500 r/min
Normal Pressure16MPa
Maximum Pressure20MPa
PowerDiesel EngineMotor
Type395K2Y180L-4
Rated Power20KW22KW
Rated Speed1500r/min1470r/min
Dimensions2510*950*1820mm
Weight(power not incluced)1300kg
