The YVO050FHD-C01 is a 5.0-inch round LCD display module designed for both industrial and consumer scenarios. With a high resolution of 1080(RGB)×1080 pixels, it delivers sharp, detailed visuals, making it ideal for devices requiring clear image output. Driven by the HX8399-C driver IC and supporting the MIPI 4lane interface, the module ensures high-speed, stable data transmission, meeting the response needs of complex display applications.

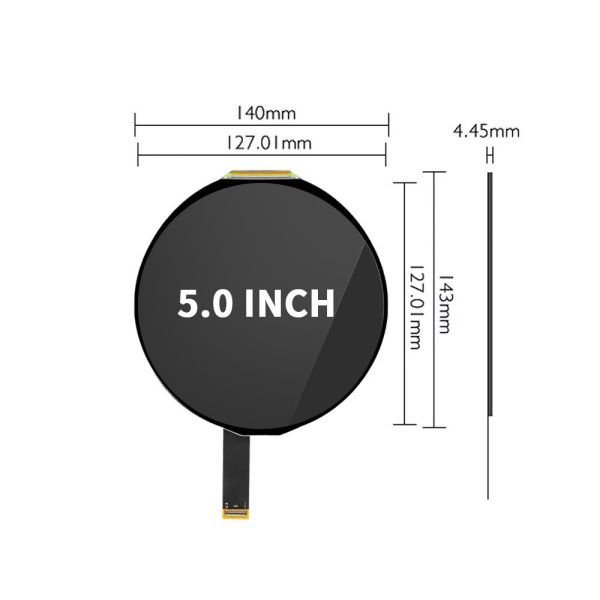

The module features an outline dimension of 132.21(H)×136.53(V)×2.13(D) mm and an active display area (LCD AA) of 127.01×127.01 mm, with a compact thickness that enables seamless integration into space-constrained devices (e.g., smart wearables, industrial control panels, circular smart home displays). Equipped with an IPS-like wide viewing angle panel, it maintains consistent color and brightness from all viewing directions, while 16.7M color support ensures vivid, true-to-life imagery.
It adopts a white LED backlight and operates stably in a temperature range of -20℃ to +70℃ (storage temperature: -30℃ to +80℃), adapting to harsh environments such as outdoor industrial sites or low-temperature indoor scenarios. Optional capacitive touch functionality (with customizable touch IC) further expands its application scope.
| Product | 5.0 inch Round LCD | Module Number | YVO050FHD-C01 |
|---|---|---|---|
| Resolution | 1080*1080 | Touch | With/Without touch (Optional) |
| Brightness | 350 nits | Outline Dimensions | 132.21(H)*136.53(V)*2.13(D) mm |
| Viewing Direction | All (IPS) | Active Area | 127.01x127.01 mm |
| Interface | MIPI | Connector Type | 0.5 Pitch 50 Pin |
| Driver IC | HX8399-C | Operating Temp. | -20 ~ +70 °C |
Colors | 16.7M | Storage Temp. | -30 ~ +80 °C |
| Highlight | 5.0-inch round LCD, 1080×1080 resolution, HX8399-C driver, MIPI interface | ||
Power Supply: The module supports dual power supplies — analog supply voltage (VCI) and digital supply voltage (IOVCC), both with a range of 1.65V ~ 3.3V (typical 1.8V), ensuring stable power input and reducing power consumption.
Backlight Performance: The white LED backlight has a typical forward current of 20mA and a typical forward voltage of 37.2V; the typical backlight power consumption is 744mW, and the service life reaches 20,000 hours (when brightness decays to 50% of the initial value), suitable for long-term continuous operation.
Optical Performance: It has excellent optical indicators — contrast ratio (CR) of 800 ~ 1300 (at 0° viewing angle), response time (T_ON + T_OFF) maximum 40ms (at 25℃), brightness uniformity (U) typical 82%, NTSC color gamut typical 70%, and luminance (L) typical 350 CD/m²; the viewing angles (θT/θB/θL/θR) are all typical 80° (at CR ≥ 10), ensuring no color distortion from any direction.
| PIN | Symbol | Description |
|---|---|---|
| 1-2 | GND | Ground |
| 3 | D2P | Disp MIPI lane 2+ |
| 4 | LEDK | LED cathode |
| 5 | D2N | Disp MIPI lane 2- |
| 6 | LEDK | LED cathode |
| 7-8 | GND | Ground |
| 9 | D1P | Disp MIPI lane 1+ |
| 10 | LEDA | LED Anode |
| 11 | D1N | Disp MIPI lane 1- |
| 12 | LEDA | LED Anode |
| 13-14 | GND | Ground |
| 15 | CLKP | Disp MIPI CLK + |
| 16 | ID PIN1 | ID pu to 1.8V (XC) |
| 17 | CLKN | Disp MIPI CLK - |
| 18 | ID PIN2 | ID pd to GND (XC) |
| 19-20 | GND | Ground |
| 21 | D0P | Disp MIPI lane 0+ |
| 22 | IOVCC | Disp digital power |
| 23 | D0N | Disp MIPI lane 0- |
| 24 | IOVCC | Disp digital power |
| 25-26 | GND | Ground |
| 27 | D3P | Disp MIPI lane 3+ |
| 28 | NC | NC |
| 29 | D3N | Disp MIPI lane 3- |
| 31 | GND | Ground |
| 32 | VDDI(-5) | Display -5V analog rail |
| 33-35 | NC | NC |
| 36 | VDDI(+5) | Display +5V analog rail |
| 37 | GND | Ground |
| 38 | VDDI(+5) | Display +5V analog rail |
| 39-41 | NC | NC |
| 42 | GND | Ground |
| 43 | NC | NC |
| 44 | LEDPWM | Backlight pwm output |
| 45 | NC | NC |
| 46 | TE | Disp tearing effect out |
| 47 | GND | Ground |
| 48 | RESET | RESET PIN |
| 49-50 | GND | Ground |
The YVO050FHD - C01 exhibits strong environmental adaptability. It has an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C, enabling it to be suitable for a wide variety of application scenarios. It successfully undergoes rigorous reliability tests: 96 hours of high - temperature (80°C) storage, 96 hours of low - temperature (-30°C) storage, 96 hours of high - temperature (70°C) operation, 96 hours of low - temperature (-20°C) operation, 96 hours of operation under 60°C / 90% humidity (with no condensation), 10 thermal shock cycles between -20°C and 70°C (each cycle including 30 minutes at -20°C, 5 minutes of transition, and 30 minutes at 70°C), and ESD tests with a voltage of ±4kV (using a 150pF capacitor and 330Ω resistor for air discharge, 10 times). After these tests, when the product is stored at room temperature for 4 hours, it should be free from defects like air bubbles in the LCD, seal leaks, non - display segments, missing segments, glass cracks, and a current IDD that is twice the initial value.
The YVO050FHD - C01 offers multiple customization options to meet diverse application needs:
FPC Design: Flexible layout and connector type can be adjusted to fit system requirements.
Cover Glass: Size, thickness, shape, and surface printing (logo, pattern) can be customized.
Brightness: Adjustable from 200–1000 nits for indoor or outdoor use.
Touch Options: With or without capacitive touch, customized driver IC available.
Surface Treatment: AF (Anti-Fingerprint), AG (Anti-Glare), or tempered glass for durability.
|
