| Categories | Cutter Suction Dredger |
|---|---|
| Place of Origin: | shandong china |
| Brand Name: | KeDa |
| Model Number: | CSD150；CSD200;CSD250;CSD300;CSD400;CSD450 |
| Price: | $168,000/sets |
| Certification: | CE 9001 |
| MOQ: | 1 |
| Delivery Time: | 30 |
| Video outgoing-inspection: | Provided |
| Machinery Test Report: | Provided |
| Core Components: | Engine, Pump |
| Type: | Cutter Suction Dredger |
| Power Type: | Diesel, Diesel |
| Dredging Depth: | 10 m |
| Draught: | 0.85m-15m |
| Dimension(L*W*H): | 12.5*4.6*1.3 |
| Weight: | 40 KG |
| Warranty: | 1 year warranty |
| Usage: | Dredging of Sand |
| Standard dredging depth: | 6-15m |
| Cutter head: | 1 stage |
| Diameter: | 850-30 |
| Pump model: | 8/6 inch |
| Ladder winches: | JC-3000 |
| Swing winch: | JC-3000 |
| Application: | River |
| Hull Material: | Steel |
| Width: | 4-15m |
| Colour: | customized |
| Company Info. |
| Qingzhou Keda Mining Machine co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
1)Reliable hydraulic system with self-protection, high efficiency
and low cost.
2)Simple, rapid assembly and dismantling, a good underwater
dredging machine.
3)We can produce 4"inch to 20"inch dredgers with max. dredging
depth 20m. The dredger can be customized.
4)Has passed ISO9001 & The Certification of the Survey.
5)Adapt submerged arc welding technology, strong stability and beautiful in design.
6) Special marine steel plate, strong & durable.
7) Pump & gear box combined together, reduce the maintenance.
Basic parameter
| KDCSD100 | KDCSD150 | KDCSD200 | KDCSD250 | KDCSD300 | KDCSD350 | KDCSD450 | |
| Water Flow(m3/hour) | 280 | 450 | 800 | 1200 | 1800 | 2500 | 3500 |
| Length(m) | 19 | 22 | 26 | 33 | 35 | 39 | 41 |
| Width(m) | 3.5 | 4 | 5.3 | 6.6 | 6.6 | 7 | 8 |
| Height(m) | 1 | 1.25 | 1.5 | 1.8 | 1.8 | 2 | 2.5 |
| Max. Dredging Depth(m) | 8 | 10 | 12 | 15 | 15 | 17 | 17 |
| Suction Diameter(mm) | 150 | 200 | 250 | 300 | 400 | 450 | 650 |
| Discharge Diameter(mm) | 100 | 150 | 200 | 250 | 300 | 350 | 450 |
| Total Power(kw) | 132 | 220 | 336 | 460 | 670 | 895 | 1166 |
| Cutter Head Diameter(mm) | 650 | 850 | 950 | 1200 | 1200 | 1500 | 1700 |
| Discharge Distance(m) | 400 | 500 | 800 | 1000 | 1200 | 1500 | 1800 |
Detailed Pictures

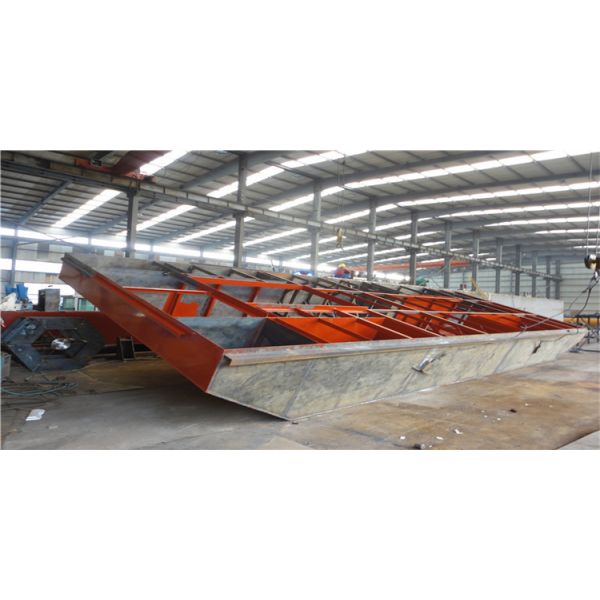

Ship Body Under-building

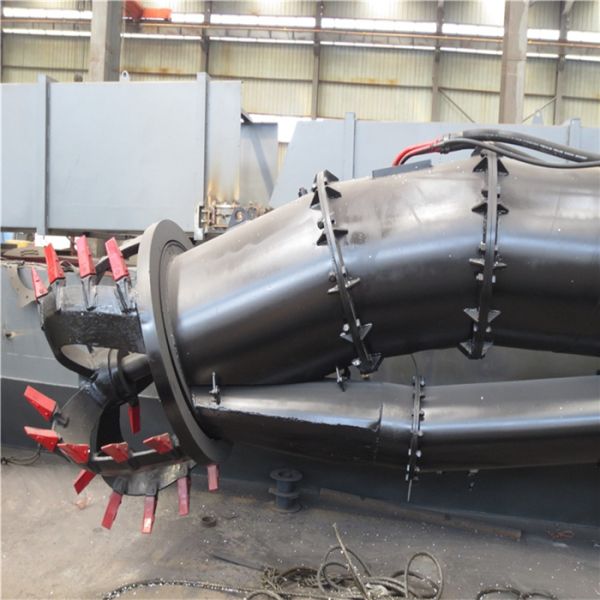

cutter head
Pumps and Engine
 |  |
 |  |
1)Dredging project consulting will be provided by our experienced
engineers.
2)Dispatching engineers overseas guidance for equipments
installation and testing.
3)Training your local first batch workers.
4)Solving the problems during the equipment operation.
5)Providing whole production line equipments and spare parts with
the best price.
We are a modern large-scale mineral processing equipment
manufacturer devoting ourselves to gold mining, sand pumping, and
desilting with long time exploring and R &D experience.
All of products have been certified by ISO9001 and many of them
have been exported to more than fifteen countries and regions such
as Fiji, Ghana, Mali, Colombia, Nigeria, Sierra Leone, Papua New
Guinea, Bangladesh, Sultan, Korea, USA, Russia, India and so on.
1.Is our company a direct or indirect producer? — Our company is a direct producer.
2. What's the main product of our company? — Our main product is
Cutter Suction Dredger
3. Are our products certified or patented? — Yes, we only provide
certified products.
4. Can we offer good after sales service? — Yes, the warranty of
all our products is one year and all spare parts will be provided
fast and cheap forever.
|
