High-Performance Silent Configuration for Uninterrupted Stable
Operation
The device comes standard with a low-power, fanless industrial
motherboard and an Intel multi-core processor, balancing robust
computing power with energy efficiency and quiet operation. It
maintains high stability even in heavy-load scenarios requiring
7×24 continuous operation.
Whether for data acquisition, control and dispatch, or
human-machine interaction, it handles tasks efficiently.
Fully Sealed Design to Reject Interference
Utilizing an upgraded fully sealed aluminum plate cooling
structure, the fanless design delivers a "zero-noise" operation
experience, making it suitable for environments with strict noise
control requirements such as medical facilities and laboratories.
Simultaneously, the device offers anti-light interference,
anti-signal interference, and electromagnetic interference
protection, allowing safe deployment in harsh scenarios with
complex electromagnetic conditions and high dust levels.
High-Standard Craftsmanship for Reliability and Durability
The body is constructed from cold-rolled metal sheet material,
providing a sturdy and pressure-resistant housing. Multi-row heat
dissipation hole layouts ensure rapid cooling even in
high-temperature environments, safeguarding the stability and
lifespan of internal components.
The embedded structural design allows tight integration into
various cabinets and equipment housings, saving space and enhancing
overall coherence.
Whether in industrial automation, equipment control, intelligent
terminals, human-machine interfaces, or specialized scenarios with
stringent requirements for noise and electromagnetic interference
control, the Embedded Panel Mount Monitor delivers stable, quiet,
and long-lasting performance, serving as a solid partner on the
path to industrial intelligence.

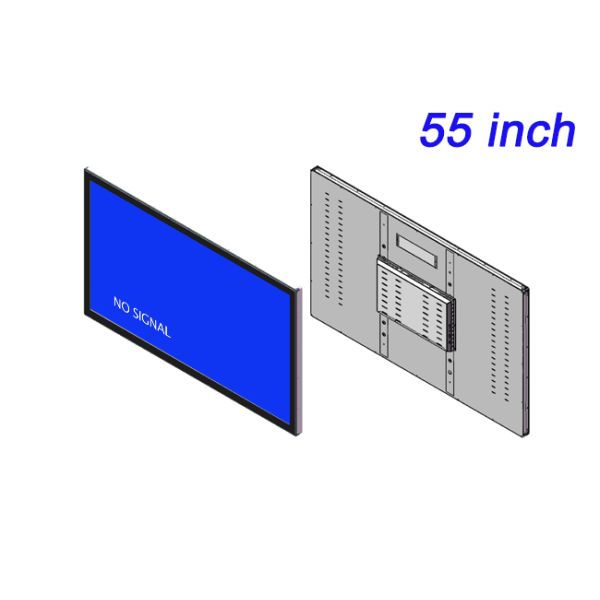

| 55-Inch Embedded Display Specification Document |
| LCD Panel Parameters | Screen Size | 55 Inch |
| Display Area | 1209.6 mm.(Height) X 680.4 (Width)mm. |
| Aspect Ratio | 16 : 9 | 16 : 9 |
| LCD Type | a-Si TFT-LCD Monitor | a-Si TFT-LCD Monitor |
| Maximum Resolution | 1920 X 1080 | 3840 X 2160 |
| Display Color | 16.7m , 72% NTSC | 1.06B, 74% NTSC |
| Brightness | 300cd/m² | 400cd/m² |
| Contrast Ratio | 1200 : 1 | 1000 :1 |
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | 89°/89°/89°/89°(Type)(CR≥10) |
| Response Time | 8ms | 6ms |
| LCD Panel Lifespan (Hours) | 60,000(Hour.) |
| Field Frequency | 60Hertz |
Audio Parameters
(External Speaker Option) | Audio system | Stereo |
| Speaker size | ≈ 99 x 45 x 20 mm |
| Impedance | 8 Ohm |
| Power | 2 x 5 Watt |
| Loudness | > 80 Decibel |
| Interface | 4-pin connector |
| Onboard Interface | HDMI Input | 1 |
| VGA Input | 1 |
| DVI Input | 1 |
| USB Type B or any desired USB Type | 1 |
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz |
| Maximum Power Loss | ≤ 90 Watt |
| Standby Mode Power Loss | < 1 Watt |
| Features | Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | Below 10℃ ~ +60℃ |
| Accessories | Power Cord Length | 1.5m |
| HDMI Cable Length | 2m |
| USB-A to USB-B Cable Length | 1.5m |
| Stereo Speaker Size with Connector | 99*45*20mm |
| Stereo Speaker Length | 1.5m |
| Package Size | Device Dimensions | 1287 X 769 X 68.4 mm. |
| Net Weight | 32 Kilogram |
| Package Size | 137.8 X 20.0 X 89.4Centimeter |
| Gross Package Weight per Unit | 35 Kilogram |
