Aluminum Armored Direct Buried Fiber Optic Cable GYTA53 Outdoor Underground

Categories	Underground Fiber Optic Cable
Brand Name:	JQ/OEM/Customize
Model Number:	GYTA53
Certification:	ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin:	Guangzhou,China
MOQ:	1km
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	4500KM Per Month
Delivery Time:	5-8 work days
Packaging Details:	wooden drum
Fiber type:	G652D Single mode or as your request
Color:	Black or orange or Customized
Jacket:	PE,MDPE,LSZH,PVC,HDPE
Fiber count:	2-288cores
Product name:	Stranded loose tube armored cable
Installation:	Aerial & Duct
Type:	Singlemode &Multimode
Name:	Outdoor armor fiber optic cable

Contact Now

Add to Cart

Company Info.

Guangzhou Jiqian Fiber Optic Cable Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

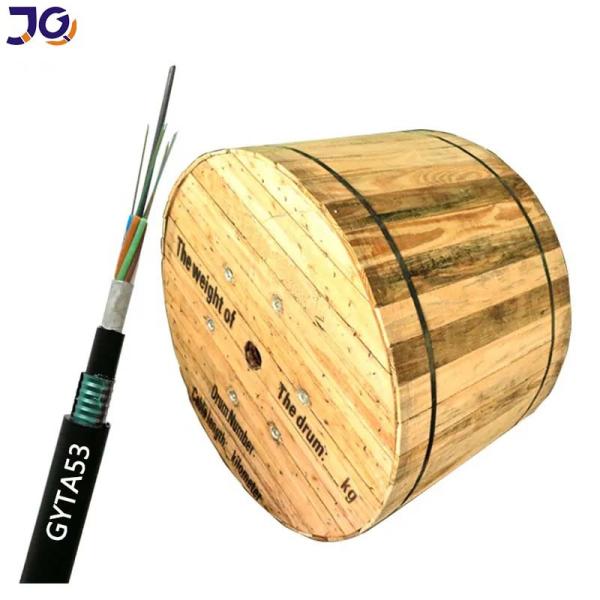

Aluminum Armored Direct Buried Fiber Optic Cable GYTA53 Outdoor Underground

Double Jacket Armored Direct Buried Fiber Optic Cable GYTA53 GYTS53

GYTA53 aluminum armored fiber optic cable is designed for underground duct and direct burial applications. 250µm fibers are placed in high-modulus loose tubes filled with water-blocking compound. Tubes are stranded around a central steel wire strength member to form a compact core. An APL moisture barrier and PSP armor provide excellent water and mechanical protection. The cable is finished with PE inner and outer jackets for long-term outdoor durability.

Features

Excellent mechanical and temperature performance
High-strength, water-resistant loose tube design
Special gel filling provides reliable fiber protection
Compact structure prevents cable shrinkage
UV-resistant PE jacket ensures long-term waterproofing
Central steel wire strength member
Full core filling with APL moisture barrier

Application

Suitable for direct burial installation

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Parameters

GYTA53( Aluminium polyethylene laminate)

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Allowable Tensile Load (N)		Allowable Crush Resistance (N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Short Term	Long Term	Short Term	Long Term
2~30	13.2	162	3000	1000	3000	1000
32~48	13.8	175	3000	1000	3000	1000
50~72	14.6	205	3000	1000	3000	1000
74~96	16.0	230	3000	1000	3000	1000
98~144	17.6	285	3000	1000	3000	1000
＞144	Avaliable upon customer's request

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information
