Product Details
Company Profile

Automatic Roller Wheel Swing Gate Operator with Remote Control Range ≥30 m and Gate Moving Speed 18-22 S/90° for Work Temperature -40°C~55°C

Made In China Automatic Roller Wheel Ground Level Swing Door Motor

Rubber Wheel Roller Soft Start Slow Stop Automatic DC Motor Swing Gate Operator

This automatic roller wheel swing gate opener is engineered for smooth, quiet operation with soft start and slow stop functionality. Capable of handling gates up to 400kg per leaf at 1.75rpm, it delivers reliable performance with a remote control range of ≥30m. The system supports multiple interfaces including alarm lamps and safety beams, ensuring both convenience and security. Equipped with manual key release for emergency situations and designed to operate in temperatures from -40℃ to +55℃, this gate operator performs reliably in diverse environmental conditions.

Main Functions and Features

PK600GL Roller Wheel Swing Gate Automation Kit supports gates up to 600kg in weight and 4m in length
Gate motion achieved through rotating gear mechanism
Must be installed within private property boundaries
Requires properly installed and smoothly operating swing gate
Specific clearance requirements when used with electronic lock (15-20mm)
Requires RCD protected weatherproof power outlet
Control box must be installed above 1.5m from ground
Post-installation verification of mechanical functionality required

Cable Installation

To ensure normal operation and protect cables from damage, use separate PVC pipes for motor/power cables and control cables.

Technical Specifications

Unit Model	PK600GL
Power Supply	AC220V/50Hz; AC110V/60Hz
Maximum Gate Weight	600kg per leaf
Motor Power	40W each leaf
Driving Method	Linkage
Limit Switch	No limit switch
Max Speed	1.75rpm
Max.Single-Leaf Length	4 meters
Operating Cycle	15 second per 90° (approx.)
Remote Control Range	≥30m
Recording of Up Remotes	32
Frequency	433.92MHz
Work Duty	S2 30min
Working Temperature	-20℃~+50℃
Package Weight	18kg

Advanced Features

Supports installation of 2 openers or 1 opener with single control box
Ground wheels for stopping against ground stops
30-second travel time protection
Optional auto-close function
Soft start and slow stop for smooth, quiet operation
Automatic remote control learning
Keypad/single button interface
Alarm lamp, photo beam & safety beam interface
Available with articulated arm or sliding arm
Manual key release for emergencies

Standard Unit Includes

2 gate motors
Control board & box
2 remote controls
Manual release key
User manual
Bolts & nuts

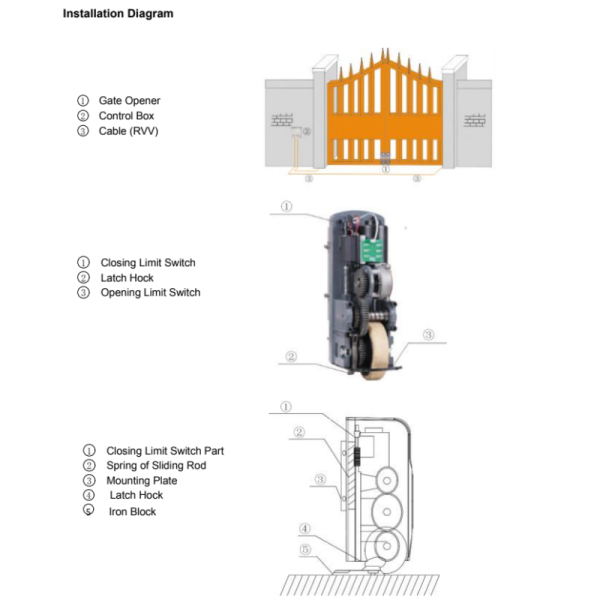

Automatic roller wheel swing gate operator installation and components
