LSZH Low Smoke Zero Halogen Cable Flame Retardant V0 Grade For Safe Power Supply

Categories LSZH Cable
Brand Name: Minfeng
Model Number: WDZ-YJY
Certification: ISO,CE,IEC,TUV,KEMA
Place of Origin: Hebei, China
MOQ: 100
Price: 0.1-5
Payment Terms: L/C,T/T
Supply Ability: 100KM/Week
Delivery Time: 10 Days
Color: Black
Available Sizes: Various sizes available
Conductor Size: as required
Application: Indoor wiring, public buildings, transportation
Chemical Resistant: Resists Damage From Industrial Chemicals
Flame retardant: Yes
Cable Type: Low Smoke Zero Halogen
High Conductivity: Optimal Power Transmission Efficiency
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

LSZH Low Smoke Zero Halogen Cable Flame Retardant V0 Grade For Safe Power Supply

Fire-Resistant WDZBN-YJY Cable for Subway Tunnel Emergency Power Supply

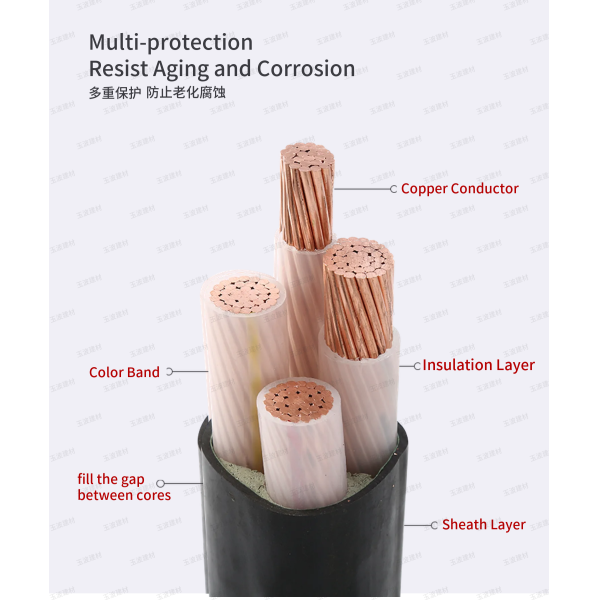

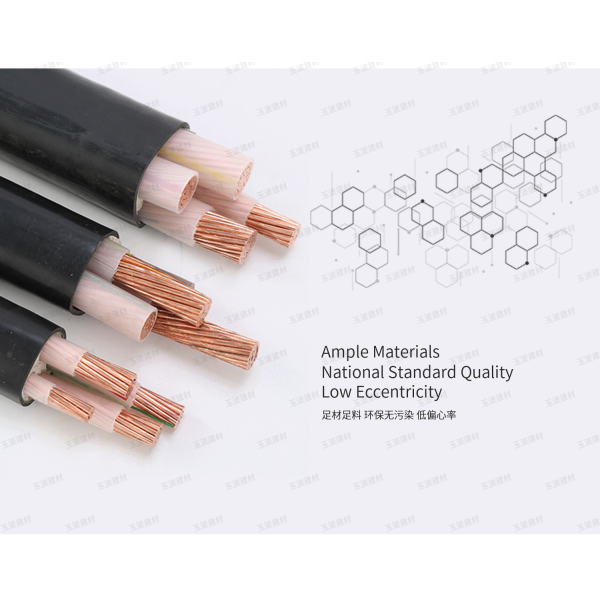

Fire-resistant cable product overview Cable technical specifications diagram
ATTRIBUTEDETAILS
Product NameFlame-Retardant Copper Core Cable
Core MaterialHigh-purity copper, excellent electrical conductivity, low resistance
Insulation MaterialFlame-retardant PVC/XLPE, meets GB flame-retardant standards, low smoke and non-toxic
CertificationISO 9001 Quality Management System Certification, ISO 45001 Occupational Health and Safety Management System Certification, MA Mine Product Safety Certification, CCC Certification
Flame-Retardant GradeConforms to GB/T 18380 standard, flame-retardant grade V0, self-extinguishing within 10 seconds after fire source removal
Environmental PerformanceRoHS compliant, non-toxic, no harmful heavy metals, environmentally friendly and pollution-free
EccentricityLow eccentricity (≤0.05), ensuring uniform insulation thickness and stable product performance
Applicable Temperature Range-40℃ ~ 90℃, adaptable to various harsh environmental conditions
Cable Specifications & Applications
CROSS-SECTIONAL AREA (mm²)CORE NUMBER COMBINATIONAPPLICABLE SCENARIOS
1.52*1.5/3*1.5/4*1.5/5*1.5Indoor lighting, small household appliances wiring
2.52*2.5/3*2.5/4*2.5/5*2.5/3*2.5+1*1.5Household power sockets, low-power industrial equipment
42*4/3*4/4*4/5*4/3*4+1*2.5Medium-power electrical equipment, residential power distribution
62*6/3*6/4*6/5*6/3*6+1*4/3*6+2*4Commercial building power distribution, small motors
102*10/3*10/4*10/5*10/3*10+1*6/3*10+2*6/4*10+1*6Industrial machinery, medium-voltage power transmission
162*16/3*16/4*16/5*16/3*16+1*10/3*16+2*10/4*16+1*10Factory power lines, large air conditioners
252*25/3*25/4*25/5*25/3*25+1*16/3*25+2*16/4*25+1*16High-power motors, high-rise building main power lines
352*35/3/35/4*35/5*35/3*35+1*16/3*35+2*16/4*35+1*16Heavy industrial equipment, long-distance power transmission
503*50/4*50/3*50+1*25/3*50+2*25/4*50+1*25Mining equipment, large-scale power stations
703*70/4*70/3*70+1*35/3*70+2*35/4*70+1*35High-voltage power distribution systems, industrial workshops
953*95/4*95/3*95+1*50/3*95+2*50/4*95+1*50Large-scale factories, power grid branch lines
1203*120/4*120/3*120+1*70/3*120+2*70/4*120+1*70Regional power distribution, heavy-duty electrical facilities
1503*150/4*150/3*150+1*70/3*150+2*70/4*150+1*70Urban power grid, large industrial parks
1853*185/4*185/3*185+1*95/3*185+2*95/4*185+1*95High-power transmission lines, key energy projects
2403*240/4*240/3*240+1*120/3*240+2*120/4*240+1*120Ultra-large industrial equipment, power plant main lines
3004*300/3*300+1*150/3*300+2*150/4*300+1*150Cross-city power transmission, large-scale energy stations
4004*400/3*400+1National power grid trunk lines, super-large power projects

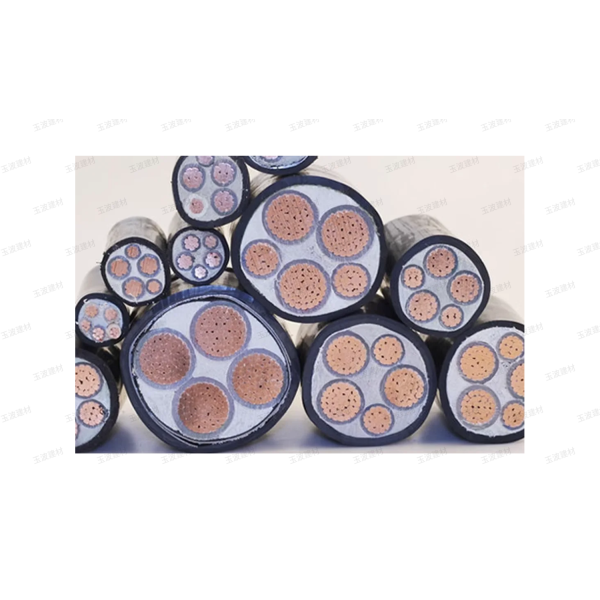

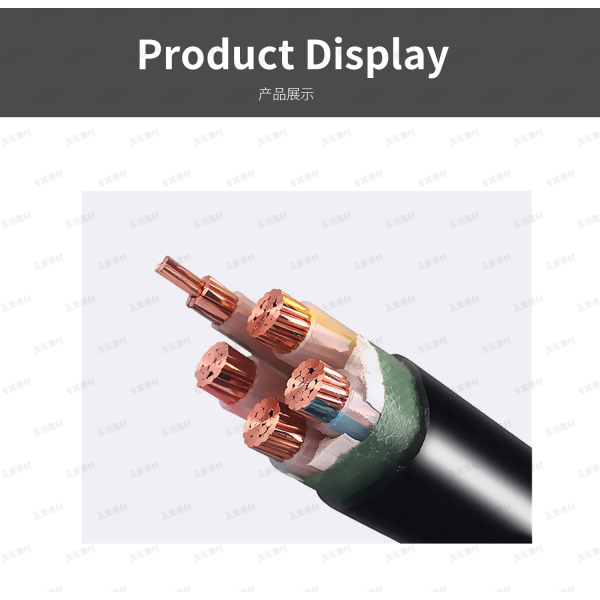

Quality compliance certification Quality testing process
Strict Quality Compliance

Our cables fully comply with Chinese National Standards (GB) and international quality requirements. The copper core adopts high-purity electrolytic copper, with a conductivity rate of ≥98%, ensuring stable current transmission and reducing energy loss. The insulation layer is made of high-quality flame-retardant materials, passing strict fire resistance tests to effectively prevent fire spread and ensure safe use.

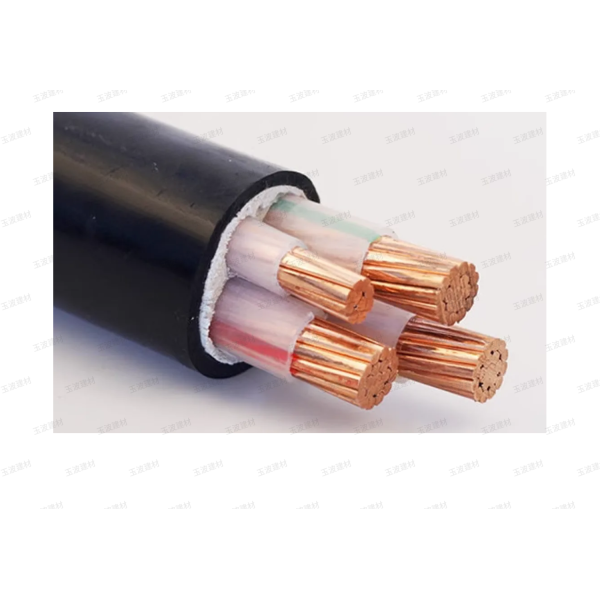

Environmental protection certification Material quality assurance
Sufficient Materials & Environmental Protection

We adhere to the principle of "sufficient materials and no cutting corners". The insulation thickness and copper core cross-sectional area fully meet or exceed the standard requirements, avoiding safety hazards caused by insufficient materials. At the same time, the product is RoHS certified, free of lead, mercury, and other harmful substances, making it environmentally friendly and suitable for green building and high environmental protection requirement projects.

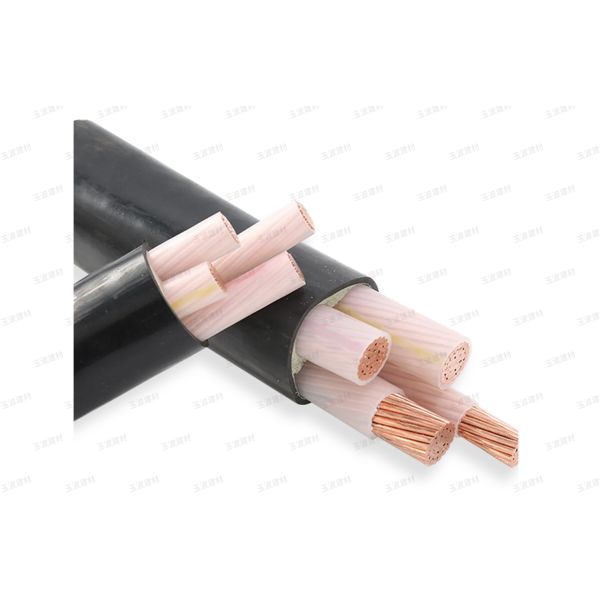

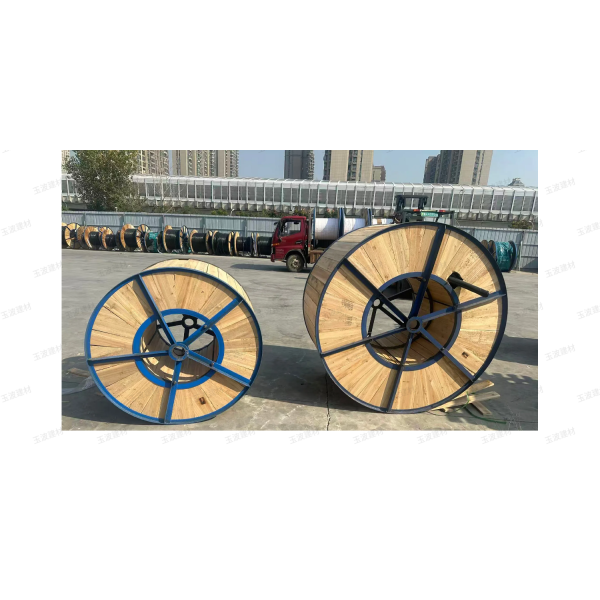

Low eccentricity technology Performance stability testing
Low Eccentricity & Stable Performance

The cable production process adopts advanced extrusion technology, with an eccentricity of ≤0.05. The uniform insulation thickness ensures that the cable has good electrical insulation performance and mechanical strength, reducing the risk of breakdown due to uneven insulation. It can maintain stable performance in long-term use, suitable for harsh working environments such as high temperature, humidity, and vibration.

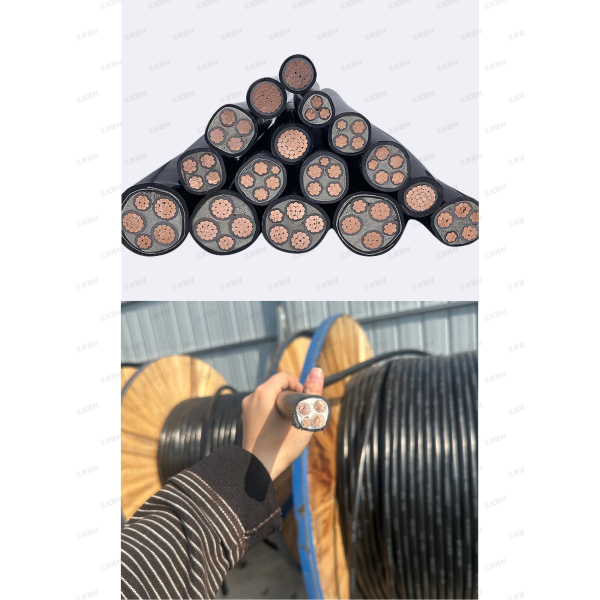

Complete certification portfolio
Complete Certifications & Reliable Quality

The product has obtained multiple authoritative certifications, including ISO 9001 Quality Management System Certification, ISO 45001 Occupational Health and Safety Management System Certification, MA Mine Product Safety Certification, and CCC Certification. Each batch of products undergoes strict quality inspection before leaving the factory, with complete inspection reports to ensure that customers can use it with confidence.

Application Scenarios

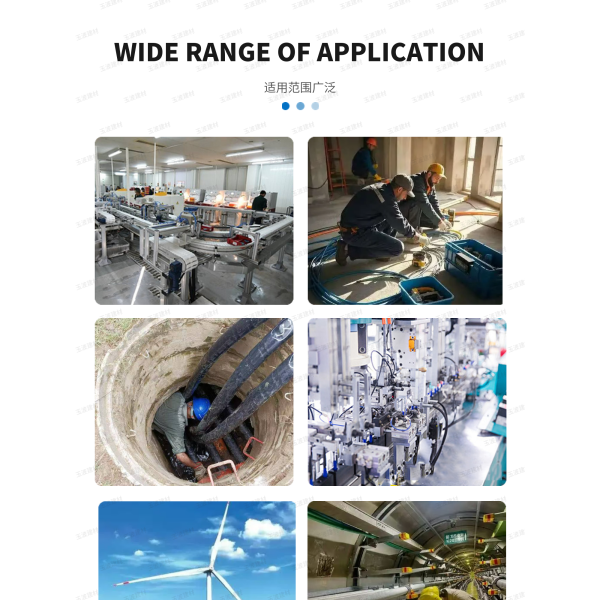

Cable application scenarios overview
  • Industrial Field: Suitable for power supply of industrial machinery, motors, workshops, with strong resistance to wear and harsh environment adaptation
  • Building Field: Used for power distribution in residential buildings, commercial buildings, and high-rise buildings, as well as wiring for lighting, sockets, and air conditioners, meeting the fire safety requirements of buildings
  • Mining Field: With MA Mine Product Safety Certification, applicable to power transmission and equipment connection in mines, with good flame retardancy and anti-corrosion performance
  • Power System Field: Used for power transmission and distribution in power stations, substations, and power grids, suitable for medium and high voltage power transmission scenarios
  • Special Scenarios: Applicable to DC combiner rooms, communication base stations, and other places with high requirements for cable safety and stability

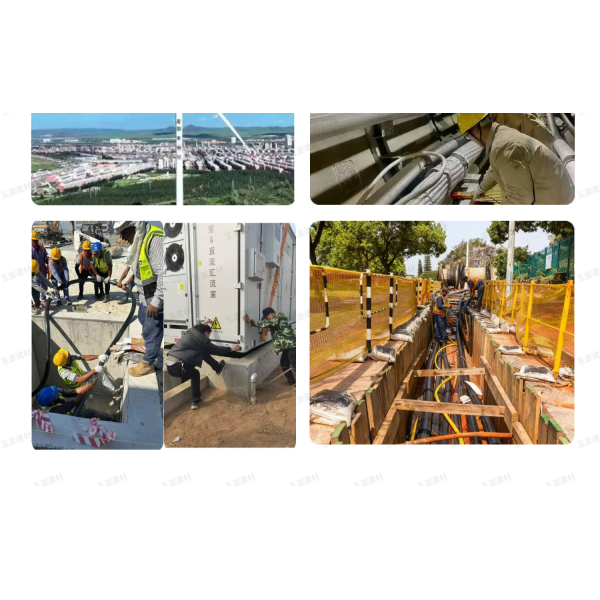

Special application scenarios
Technical Specifications
Rated Voltage 0.6 kV, 1 kV
Size 33*10+2*6, 3*16+2*10, 3*25+2*16, 3*35+2*16, 3*50+2*25, 3*70+2*35, 3*95+2*50, 3*185+2*95
Conductor Material Copper
Insulation Material XLPE
Working Temperature -25°C ~ 70°C
Jacket LSZH
IP Level IP54
Application Building, Construction, Industrial, Marine, Mining, Photovoltaic Power, Power Distribution, Power Station, Railway, Underground
Rated Current 10A, 16 A, 20A, 25 A, 30 A, 40 A, 50 A, 60 A
Type Low Voltage
Place of Origin Hebei, China
Model Number WDZB-YJY WDZBN-YJY WDZ-YJY
Brand Name Minfeng
Quality LSZH Low Smoke Zero Halogen Cable Flame Retardant V0 Grade For Safe Power Supply for sale
