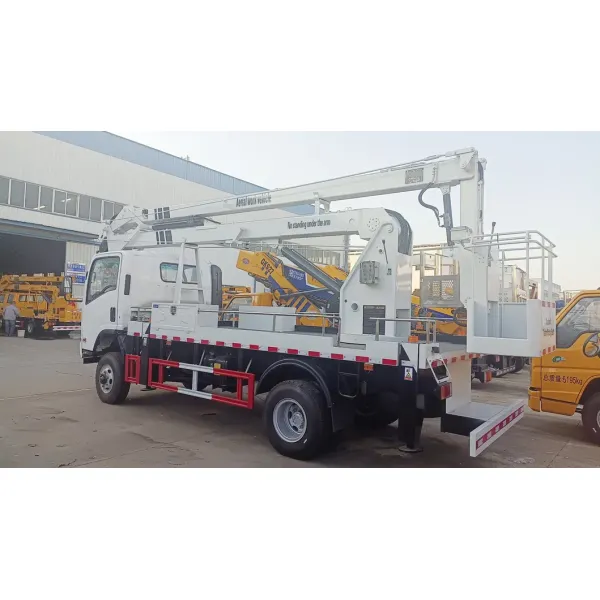

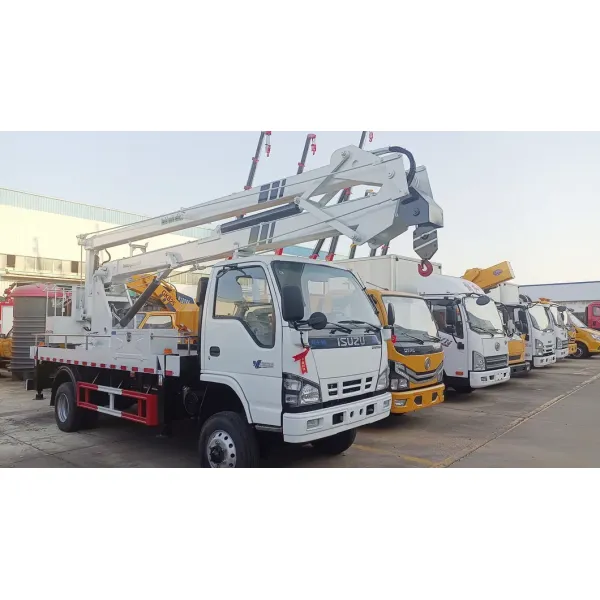

| Categories | Aerial Platform Truck |
|---|---|
| Model NO.: | CL5080JGK6 |
| Type: | Self-propelled |
| Certification: | ISO9001 |
| Emission Standard: | Euro 4 |
| Hoesrpower: | 190HP |
| Payload: | 10550kg |
| Fuel: | Diesel |
| Transmission Type: | Manual |
| Drive Wheel: | 4x2 |
| Condition: | New |
| Homework Height: | 28m |
| Size of Work Basket: | 1600X700X1000mm |
| Work Platform Load Capacity: | 200kg |
| Main Arm Rotation Angle: | 360 |
| Hydraulic Support Leg: | 4 |
| Operating System: | Can Wireless Remote Control |
| Video Display: | 5-Inch Display Screen |
| Vehicle Size: | 8060X2480X3200mm |
| Transport Package: | Road Transportation and Sea Transportation |
| Specification: | 8060X2480X3200mm |
| Trademark: | Cheng Liwei brand |
| Origin: | Suizhou |
| HS Code: | 8705909990 |
| Production Capacity: | 2000 |
| MOQ: | 1 |
| Price: | US $20,000-30,000 |
| Place of Origin: | CHINA |
| Packaging Details: | Nuked |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T,LC, |
| Supply Ability: | 150 sets/month |
| Company Info. |
| Chengli Special Automobile Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

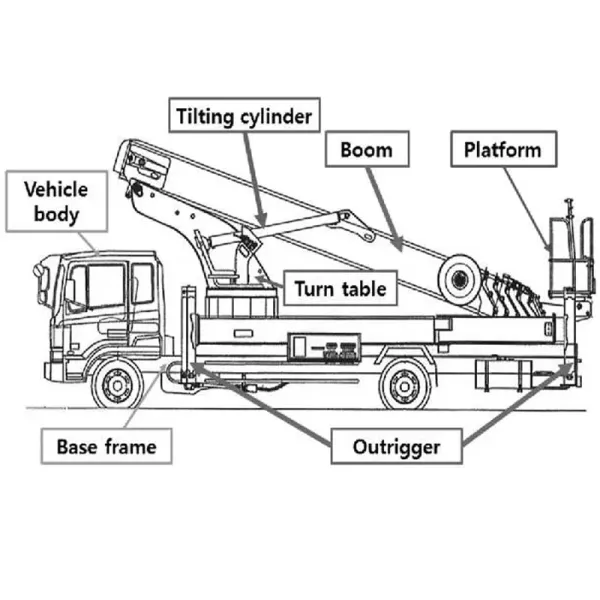

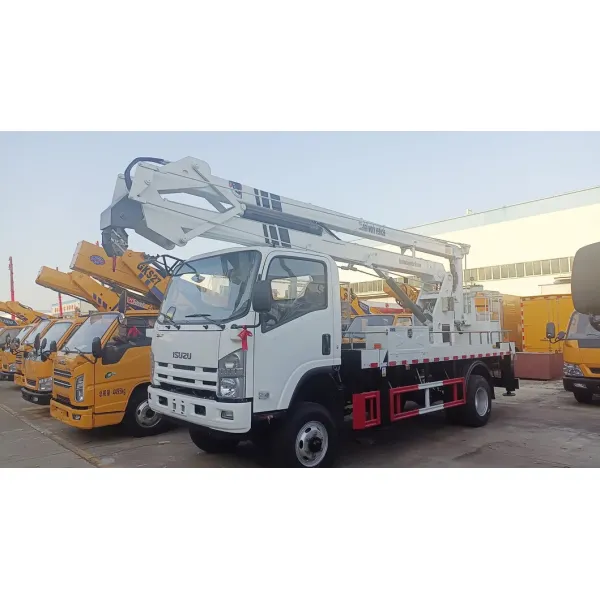

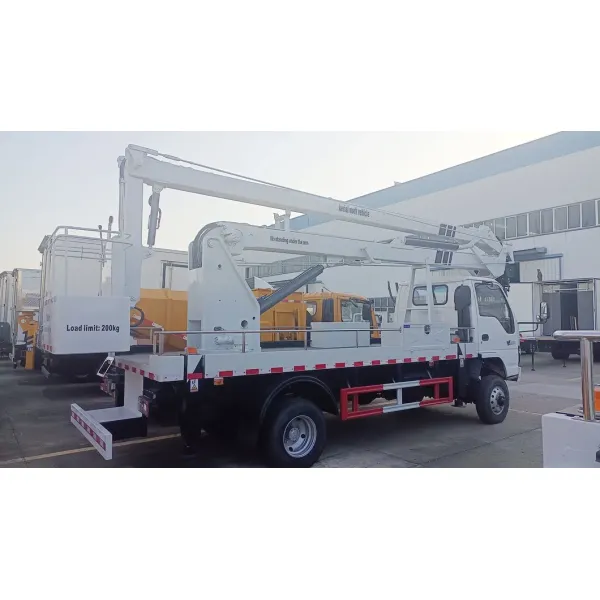

Basic parameters of the whole vehicle:| order number | name | Model and specification |
| 1 | Vehicle brand | Cheng Liwei brand-aerial work car |
| 2 | product model | CL5080JGK6 |
| 3 | Chassis model | QL1080BUKAY |
| 4 | Work height | 26 Meters |
5 | Main technical parameters of the operation | The platform is located at 26 m above the ground height The maximum operating range of the platform is 13m The maximum operating height of the platform is 2m the maximum operating height is 6m the maximum working inclination of the platform is 80° The bucket rated load is 200kg |
landing leg | Method: before V after H type, individually adjustable Quantity: 4 Control: separate adjustable or linkage. Transverse span of the front leg: 4190mm Tilt degree: 120° Lateral span of rear leg: 4230mm | |
cliver | The maximum lifting tonnage of the optional lifting hook is 1000kg corresponding to the working radius of 3778mm | |
main operation | Operation position: rotary table, remote control operation. Control form: ZYK bus control system, electro-hydraulic proportional control system, to achieve stepless speed regulation | |
| 6 | Panel and walking plate | Stainless steel fence and anti-skid walking pad |
| 7 | Arm frame structure form | Four-section hexagonal working arm, synchronous expansion |
| 8 | rotator | Two-way 3600 continuous rotation, hanging basket 360° rotation |
| 9 | overall dimensions of a car | 8060×2480×3200 |
| 10 | gross mass | 8280kg |
| 11 | curb weight | 8150kg |
| 12 | wheel base | 3815mm |

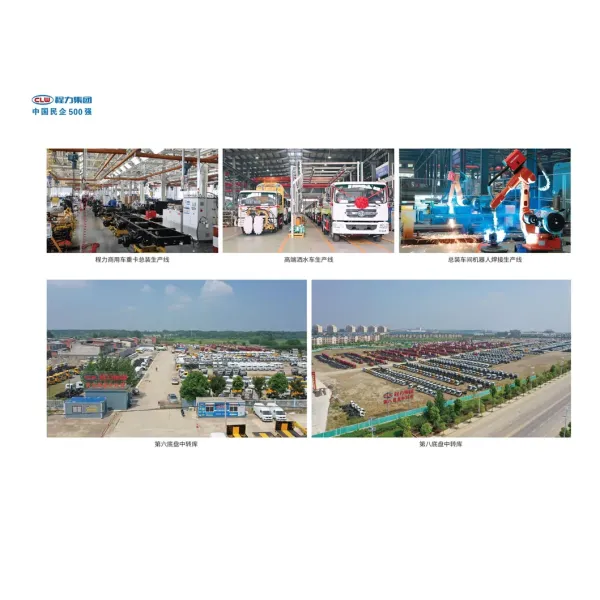

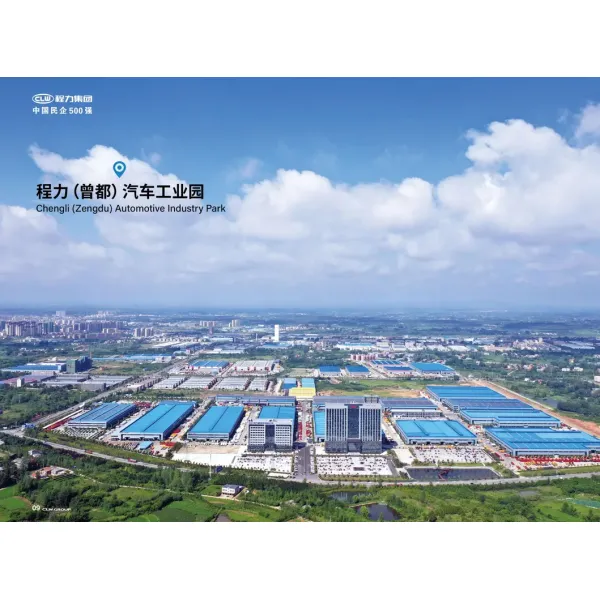

After more than 20 years of leapfrog development, Chengli Special
Purpose Vehicle Co., Ltd. now covers an area of over 3000 acres,
with a construction area of 1.2 million square meters and more than
5000 sets of various large-scale production equipment. It has 16
subsidiaries, over 40 member factories, and more than 100
professional factories. It has four major production bases in the
southern suburbs of Zengdu District, Zengdu Economic Development
Zone, Huangpi District of Wuhan City, and Dongjin New District of
Xiangyang City. The company can produce 50000 sets of automotive
chassis, 100000 sets of special purpose vehicles, 10000 sets of new
energy vehicles, and 20000 sets of emergency equipment annually.
The company has obtained national industrial product production
license, ISO 9001 quality management, ISO 14001 environmental
management, ISO 45001 occupational health and safety management
system certification, after-sales service certification, 3C
mandatory certification, automobile energy conservation and
environmental protection certification, and automobile exemption
certification. We have production qualifications for specialized
vehicles, on-board cranes, truck cranes, fire trucks, new energy
vehicles, complete vehicles, and buses.











|
