1.Product Introduction Gold Ore Processing Equipment

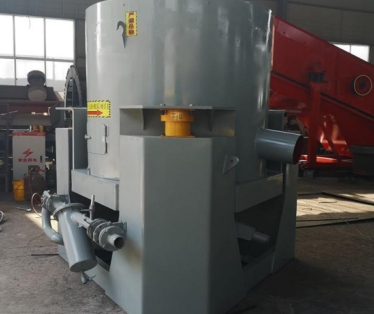

The High Recovery Rate Gold Concentrator is a gravity-based mineral processing system specifically engineered for the efficient extraction of free gold and fine-grained gold from ore. Core equipment types include Water-Jacketed Centrifugal Concentrators (Knelson-type), High-Speed Centrifugal Concentrators, and Composite Force Field Gold Recovery Units. By generating a centrifugal force field hundreds of times stronger than gravity, these devices significantly amplify the density differential between mineral particles. This allows micro-fine gold (particle size 0.004–0.074mm) to be effectively enriched within the rotor grooves, achieving recovery rates exceeding 95%. The equipment supports modular integration and is widely utilized in placer gold, hard rock gold, and tailings re-selection scenarios.

2.Application Gold Ore Processing Equipment

• Primary Gold Beneficiation: Applied in the post-grinding stages of hard rock gold mines (such as quartz vein or altered rock types) to prioritize the recovery of Gravity Recoverable Gold (GRG).
• High-Efficiency Placer Mining: Used for rapid gold extraction from loose ore bodies like alluvial deposits and paleochannels; ideal for mobile field operations.
• Tailings Resource Recovery: Reclaiming residual gold (grades 0.1–0.5 g/t) from historic tailings dams to maximize resource utilization.
• Pre-concentration Before Cyanidation: Performing gravity separation to discard tailings prior to leaching, which reduces cyanide reagent consumption by over 30% and lowers operating costs.
• Small-scale & Artisanal Mining: Features a compact structure and low investment threshold ($2,500 – $9,000 USD), suitable for deployment in Africa, Southeast Asia, and remote regions.

3.Working Principle Gold Ore Processing Equipment

• Slurry Preparation: Ground ore is conditioned into a slurry with a concentration of 30–50% and pumped to the equipment inlet.
• Centrifugal Enrichment: The high-speed rotating conical rotor generates 200–600G of centrifugal force. High-density gold particles are flung toward the inner wall and captured within the grooves or bed surface.
• Stratification & Separation: Light-density gangue is carried by the water flow and discharged through the top or overflow port, achieving solid-liquid separation.
• Periodic Discharge: After a cycle of 1–4 hours, the system automatically pauses. High-pressure backwash water flushes the enriched gold concentrate into a collection tank.
• Multi-Stage Synergy: The unit can be integrated with shaking tables or flotation machines to form a combined circuit for further recovery of residual fines.

4.Advantages Gold Ore Processing Equipment

• Ultra-High Recovery: Achieves combined recovery rates of 95%–99% for both coarse and fine gold, significantly outperforming traditional sluice boxes (<60%).
• Green & Eco-Friendly: Operates without chemical reagents, complying with "Green Mine Construction Specifications" and international environmental standards.
• Low Operating Costs: Unit energy consumption is below 0.8 kWh/t, with simple maintenance and a critical component lifespan exceeding 8,000 hours.
• Modular Design: Supports skid-mounted integration for rapid deployment in either stationary or mobile processing systems.
• High Economic Benefit: Substantially reduces downstream processing volume through pre-selection and tailings rejection; the investment payback period is typically less than 12 months.
• Strong Adaptability: Capable of processing ores with high mud content and complex particle size distributions across various geological conditions.

5.Technical Specifications
