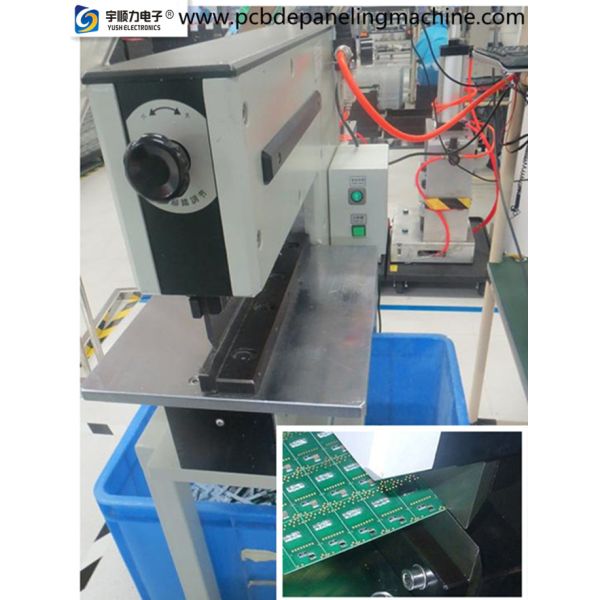

Deburring Pcb Cutter Machine . Pcb Manufacturing Equipment

Professional deburring PCB cutter machines designed for efficient PCB manufacturing operations.

• Easy maintenance and operation
• Thin PCBs down to 0.3mm can be sheared safely
• Shearing process without vibrations due to pneumatic drive unit

• Max Length: 330mm (Custom sizes available)
• Cutting Thickness: 0.3-3.5mm
• Voltage and Power: 110V/220V
• Working Air Pressure: 0.5-0.7Mpa
• Speed: Dependent on operator skill level
• Size: 620×230×400mm
• Weight: 165kg

• Pneumatically driven with electromagnetic valve control
• Vibration-free shearing process through pneumatic drive unit
• Safe shearing of PCBs with sensitive SMD components and capacitors
• Foot pedal operation for precise control
• Accommodates components up to 70mm near V-groove
• Minimum 0.5mm clearance between V-groove and electronic components
• Easy gap adjustment via front-mounted knob

Pneumatically driven and electrically controlled straight knife separator designed to carefully separate pre-scored panel boards without bending or tension stress. Even sensitive SMD-components like ceramic capacitors remain undamaged during separation. Special knife design safely handles boards with high components placed close to edges.

• Vibration-free process prevents damage to precision PCBs
• Easy gap adjustment via top-mounted knob with low friction design
• Adjustable lower knife height with separate front/rear adjustment
• No thin plates required after knife re-sharpening
• Operation and maintenance suitable for unskilled personnel
