| Categories | CNC Milling Machine |
|---|---|
| Brand Name: | Matsumoto |
| Model Number: | XK7124 |
| Certification: | CE, ISO 9001 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | $10500-12500 |
| Payment Terms: | T/T |
| Delivery Time: | 15 working days |
| Packaging Details: | plywood case |
| Spindle Speed(r.p.m): | 10000rpm |
| X/Y/Z Axis Travel: | 500/280/400mm |
| Distance from spindle surface to workbench: | 120-520 |
| Distance from the spindle center to the column: | 350 |
| Worktable T-shot: | 3-16*60mm |
| Company Info. |
| Shandong Matsumoto Machine Tool Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
XK7124 XH7124 CNC Milling Machine CNC 3 Axis Milling Machine
Description:
The XK7124 is a versatile, 3-axis CNC vertical milling machine designed for precision machining of small to medium-sized parts. It features a rigid, steel-welded construction with a fixed bed design, providing excellent stability during cutting operations.
Features:
1. The body casting technology is advanced, the aging process, casting label
2. Vertical 3 axis mini fresadora CNC for sale, guide rail are of high precision and high precision.
3. Two type change tool available, manual, pneumatic.
4. Metal CNC milling machine with high precision and ATC can be used to step motor or servo motor, to provide customers with a good price.
5. Metal CNC milling machine with high precision and ATC Can be customized according to customer requirements of the corresponding products.
| Specification | XK7124 |
| Table size | 800*240(1000*260)mm |
| T-slot(N*W*D) | 3/16/60mm |
| X/Y/Z travel | 500/280/400mm |
| Distance from spindle surface to workbench | 120-520 |
| Distance from the spindle center to the column | 350 |
| Worktable T-shot | 3-16*60mm |
| Rapid feed speed(X/Y/Z) | 12/12/10 m/min |
| X/Y/Z axis motor | servo motor |
| AC servo motor torque(X/Y/Z) | 4/4/6 N.m |
| Main motor | 3.7KW servo motor |
| Spindle speed | 6000rpm |
| Spindle taper | BT40-120 |
| Positioning accuracy | 0.01mm |
| Positioning accuracy | 0.008mm |
| Machine weight | 1550kg |
| Overall size | 1800*1650*2150mm |

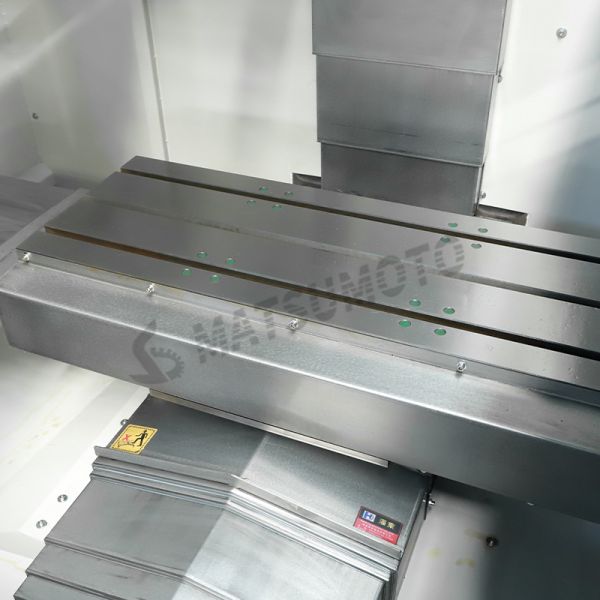

| Workbench High-frequency quenching for better rigidity |

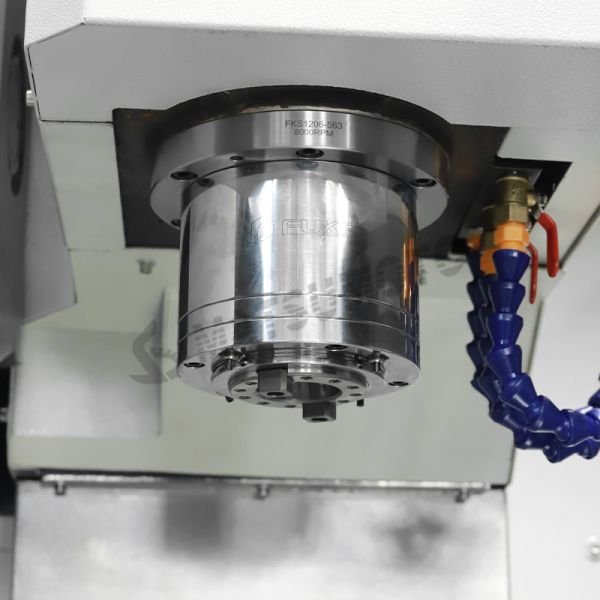

| Spindle Taiwanese brand high-quality spindle, VOLIS/OKADA/ROYAL/AIMACH, etc. Standard configuration: 8000 rpm Optional configuration: 10000/12000 rpm |
|
| Automatic tool changer Standard configuration: 16-tool hat-type tool magazine Optional configuration: 24-tool arm-type tool magazine |
| Control system Standard configuration: GSK Optional configuration: Fanuc/ Syntec/ Mitsubisin |
|
|
