CK61125-1500mm Heavy Duty CNC Lathe Machine Flat Bed CNC Lathe Machine
Description:
The Heavy Duty CNC Lathe CK61125 is a high-performance, rigid numerical control lathe specifically engineered for processing large, heavy workpieces with high precision requirements. Integrating advanced heavy-duty machining technology, robust mechanical structure, and intelligent control systems, it serves as a core equipment in key industrial fields requiring heavy cutting and high-stability processing.
MODEL | CK61125 |
Max. Swing over bed | 1250mm |
Max. Swing over cross slide | 800mm |
Max. Processing length | 1500/2000/3000mm |
Spindle speed step | Mechanical/Hydraulic 4 stepless |
Spindle speed | 30-84/53-150/125-350/300-835 |
Spindle nose | D11 |
Spindle hole front taper | METRIC120/1:20 |
Spindle bore | 105/130mm |
Spindle motor | 11/15kw |
X/Z axis positioning accuracy | 0.025/0.03 |
X/Z axis repeat positioning accuracy | 0.01/0.015mm |
X/Z axis travel | X:420 Z:1500/2000/3000 |
Processing accuracy | IT6-IT7 |
Workpiece surface roughness | Ral.6 |
X/Z axis rapid traverse | X:4mm/min Z:6mm/min |
Tail stock quill dia | 100mm |
Spindle taper | MT6 |
Chuck size | 400mm 3jaw(630mm 4jaw) |
X/Z axis feed motor torque | X:10Nm Z:15Nm |
Quill travel | 250mm |
Quill taper | MT6 |
Tool post type | 4-position electric turret |
Cutting tool size | 40*40mm |
Guide form | Hard guide |
Machine dimension | 3700/4200/4700*2000*2200mm |
Weight | 5100/6000/7200kg |
| FOUR-JAW CHUCK Strong clamping during work, long use time. |
| ELECTRIC CONTROL BOX The wiring of the electric control box is neat and reasonable, and the original electric parts adopt brand accessories. |

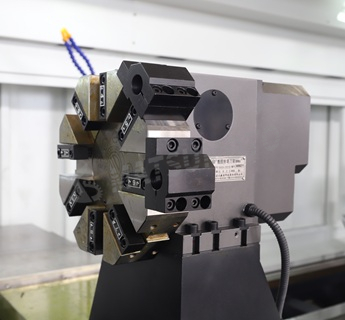

| TOOL HOLDER Four-station tool holder, multi-tool quick change. |

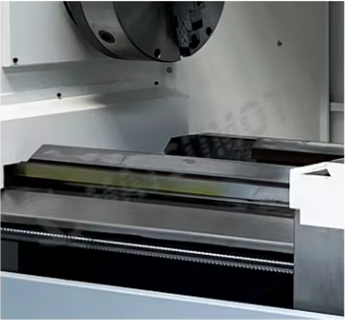

| GUIDE The guide rails are quenched by super audio frequency, and the sliding guide rails are all pasted with wear-resistant plastic. |

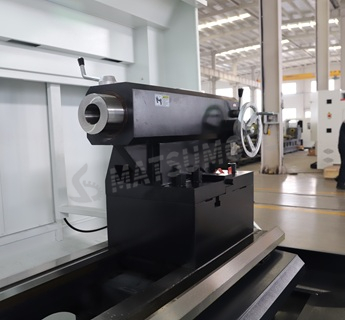

| TAIL STOCK Standard with manual tail stock, optional:Hydraulic or pneumatic type tail stock. |
| CNC CONTROL SYSTEM Standard:GSK Optional:FANUC/MITSUBISHI etc. |
CNC Lathe use:
The machine tool is automatically controlled by the CNC system to
perform various kinds of turning of inner holes, outer circles,
conical surfaces, arc surfaces, and threads, Simple programming,
high precision and other advantages.
CNC Lathe Features:
Widened high stability bed
Four-speed speed change of main shaft, stepless frequency
conversion speed regulation.
Widened carriage
Automatic centralized lubrication
Overall bed
|
