| Categories | Armoured Fiber Optic Cable |
|---|---|
| Brand Name: | JQ/OEM/Customize |
| Model Number: | GYXTW-4B1 |
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC |
| Place of Origin: | Guangzhou China |
| MOQ: | 1km |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 Per day |
| Delivery Time: | 3-5dyas |
| Packaging Details: | 1/2/3/4/5 km in one wooden drum |
| Jacket material: | PE, MDPE, LSZH, HDPE |
| Outer diameter: | 6/7/8/9mm |
| Steel wire: | 0.7/0.8/1.0mm |
| Fiber count: | 2/4/6/8/12/24/36/48 Core |
| Structure: | Central loose tube cable |
| Strength member: | two steel wires strand/FRP Central Strength Member |
| Installation: | Aerial &Duct |
| Fiber type: | single mode or multi mode |
| Company Info. |
| Guangzhou Jiqian Fiber Optic Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
GYXTW 4 Core Outdoor Aerial Armored Fiber Optic Cable Single Mode Central Loose Tube Steel Tape Armored Communication Cable
Key Features:
Central loose tube filled with waterproof compound for strong fiber protection
PSP steel tape armor enhances crush resistance and moisture protection
Two parallel steel wires provide high tensile strength for aerial installation
Excellent mechanical performance and temperature stability
Small diameter lightweight structure for easy installation
Durable PE outer sheath with strong UV resistance
Applications:
Outdoor aerial communication networks
Duct and overhead telecom installations
Access network and metropolitan area network
Rural broadband and FTTH backbone transmission
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Cable Parameters
| Items | Specifications | |
| Fiber Count | 2~24 | |
| Colored Coating Fiber | Dimension | 250μm+15μm |
| Color | Blue,Orange,Green,Brown,Gray,White | |
| Loose Tube | Dimension | 2.0mm±0.05mm |
| Material | PBT | |
| Color | Natural | |
| Strength Member | Diameter | 1.0mm |
| Material | Steel | |
| Outer Jacket | Dimension | 8.0mm±0.1mm |
| Material | PE | |
| Color | Black | |
Technical Parameters
| Fiber Count | Cable Diameter(mm) | Cable Weight kg/km) | Tensile Strength Long/Short Term (N) | Crush Resistance Long/Short Term (N/100mm) | Bending Radius Static/Dynamic |
| 2~12 | 8 | 78 | 1000/3000 | 1000/3000 | 10D/20D |
| 14~24 | 10 | 90 | 1000/3000 | 1000/3000 | 10D/20D |

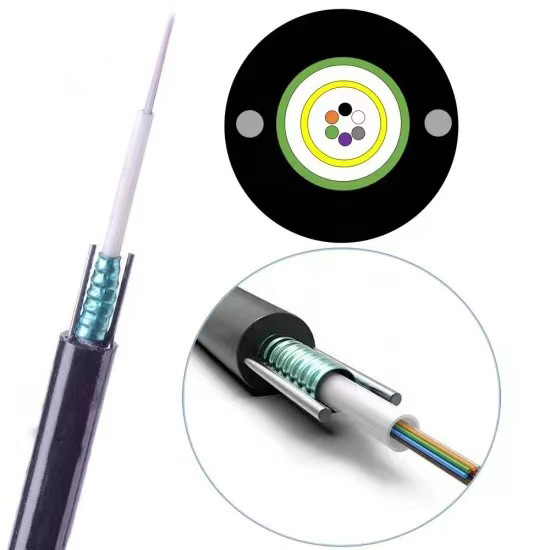

Product Image
Packing&Delivery
1/2/3/4/5 km in one wooden drum,deliver days:5-8work days
FAQ
Q1: Are you a manufacturer or trading company?
A: We are a professional manufacturer with 10 years of experience
in fiber optic cables, drop cables, and patch cords. Our factory is
located in Guangzhou, China.
Q2: How do you ensure product quality?
A: All cables are fully tested before shipment. Free samples are
available after price confirmation.
Q3: Do you accept small orders?
A: Yes, we support small orders and new projects.
Q4: What is your delivery time?
A: Normally 3–7 working days depending on order quantity.
Q5: Do you support OEM service?
A: Yes, we provide OEM service including logo printing and custom
cable design.
|
