Compact Slip Ring with 7 Power Channels and 2 Pneumatic Channels Featuring IP51 Protection

Name: Compact Slip Ring with 7 Power Channels and 2 Pneumatic Channels Featuring IP51 Protection
Brand: Panlink
Price: 1 USD

Compact Slip Ring with 7 Power Channels and 2 Pneumatic Channels Featuring IP51 Protection

Categories	Fluid Rotary Joint
Brand Name:	Panlink
Model Number:	PSR-C12-7-RC2
Certification:	ISO 9001: 2015, CE
Place of Origin:	China
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	40 Million a Year
Delivery Time:	4 Weeks
Packaging Details:	Carton Box, EPE Foam, Wooden Box(For Large Goods)
Fluid Channel:	2
Max Pressure & Media:	145PSI (10bar), Air
Connector Size:	M5
Protection Degree:	IP51(higher or lower on request)

Contact Now

Add to Cart

Company Info.

Shenzhen Panlink Electronic Technology Co.,Ltd.

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Synchronized rotary transmission of 7 power channels + 2 pneumatic channels within an extremely confined space

PSR-C12-7-RC2

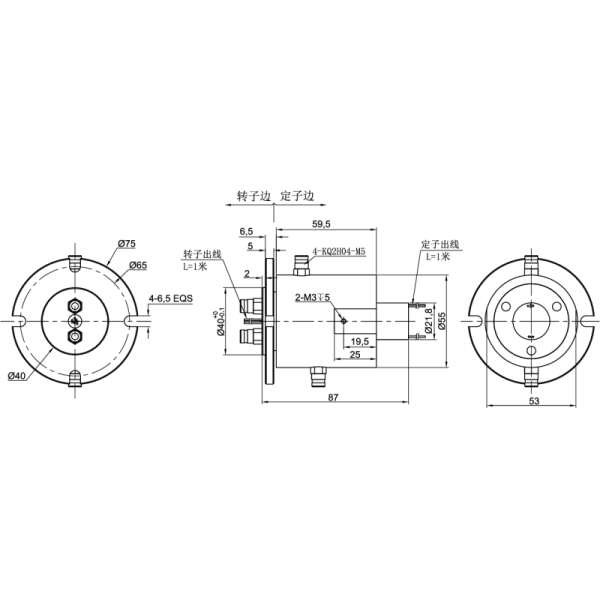

Dimensions in millimeters

Specification

Fluid Rotary Union Specifications
Circuits	7 for Power Transmission, 2 for Fluid Transmission
Max Pressure & Media	145PSI (10bar), Air
Connector Size	M5
Torque	1N•m
Electrical Specifications
Voltage Rating	24VDC
Current Rating	1A
Insulation Resistance	Max 200MΩ @ 500VDC
Dielectric Noise	300VDC @ 50Hz, 60s
Electric Noise	Max 40mΩ
Lead Cable	AWG28 Teflon
Mechanical Specifications
Rotating Speed	300rpm
Operating Temperature	-4℉ to +176℉ (-20℃ to +80℃)
Storage Temperature	-4℉ to +185℉ (-20℃ to +85℃)
Operating Humidity	0~95%RH
Torque	1.0 N•m
Contact Material	Precious Metal
Housing Material	Aluminum Alloy
Protection Degree	IP51(higher or lower on request)
Shock	GB/T 2423.5 (IEC 60068-2-27)
Vibration	GB/T 2423.10 (IEC 60068-2-6)

Product Tags:

7-channel rotary power transmission
