Trina Solar Vertex s Tsm-395 Trina Solar Panel Full Black 385W 390W TSM-DE09.05 Trina Solar 395 Pv Panels Trina Solar

Categories Tier 1 Solar Panel
Brand Name: TRINA
Model Number: TSM-DE09.05
Place of Origin: Jiangsu, China
Cell size: 166mmx166mm
Type: PERC, Half Cell, All Black

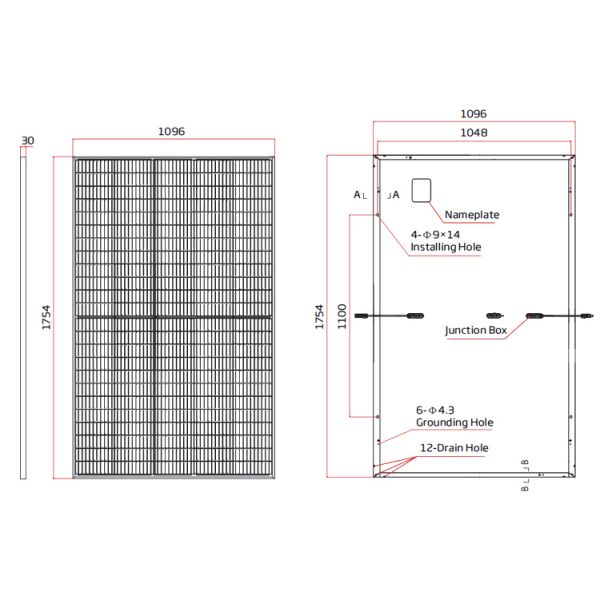

Panel Dimensions: 1754*1096*30 mm(69.06*43.15*1.18in)
Panel Efficiency: 20.5%
Application: Solar Power System
Product name: Trina all black solar panel
Solar cell: 120 cells
Junction Box: IP 68 rated
Frame: 30mm(1.18 inches) Anodized Aluminium Alloy
Keyword: Monocrystaline Solar Panel
Weight: 21.0 kg (46.3 lb)
Backsheet: Black-White
OEM Order: Acceptable
Name: Black Mono Solar Panels
MOQ: 20000 watts
Price: $0.24-0.28 / watt
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Trina Solar Vertex s Tsm-395 Trina Solar Panel Full Black 385W 390W TSM-DE09.05 Trina Solar 395 Pv Panels Trina Solar

Product Description
Product Description
Trina Solar Vertex S series modules, with a module conversion efficiency over 21%, generate over 400Ws power output. Incorporating 210mm cells, the new Vertex S series modules are designed for residential,commercial and industrial projects and come in three versions-white laminate,silver/black frame ones and full-black aesthetic modules.
Specifications
Specifications
ELECTRICAL DATA (STC)
Peak Power Watts-PMAX (Wp)*
380
385
390
395
Power Tolerance-PMAX (W)
0 ~ +5
Maximum Power Voltage-VMPP (V)
33.4
33.6
33.8
34.0
Maximum Power Current-IMPP (A)
11.38
11.46
11.54
11.62
Open Circuit Voltage-VOC (V)
40.4
40.6
40.8
41.0
Short Circuit Current-ISC (A)
12.00
12.07
12.14
12.21
Module Effciency η m (%)
19.8
20.0
20.3
20.5
STC
Irrdiance 1000W/m2, Cell Temperature 25ºC, Air Mass AM1.5.
ELECTRICAL DATA (NOCT)
Maximum Power-PMAX (Wp)
286
290
294
298
Maximum Power Voltage-VMPP (V)
31.4
31.6
31.8
31.9
Maximum Power Current-IMPP (A)
9.12
9.18
9.24
9.32
Open Circuit Voltage-VOC (V)
38.0
38.2
38.4
38.6
Short Circuit Current-ISC (A)
9.67
9.73
9.78
9.84
NOCT
Irradiance at 800W/m2, Ambient Temperature 20°C, Wind Speed 1m/s.
Product Details
Product Details
Vertex S is Trina solar's latest PV module product for fast growing non-utility customers which carriers cutting-edge Vertex Platform technology.Based on Trina Solar's superior multi-busbar technology,the Vertex S modules incorporates an innovative design that integrates 1/3 split cell,non-destructive cutting and high-density interconnect technologies.
210mm silicon water brings the highest power output
The 400W+ Vertexs module employs cells based on 210mm silicon wafers, which is the largest possible wafer size provided by the semiconductor industry and brings the highest power output.
Universal Solution Rooftops
Diverse Installation Solutions.Flexible for System Deployment

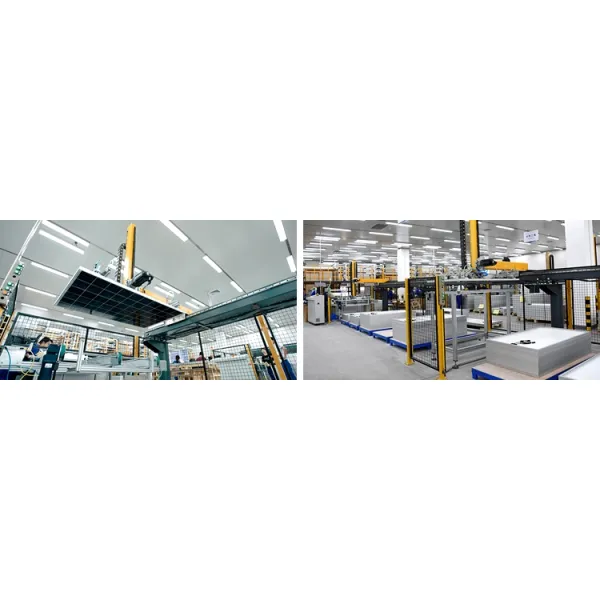

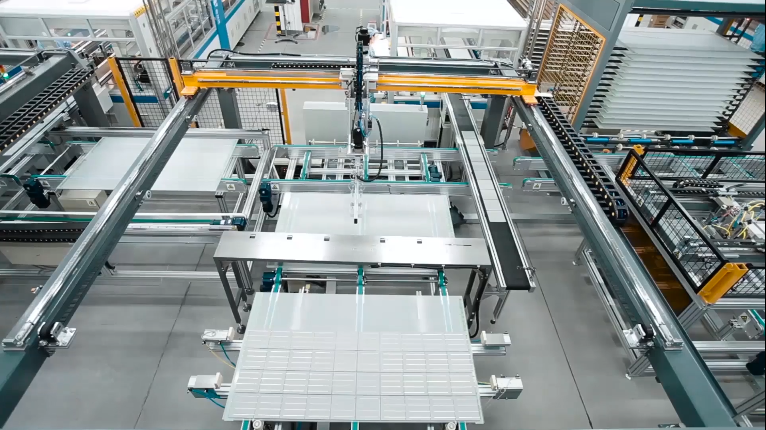

Factory Display
Factory Display
Product Packaging
Product Packaging
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
Project Case
Project Case
Certifications
Certifications
