CNC Horizontal Ring Rolling Machine with 6300 KN Radial Rolling Force and 100-1200 mm Ring Rolling Height Featuring Automation Control

Categories	Horizontal Ring Rolling Machine
Brand Name:	Duolek
Model Number:	D53KF
Place of Origin:	China
MOQ:	1 Set
Price:	25000 - 493000 USD Per Set
Payment Terms:	L/C,T/T
Delivery Time:	45-75 Working Days
Packaging Details:	After Being Wrapped With Stretch Film, It Is Shipped Unpacked In The Container.
Model:	D53KF -7000
Ring rolling height(mm):	100 - 1200
Radial rolling force(KN）:	6300
Axial rolling force(KN）:	5000
Linear rolling speed(m/s):	0.5 - 1.4
Overall dimensions（mm）:	26050 X 7550 X 7250

Contact Now

Add to Cart

Company Info.

Shandong Dorco Heavy Machinery Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

CNC Horizontal Ring Rolling Machine with 6300 KN Radial Rolling Force and 100-1200 mm Ring Rolling Height Featuring Automation Control

Rolling Various Metal Materials Horizontal Ring Rolling Machine Aviation, Wind Power And Other Fields

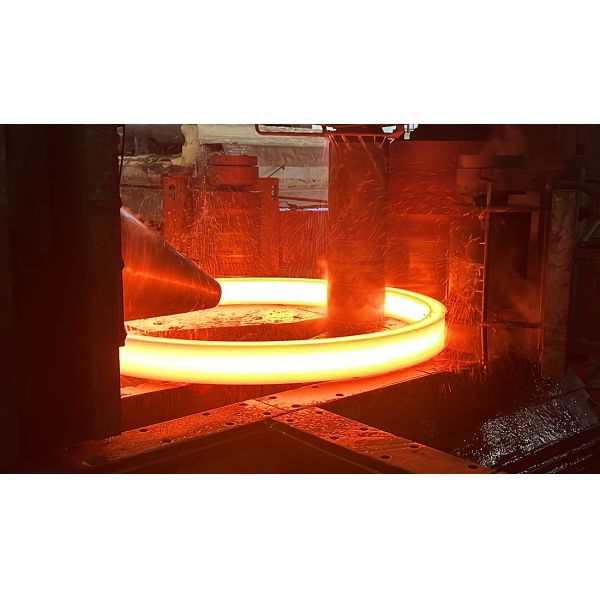

The D53KF series ring rolling machine, as a cutting-edge equipment in the field of ring rolling, has successfully deeply integrated automation control, precision engineering, and intelligent technology. It aims to meet the growing demand for high precision, high performance, and high consistency in the market for large seamless rings, providing perfect assurance from processing to finished products.

Technical Specifications - DRC-D53KF Series (350-3500mm)

Model	350	450	600	800	1200	1600	2000	2500	3500
Nominal outer diameter (mm)	350	450	600	800	1200	1600	2000	2500	3500
Rolling diameter range (mm)	160-350	180-450	200-600	300-800	300-1200	400-1600	400-2000	500-2500	700-3500
Rolling height (mm)	50-150	50-200	50-250	60-250	60-300	60-350	60-400	50-500	80-600
Radial rolling force (KN)	350	450	630	1000	1250	1600	2000	2500	3000
Axial rolling force (KN)	200	350	500	800	1000	1250	1600	2000	2500
Linear rolling speed (m/s)	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3
Radial motor power (Kw)	90	110	132	160	250	280	355	2*280	2*315
Axial motor power (Kw)	55	55	90	2*75	2*110	2*160	2*220	2*280	2*315
Dimensions (mm)	675020003400	695021503450	705020503500	855022503500	905024503550	1105025503650	1305030503850	1405035504380	1705038504550

Technical Specifications - DRC-D53KF Series (4000-12000mm)

Model	4000	5000	6000	6300	7000	8000	9000	10000	12000
Nominal outer diameter (mm)	4000	5000	6000	6300	7000	8000	9000	10000	12000
Rolling diameter range (mm)	800-4000	800-5000	800-6000	1000-6300	1000-8000	1100-8000	1100-9000	1200-10000	1500-12000
Rolling height (mm)	80-700	80-800	80-800	100-1000	100-1200	100-1600	110-1600	120-1650	130-2000
Radial rolling force (KN)	3000	3600	4000	5000	6300	8000	8000	10000	12500
Axial rolling force (KN)	2500	3000	3150	4000	5000	6300	6300	8000	10000
Linear rolling speed (m/s)	1.3	0.5-1.4	0.5-1.4	0.5-1.4	0.5-1.4	0.5-1.4	0.5-1.4	0.5-1.4	0.5-1.4
Radial motor power (Kw)	2*350	2*450	2*550	2*630	2*730	2*800	2*900	2*1000	2*1250
Axial motor power (Kw)	2*350	2*450	2*550	2*630	2*730	2*800	2*900	2*1000	2*1250
Dimensions (mm)	1805042504650	2005053504750	2105065505550	2405068506550	2605075507250	3005085508050	3605090508050	40050955010050	480501205011050

Key Advantages

By using industrial control computers and CNC technology, the collaborative work of computers, electronics, hydraulics, and instruments is achieved, with a high level of automation.
By utilizing electronic handwheels, automatic curve generation, and CAR operation modes, complex rolling processes are simplified into convenient standardized procedures.
The equipment operates efficiently and energy-saving, with high material utilization, while reducing environmental footprint while increasing output.
The composite rolling process that synchronizes the radial and axial directions ensures precise ring dimensions and excellent internal structure, with mechanical properties far exceeding those of conventional forgings.
Provide flexible and multifunctional multi station configurations, as well as comprehensive non-standard customization capabilities, to ensure that each type of ring can obtain the optimal rolling process.

Especially suitable for processing high-end aerospace components, large flanges for offshore platforms, wind turbine spindle bearing rings, heavy-duty machinery gear rings, and other large precision ring forgings with high added value.
