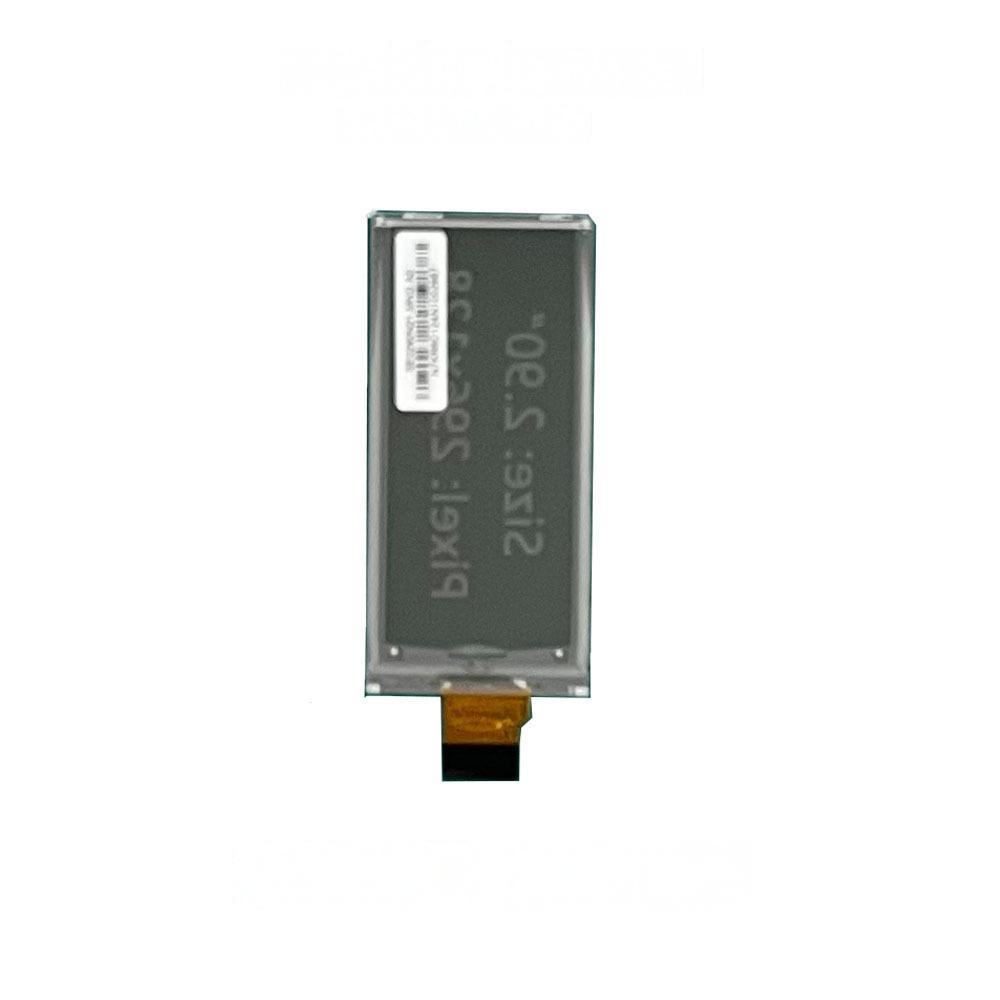

2.9-inch 128×296 two-color black-and-white e-paper display with SPI interface

1. Module Name: 2.9-inch 128×296 SPI Interface Two-Color Black-and-White E-Paper Display
2. Model:
3. Similar Models:
4. Compatible Models:
5. Display Mode: EPD, Black/White
6. Display Color: Black and White
7. Resolution: 128×296
8. Dot Pitch: 0.227(H) × 0.226(V)
9. Viewing Angle: Ultra-wide Viewing Angle
10. Controller IC: -
11. Display Type: EPD, Black/White
12. Outline Dimension: 36.7(H) × 79.0(V) × 1.14(D)
13. Dot Matrix Area: 29.06(H) x 66.90(V)
14. Luminance: 0 cd/㎡
15. Contrast Ratio:
16. Interface Type: 3-wire / 4-wire SPI
17. Number of Pins: 24
18. Pin Pitch: 0.5mm
19. Connection Type: Plug-in Type
20. Operating Voltage: 3V
21. Backlight Color & Type: None
22. Backlight Circuit: None
23. Service Life: 50000h
24. Operating Temperature: 0 -- +35°C
25. Storage Temperature: -25 -- +60°C
26. Product Certification: RoHS
27. Quality System Certification: ISO9001 ISO13485 IATF16949 ISO14001
