Durable Corrosion Mechanics Tensile Testing Machine Lasting Erosion Dynamics Stretch Tester
Introduction

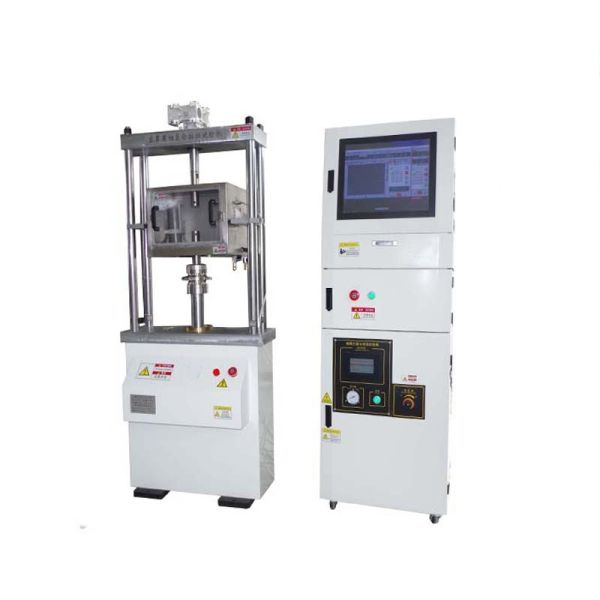

The corrosion, tension and compression testing machine is a device
specifically designed for conducting long-term tests on metal
materials. It is equipped with a corresponding environmental
simulation system, which enables it to perform "persistence" tests
on metal materials. It is an indispensable testing equipment for
laboratories of colleges and universities, material research and
production enterprises. The test control system is composed of the
testing machine mainframe, digital controller, salt spray
environmental test chamber, salt spray generator, and computer
group control and inspection system. It is a high-tech product with
integrated mechanical and electrical features. The mainframe uses
an electromechanical servo mechanism composed of ball screw,
reducer, and AC servo motor to load the sample, and adopts a
high-precision and stable sensor electrical measurement system to
measure the force and deformation applied to the sample. With the
participation of the computer, it can perform closed-loop control
of force, deformation and displacement of the sample, maintaining
the constant force or deformation applied to the sample for a long
time. It can also apply periodic dynamic loads to the sample
according to a certain program or waveform.
Durable Corrosion Mechanics Tensile Testing Machine Lasting Erosion Dynamics Stretch Tester
Technical Specification
Maximum test force | 50KN |
Testing machine grade | Level 1 |
Allowable error limit of test force indication | Within ±1% of the indicated value |
Load measurement range | From 1% to 100% of the full scale |
Limit error of displacement indication | Within ±1% of the indicated value |
Displacement resolution | 0.01mm |
Displacement speed adjustment range | 0.01 - 200mm/min |
Displacement rate control accuracy | When the rate is ≥ 1mm/min, the set value is within ±0.5% |
|
