| Model Number: | N9K-C9508-FM-E2 |
| Price: | $100-$200 |
| Packaging Details: | 1pc into a spare inner foam carton and pack with exteral wooden carton |
| Supply Ability: | 500pcs/week |
| Product name: | Cisco N9K-C9508-FM-E2 |
| Warranty: | Six month |
| Payment Terms: | T/T, |
| Shipping term: | DHL,Fedex,UPS,EMS,AIR |
| Condition: | Brand New |
| Delivery Time: | 3-7 work days |
| Products status: | Stock |
| Brand Name: | Cisco |
| Place of Origin: | CHINA |
| MOQ: | 1pc |
| Type: | SDH/MSTP/PTN |
| Company Info. |
| Changsha Xingheda Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

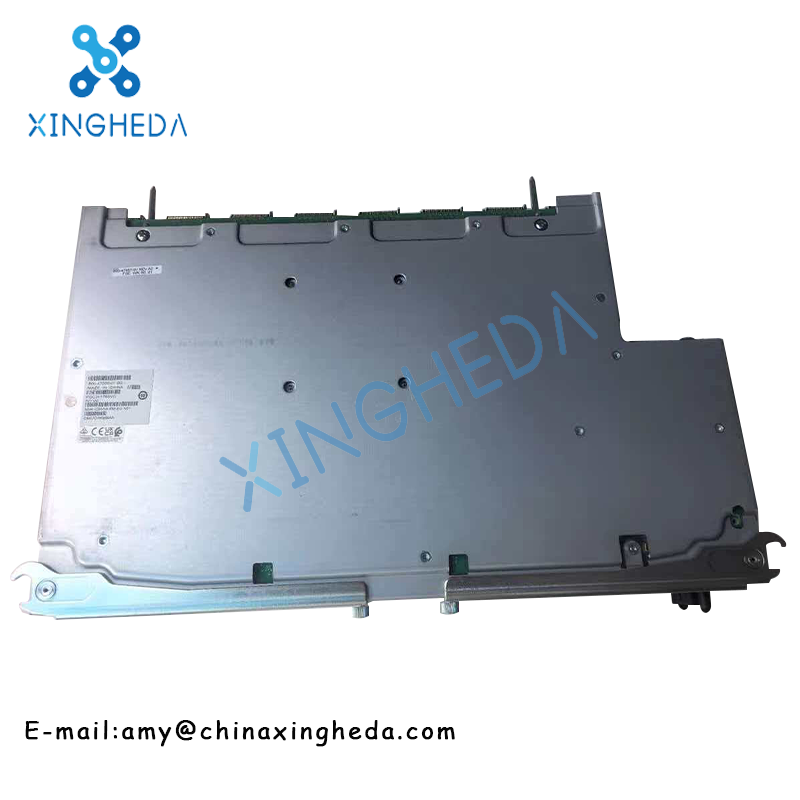

The Cisco N9K-C9508-FM-E2 is a high-performance, fourth-generation cloud-scale fabric module engineered for the Cisco Nexus 9508 modular chassis. As the successor to the FM-E module, the FM-E2 leverages Cisco’s CloudScale ASIC S6400 to deliver 64x100G fabric connectivity per module, effectively doubling the bandwidth density of earlier designs.
Designed for modern data center architectures, this 8-slot fabric module delivers up to 800 Gbps of bandwidth per slot, enabling consistent, predictable performance across high-density switching deployments. It utilizes a Clos fabric architecture to ensure efficient load balancing and uninterrupted data flow between line cards. The FM-E2 is hot-swappable, allowing for simplified maintenance and improved uptime, and is optimized for both Cisco NX-OS and Cisco ACI environments
| Parameter | Specification |
|---|---|
| Manufacturer | Cisco Systems, Inc. |
| Model | N9K-C9508-FM-E2 |
| Product Type | Cloud-Scale Fabric Module |
| Compatible Chassis | Cisco Nexus 9508 (8-slot chassis) |
| Switching Capacity per Module | 6.4 Tbps (64x100G SerDes lanes) |
| Bandwidth per Slot | Up to 800 Gbps |
| Ethernet Technology | 100 Gigabit Ethernet |
| Network Technology | 100GBase-X |
| Architecture | Clos Fabric |
| Hot-Swappable | Yes |
| Airflow | Port-side intake (standard); exhaust variant available |
| Typical Power Consumption | 266 W |
| Maximum Power Consumption | 420 W |
| Weight | Approx. 10.9 – 10.94 lb (4.9 – 5.0 kg) |
| Minimum Modules Required | 4 |
| Maximum Modules Supported | 5 |
| Designed For | N9K-C9508, N9K-C9508-ADV-P1, N9K-C9508-B3-E, N9K-C9508-PRE-P1 |
The N9K-C9508-FM-E2 requires 4 active modules + 1 standby for optimal performance
Supports N+1 redundancy configurations
Mixed fabric generations (FM-E and FM-E2) cannot coexist in the same chassis; mixing triggers an NX-OS error and forces chassis shutdown
The FM-E2 supports second-generation line cards equipped with Cisco Cloud-Scale. Verified compatible line cards include:
| Line Card | Description |
|---|---|
| N9K-X9736C-FX | 36-port 100G QSFP28 line card |
| N9K-X97160YC-EX | 48-port 1/10/25G + 8-port 40/100G line card |
| N9K-X9736C-FX3 | 36-port 400G QSFP-DD line card |
NX-OS Mode: Supported
ACI Spine Mode: Supported
ACI Leaf Mode: Not supported
Minimum NX-OS release: 7.0(3)I7(2) (initial support)
Optimized firmware: NX-OS 11.1(4)F+ for adaptive buffer algorithms
If you are interested, please let us know the specific model. We will provide the best service and the best price!
|
