| Categories | Rack Server |
|---|---|
| Supply Ability: | Quantity (pieces) 1-10 for around 15days, > 10, to be negotiated |
| Delivery Time: | Quantity (pieces) 1-10 for around 15days, > 10, to be negotiated |
| MOQ: | 1 |
| From Factor: | 2U rack-mount |
| Network: | Supports OCP 3.0 network cards or PCIe standard interface network cards |
| Payment Terms: | T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; |
| type: | Rack |
| Place of Origin: | China |
| processor: | One or two 4th-generation Intel Xeon Scalable processors (codenamed Sapphire Rapids) One or two 5th-generation Intel Xeon Scalable processors (codenamed Emerald Rapids) Support for processors with up to 64 cores, with a maximum base clock speed of 3.9 GHz, |
| Packaging Details: | Carton with waterproof warpped |
| Drive Bays: | Supports up to 20 hot-swappable 3.5-inch hard drives or 40 hot-swappable 2.5-inch hard drives Front-mounted hard drives can be 3.5-inch (8 or 12) or 2.5-inch (8, 16 or 24) The mid-bay drives can be 3.5-inch (up to 4) or 2.5-inch (up to 8) The rear-bay driv |
| Model Number: | SR570 |
| Price: | $3,994.41-4,137.07/pcs |
| RAM: | 32 DIMM slots (two processors, 16 DIMM slots per processor) Each processor has 8 memory channels, with 2 DIMMs per channel (DPC). Supports DDR5 RDIMM, 3DS RDIMM, etc. The operating frequency of DIMMs can reach up to 5600 MHz in a single DPC configuration a |
| Company Info. |
| Ideal Future (beijing) Information Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Specification | Details |
|---|---|
| Form Factor | 2U rack server |
| Processors | One or two 4th-generation Intel Xeon Scalable processors (Sapphire
Rapids) One or two 5th-generation Intel Xeon Scalable processors (Emerald Rapids) Support for processors with up to 64 cores, maximum base clock speed of 3.9 GHz, maximum TDP of 385W |
| Chipset | Intel C741 "Emitsburg" chipset |
| Memory | 32 DIMM slots (two processors, 16 DIMM slots per processor) Each processor has 8 memory channels, 2 DIMMs per channel (DPC) Supports DDR5 RDIMM, 3DS RDIMM Operating frequency: up to 5600 MHz (single DPC), up to 4400 MHz (dual DPC) Maximum memory capacity: up to 8 TB with 32 x 256 GB 3DS RDIMMs Memory protection: ECC and memory mirroring support |
| Drive Bays | Supports up to 20 hot-swappable 3.5-inch or 40 hot-swappable
2.5-inch hard drives Front-mounted: 3.5-inch (8 or 12) or 2.5-inch (8, 16 or 24) Mid-bay: 3.5-inch (up to 4) or 2.5-inch (up to 8) Rear-bay: 3.5-inch (up to 4) or 2.5-inch (up to 8) Supports SAS/SATA, NVMe or AnyBay (SAS, SATA or NVMe) Supports up to two M.2 drives (SATA SSD, NVMe SSD) |
| Maximum Storage Capacity | 2.5-inch drives: 40 x SAS/SATA SSDs/HDDs or 32 x NVMe SSDs 3.5-inch drives: 20 x SAS/SATA SSDs/HDDs or 4 x NVMe SSDs |
| Storage Controller | 16 on-board SATA ports, 16 on-board NVMe ports, NVMe re-timer 12 Gb SAS/SATA RAID adapter with up to 8 GB cache (PCIe 4.0/3.0) 12 Gb SAS/SATA HBA (non-RAID) 8-port or 16-port (PCIe 4.0/3.0) |
| Network Interface | Supports OCP 3.0 network cards or PCIe standard interface network cards |
| PCIe and OCP 3.0 Slots | Up to 12 PCIe 4.0 slots, up to 6 PCIe 5.0 slots, up to 2 OCP 3.0 slots |
| GPU Support | Up to 4 double-width GPUs (up to 350W, PCIe 5.0) Up to 12 single-width GPUs |

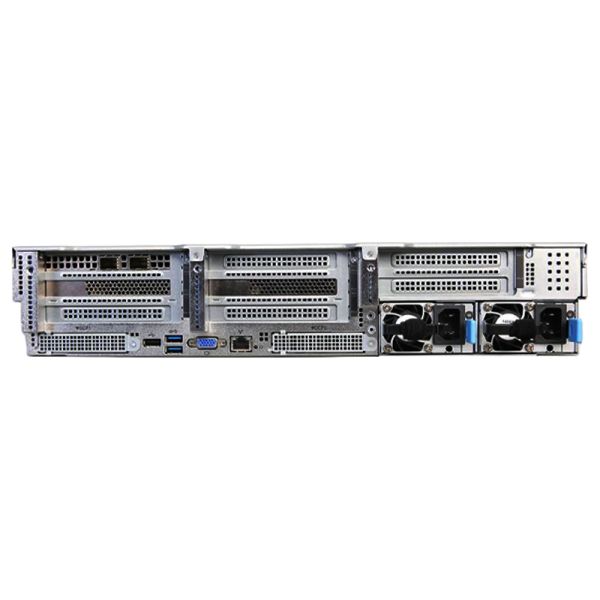

| Ports | Front panel: 1 USB 3.0, 1 USB 2.0, optional VGA Rear panel: 2 USB 3.0, 1 USB 2.0, 1 VGA, 1 RJ-45 1GbE system management port for BMC, optional serial port |
| Fans | 4 (two-processor) or 3 (single-processor) single-rotor or
dual-rotor hot-swappable 80 mm fans N+1 redundancy support |
| Power Supply | Two hot-swappable redundant CRPS-compliant power supplies 80 PLUS Platinum or Titanium certified Platinum-rated: 800W/1300W/1600W/2000W/2200W/2700W (220V AC/240V DC) Titanium-rated: 800W/2000W/3200W (220V AC/240V DC) 336V HVDC 1300W Platinum, -48V DC 1300W Platinum |
| Hot-swappable Components | Hard drives, power supplies, fans |
| System Administration | Lenovo BMC and accompanying system management software Dual BIOS/BMC flash support for high availability BMC chip: AST2600 |
| Safety Features | Power-on password, administrator password, optional TCM/TPM 2.0
modules Optional security front panel with lock function |
| Operating System | Microsoft, SUSE, Red Hat, VMware, Kylinsoft, Ubuntu, XenServer, etc. |
| Dimensions | Height: 87.1 mm Width: 481.4 mm (including EIA), 447 mm (excluding EIA) Depth: 799 mm (front hard drive to rear I/O), 837.1 mm (front EIA to rear power supply handle) |
| Weight | Maximum: 39 kg (excluding packaging), 44 kg (including packaging) |
|
