12kg Top Loading Washing Machine Drum Sheet Metal Stamping Die

Categories Washing Machine Stamping Die
Model Number: washing machine drum
Maximum Forming Force: 150T
MOQ: 1 set
Delivery Time: 45days
Die Weight: 4900 kg
Payment Terms: L/C,T/T
Application: Household Washing Machine Inner Drum
Die Size: 2380 × 860 × 492 mm
Brand Name: IDO
Packaging Details: Wooden Case, Anti-Rust Oil, Vacuum Packaging
Price: $10000-$50000
Washing Machine Type: Top Loading
Supply Ability: 300 sets/year
Product Name: Washing Machine Inner Drum Stamping Die
Certification: ISO9001
Washing Machine Capacity: 12 kg
Place of Origin: China
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

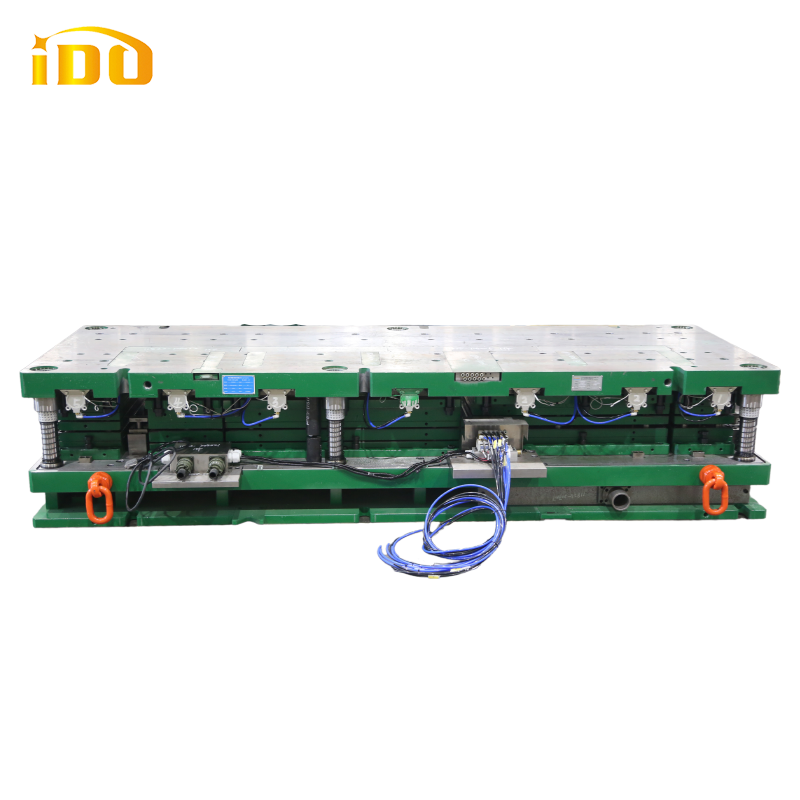

12kg Top Loading Washing Machine Drum Sheet Metal Stamping Die

12kg Top Loading Washing Machine Drum Sheet Metal Stamping Die

This sheet metal stamping die is designed for the inner drum of a 12 kg household top loading washing machine. The die measures 2380 * 860 * 492 mm and weighs 4900 kg. Its maximum forming force is 150T. These specifications provide a basis for reviewing the tooling footprint and forming load when planning inner drum production. Press compatibility should be checked against the approved tooling drawings, including the press stroke, bolster size and installation requirements. The inner drum drawing and sheet material specification are also needed to assess whether the die suits a particular production project.

AttributeSpecification
Product NameWashing Machine Inner Drum Stamping Die
ApplicationHousehold Washing Machine Inner Drum
Washing Machine TypePulsator
Washing Machine Capacity12 kg
Die Size2380 * 860 * 492 mm
Die Weight4900 kg
Maximum Forming Force150T
