Biometric High Precision Arduino Fingerprint Reader Fingerprint Recognition Module

Grow R303S FPC1020 Capacitive Fingerprint Module with Free Sdk

Description

·Communication interface : USB and UART
·1:N Identification (One-to-Many)
·1:1 Verification (One-to-One)
·High speed fingerprint identification algorithm engine
·Self study function
·Fingerprint feature data read/write functions
·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured
·Fingerprint Identify Downloaded Feature with Captured fingerprint
·Security Level setting
·Able to set BaudRate/ Device ID/Device Password
·Operating system:Windows 98, Me, NT4.0, 2000, XP,WIN 7 or Android

Specifications

·Interface:USB 2.0 and UART(3.3V-TTL logic)
·Resolution:508 DPI
·Work Current: <55mA
·Voltage: DC 4.2-6.0V
·Fingerprint capacity:1000
·Security Level: 1-5, default is 3
·Sensor Array: 208*288 pixel

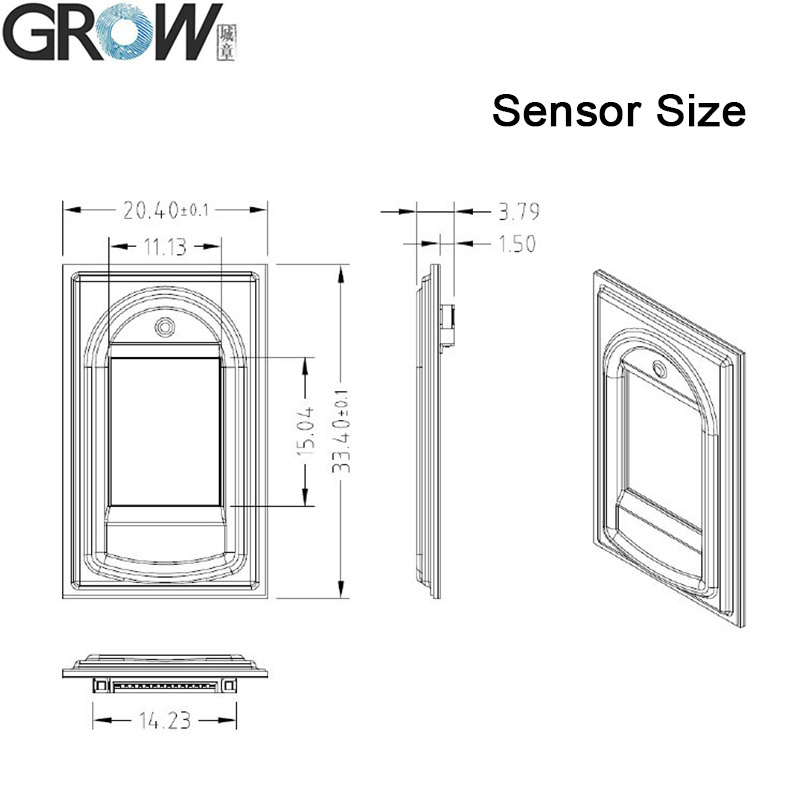

·Fingerprint reader module size: 20.4 * 33.4 (mm)
·Effective collection area: 11 * 15 (mm)
·ScanningSpeed: < 0.2 second
·Verification Speed: < 0.3 second
·Matching Method: 1:1; 1:N
·FRR (False Rejection Ratio): ≤0.01%
·FAR (False Acceptance Ratio): ≤0.00001%
·Work environment: -20°C ---55°C
·Work Humidity: 20-80%
·Communications baud rate (UART): (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Files

·All fingerprint module support with Arduino, Android, Windows, Linux, .Net and so on.
·Provide Free SDK Files
·Provide User Manual
