| Categories | Industrial Pressure Sensor |
|---|---|
| Brand Name: | HT SENSOR |
| Model Number: | BP93420-III |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 5000PCS/Month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Standard Export Package carton |
| Model NO.: | BP93420-III |
| Range: | -100kpa-10kpa~40mpa |
| Output: | 4-20mA |
| Power: | 24VDC(12-32VDC) |
| ACC: | ±0.5%F.S, ±0.25%F.S |
| Thread: | G1/2 OEM |
| HS Code: | 9026201090 |
| Measuring Medium: | Liquid and air |
| IP Rating: | IP65 |
| Customization: | OEM |
| Company Info. |
| Baoji Hengtong Electronics Co., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

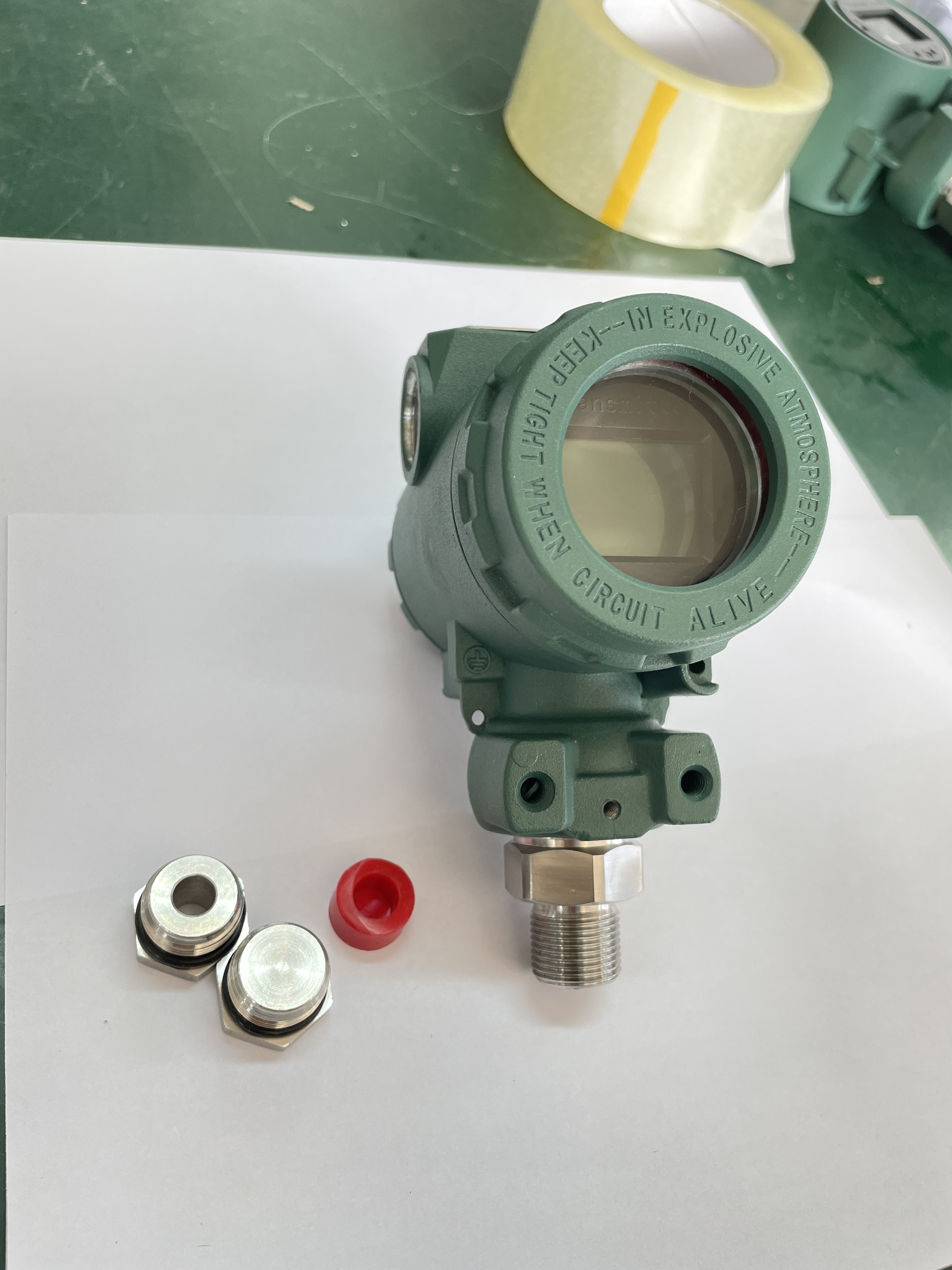

BP93420-III Pressure Transmitter
Introduction of industrial pressure transmitter sensor :
BP93420-III Industrial pressure sensor transmitter adopts stainless
steel pressure core, miniature amplifier processing circuit. Zero
range can be migrated. Its installation interface form can be
processed according to user requirements, and can provide
compatible specifications with other brands of transmitters. The
series of products are widely used in industrial process control,
hydraulic equipment, chemical industry and other industries, for
the industrial site environment is relatively harsh the product has
obvious advantages.
Product Features of industrial pressure transmitter sensor:
1. Wide measuring range, diverse pressure interface forms.
2. IP65 protection level.
3. Various output signal forms.
Applications of industrial pressure transmitter sensor:
1. Suitable for measuring the pressure of non-corrosive gases and
liquids in 316L stainless steel.
2. Petroleum, chemical, metallurgy, power, and hydrology
3. Pressure measurement and control in harsh outdoor industrial
environments.
4. Used in hydraulic and pneumatic control systems.
| Performance Parameters of 2088 pressure transmitter sensor | |
| Measurement Range | -100kPa…0kPa ~10kPa…60MPa |
| Pressure Type | Gauge Pressure, Absolute Pressure, Sealed Pressure |
| Overload | ≤ 1.5 times of the rated range |
| Accuracy @ 25ºC | ±0.25% (Typical) ±0.5% (Maximum) |
| Repeatability | ≤±0.1%FS |
| Hysteresis | ≤±0.1%FS |
| Long-Term Stability | ±0.1%F.S/Year(Typical) ±0.2%F.S/Year(Maximum |
| Zero Point Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Full Scale Temperature Drift | ±0.02%F.S/ºC(≤100KPa) ±0.01%F.S/ºC(>100KPa) |
| Frequency Response | 2.4Khz |
| Compensation Temperature | 0-70ºC(≤10mpa,customizable) |
| Operating Temperature | -20ºC~80ºC |
| Storage Temperature | -40ºC~120ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | Cast aluminum |
| Diaphragm Material | 316L |
| Insulation Resistance | 100MΩ 100VDC |
| Protection Rating | IP65 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~1kg |
| Ordering tips |
1. When selecting a product, please ensure that the medium under test is compatible with the contact part of the product.
2. When ordering a transmitter with LCD or LED display head, the power supply of the transmitter should not be lower than 20VDC.
3. In order to ensure the reliable operation of the product, it is recommended to install lightning protection device on site and ensure the reliable grounding of the product and the power supply.
4. Fluorine rubber o-rings rated operating temperature range for - 20 ℃ ~ 250 ℃.When the product working temperature is lower than -20℃, should choose EPDM O-type seal ring.
5. The default cable does not come with cable. If necessary, please communicate with the salesman in advance.
6. In case of strong vibration, instantaneous wallop, strong
electromagnetic or radio frequency interference and other special
requirements, please let us know and indicate in the order.
| Order Guide | ||||||||
| BP93420XX | Pressure Transmitter | |||||||
| Code | Outline Construction | |||||||
| IB | General Pressure Transmitter | IX | Display Pressure Transmitter | |||||
| IE | Shock-resistant Aviation Pressure Transmitter | IIC/III | Industrial General/ Display Pressure Transmitter | |||||
| IF | Moisture-proof Pressure Transmitter | IIE/IIIE | General/Display Pressure Transmitter | |||||
| IN | Air Conditioning Dedicated Pressure Transmitter | |||||||
| IC | High-temperature Pressure Transmitter | |||||||
| IQ/IQT | Large Diaphragm /High-temperature Pressure Transmitter | |||||||
| Measurement Range | -100kPa…0kPa ~ 35kPa…3.5MPa | |||||||
| (0-X)Kpa or MPa | X: Indicates the Actual Measuring Range | |||||||
| Code | Power Supply | |||||||
| D1 | 24VDC | |||||||
| D2 | 5VDC | |||||||
| D3 | Other | |||||||
| Code | Output Signal | |||||||
| S1 | 4~20mADC | S5 | 0~20mADC | |||||
| S2 | 1~5VDC | S6 | 0~10VDC | |||||
| S3 | 0~5VDC | S7 | 0.5~4.5VDC | |||||
| S4 | 0~10mADC | |||||||
| Code | Pressure Connection | |||||||
| J1 | M20×1.5 | |||||||
| J2 | G1/2 | |||||||
| J3 | G1/4 | |||||||
| J4 | 7/16-20UNF | |||||||
| J5 | Other | |||||||
| Code | Electrical Connection | |||||||
| B1 | Hirschmann | |||||||
| B2 | PG7 Plug | |||||||
| B3 | Sealed Cable Output | |||||||
| B4 | 2088 Industrial Casing | |||||||
| B5 | 2088 Industrial Casing with Display | |||||||
| B6 | Other | |||||||
| Code | Pressure Type | |||||||
| G | Gauge Pressure | |||||||
| A | Absolute Pressure | |||||||
| S | Sealed Reference Pressure | |||||||
|
