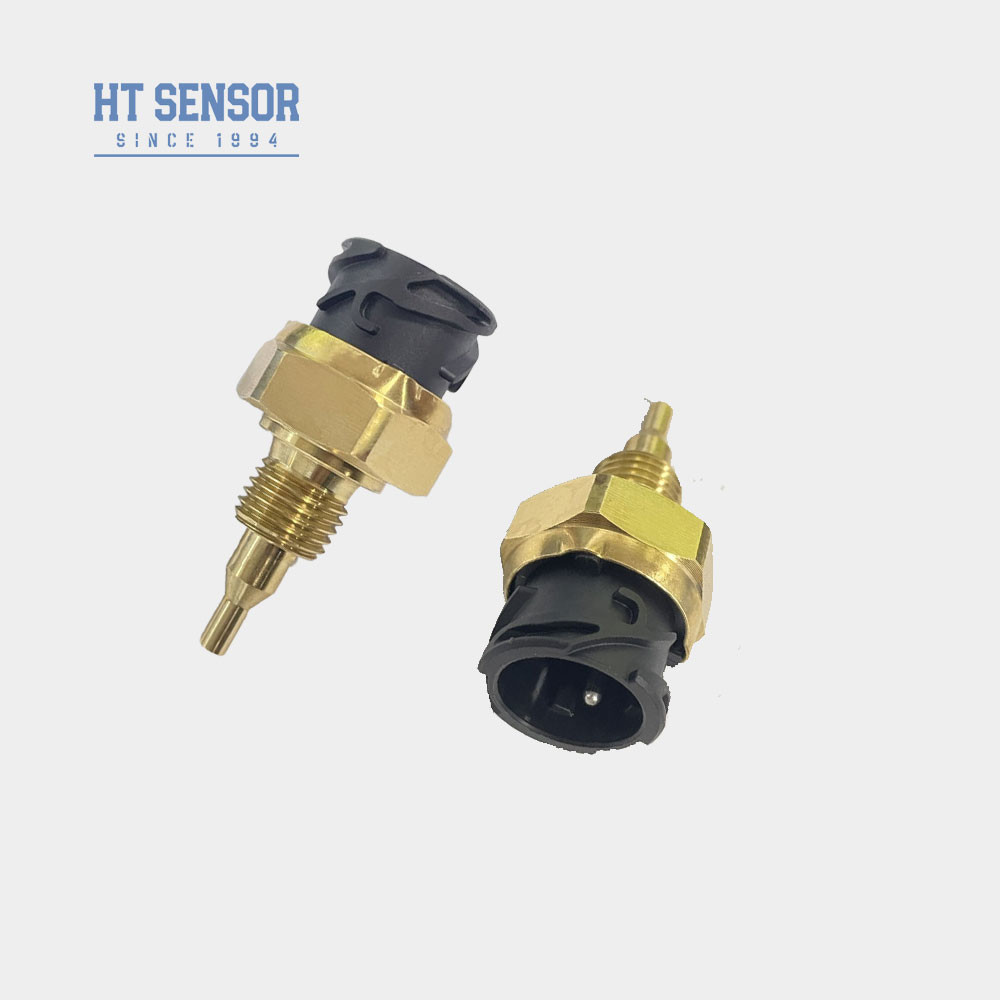

BT93420 Temperature Indicator Transmitter
Introduction of temperature induicator transmitter:
BT93420-I temperature indicating transmitter adopts Class A
PT100/PT1000, brass shell, fast heat conduction, high precision,
good stability, strong anti-interference ability, waterproof,
explosion-proof design, high temperature resistance, impact
resistance and so on.And control system integration, the
realization of automatic temperature control and monitoring.


Product Features of temperature induicator transmitter:- Full stainless steel structure, good corrosion resistance.
- Analog output and digital output are both available for selection.
- Terminal box, 2088 LCD, or LED display are available for selection.
Applications of temperature induicator transmitter:- Monitor the temperature of generators, transformers, cables, and
other critical equipment.
- Industrial Automation.
- Temperature measurement of various gases or liquids in pipelines in
industries such as petroleum, chemical, power, and hydrology.
Performance Parameters of temperature induicator transmitter |
Measurement Range | -55~200ºC |
Accuracy @ 25ºC | ±0.5% (Typ.) ±1% (Max.) |
Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
Long-Term Stability | ±0.2%F.S/year (Max.) |
Operating Temperature | -30~80ºC |
Storage Temperature | -40~100ºC |
Housing Material | Brass material |
Insulation Resistance | >=100MΩ@100VDC |
Maximum temperature | 120% of the rated temperature range |
Protection Rating | IP65 |
Weight | ~0.1Kg |

Order Guide |
BT93420 | Temperature Indicator Transmitter |
| Code | Outline Construction |
I | Blue Terminal Box |
II | 2088 housing |
III | 2088+LED |
IIIA | 3051+LED |
| Measurement Range | -55~1200ºC |
| Code | Power Supply |
D1 | 24VDC |
D2 | Other |
| Code | Output Signal |
S1 | 4~20mADC | S4 | 0~10mADC |
S2 | 1~5VDC | S5 | 0~20mADC |
S3 | 0~5VDC | S6 | 0~10VDC |
| Code | Pressure Connection |
J1 | M27X2 Male |
J2 | Other |
| Code | Insertion depth |
L | Actual insertion depth |
