Categories | Dynamic Inclinometer |
---|---|
Model Number: | MDA420-V1 |
Place of Origin: | Guangdong, China |
Brand Name: | RION |
Packaging Details: | CARTON |
Price: | $35.00/Pieces 1-99 Pieces |
Certification: | CE, ISO |
MOQ: | 1 |
Payment Terms: | T/T, PayPal |
Supply Ability: | 50000/month |
Delivery Time: | 7 days for samples |
Usage: | Level Sensor |
Theory: | MEMS |
Output: | Analog SENSOR |
Model number: | MDA420T |
Measuring axis: | X/Y |
power supply: | DC 9~36V |
measuring range: | within ±360° |
output: | 0~5v |
Static accuracy: | 0.3 |
Dynamic accuracy: | 0.8 |
anti-vibration: | 100g@11ms |
Protection Class: | IP67 |
size: | L61x W35 x H21mm |
Company Info. |
Shenzhen Rion Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

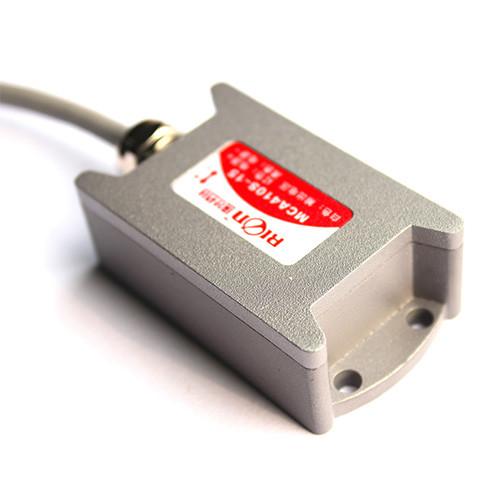

5V Output Dynamic Inclinometer Geological Monitoring Digital Analog Output
Description
The MDA410T-V1 series is a new dynamic measuring small-volume MEMS
tilt sensor from RION that accurately measures the attitude of the
motion carrier. The built-in dual-channel Earth Gravity Inclination
Unit converts into a tilt angle change by measuring static
gravitational acceleration. Thereby the tilt and pitch angle of the
sensor output relative to the horizontal plane can be measured.
Output 0~5v. Due to the built-in MCU control system, the linearity
of the sensor output is quadraticized, which compensates for the
accuracy of the analog type due to insufficient correction.
This product adopts non-contact measurement original quantity,
which can output the current attitude inclination angle in real
time. It is easy to use and does not need to retrieve the two
surfaces of relative change. This product is suitable for static
and dynamic measurement. It is an ideal choice for industrial
automation control and platform measurement attitude. It has strong
resistance to external electromagnetic interference and can adapt
to long-term work in industrial harsh environment.
Feature
●size:L61×W35×H21mm
Application
● Satellite antenna search star
● Rail-mobile monitoring
●Tilt angle measurement of High-altitude construction machinery
●oil-well drilling equipment
●Radar detection of vehicle platform
●Underground drill posture navigation
●Based on the angle direction measurement
●Satellite communications vehicle posture detection
●Shield pipe jacking application
●Ship's navigation posture measurement
●Geological equipment inclined monitoring
Technical Data:
Horizontal installation: be parallel between two surfaces:
Note: horizontal installation is factory default, if need vertical
installation, please confirm
with sales.
