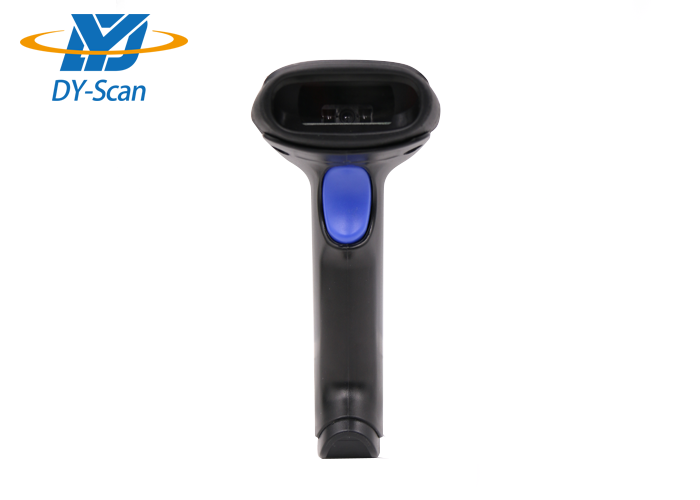

DS5100B Bluetooth 1D Barcode Scanner for Android/iOS, 2M Storage, 1600mAh Battery, Wireless Portable Scanner
Product Description
The DS5200B is a high-performance 1D Bluetooth and 2.4G wireless barcode scanner equipped with advanced CCD image recognition technology. It effortlessly scans barcodes from paper, goods, screens, and various other media. This versatile scanner is ideal for use in manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, asset inventory, and more.
Features
1. 300 scans/second
2. Bluetooth (HID,SPP,BLE),wireless2.4G ,could paired with android mobile,IOS devices
3. Long distance 150meters wireless transmission,Biuetooth 50 meters
4. High resolution 3mil
5. Reasonable price
Application
▅ Supermarket ▅ Warehouse
▅ Mobile payment ▅ Retail chain
▅ Courier ▅ Health care
| Physical Parameter | |
| Weight | 160g(without cable) |
| Dimension | L150mm * W70mm * H95mm |
| Communication method | Wireless 2.4G,bluetooth,USB |
| Power supply | DC 5V@100mA(work) |
| Performance | |
| Scan type | Linear CCD |
| Light source | Visible red light,625±10nm |
| CPU | 32-bit |
| Resolution | 2500 |
| Resolution | ≥3mil/0.1mm(PCS90%,Code 39) |
| Decoding speed | 300 times/s |
| Depth of field | 10mm-600mm |
| Scan mode | Manual, Continuous, Auto sense |
| Scan angle | Row±30°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm) |
| Print contrast signal | ≥20% |
| Ambient light | Dark,Indoor natural light |
| Wireless communication mode | Synchronization , asynchronous , storage |
| Wireless transmission distance | Bluetooth 4.2 50m Wireless2.4G 150m |
| Storage | 2M(over 100000 barcodes) |
| Battery capacity | 1600mAh |
| Battery charging time | 6.5 h |
| Continuous working time | ≥20h |
| Symbologies | UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc. |
| Environmental | |
| Operating temperature | 0℃ to 50℃ |
| Storage temperature | -20℃ to 60℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.5m |
| Transport vibration Test | 10H@125RPM |
| Depth of field | |
| 3MIL | 60-100mm (PCS90%,Code 39) |
| 13MIL | 10-320mm (PCS90%, EAN-13) |
| 20MIL | 10-430mm (PCS90%,Code 39) |
| 40MIL | 110-600mm (PCS90%,Code 39) |
| Accessories list | |
| Data cable(charging cable) | USB, connect the scanner to a host device and charging. |
| Receiver | Used to receive and transmit scanner data. |
FQA:
Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.
Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.
Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months
Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.
Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.
|
