| Categories | Fiber Optic Accessories |
|---|---|
| Brand Name: | GEZHI or OEM |
| Model Number: | Fiber Optic Connector |
| Certification: | CE RoHS,ISO9001 |
| Place of Origin: | China |
| MOQ: | 1 pieces |
| Price: | US$0.8/PCS-US$20/PCS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 Piece/Pieces per Day |
| Delivery Time: | 7 Days |
| Packaging Details: | inner box,Carton |
| Anti-Tensile Force (N): | 60N |
| Operating Temp: | -40~85°C |
| Durability: | >1000times |
| Return Loss: | ≥50dB |
| Insertion Loss: | ≤0.3dB |
| Cable Diameter: | 2.0/3.0mm or 3.0*2.0mm |
| Type: | Straight-through |
| Network: | Wireless Lan, Ip, POE, GPRS, wifi, 4g |
| Warranty Time: | 3 years |
| Company Info. |
| Gezhi Photonics (Shenzhen) Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Product description

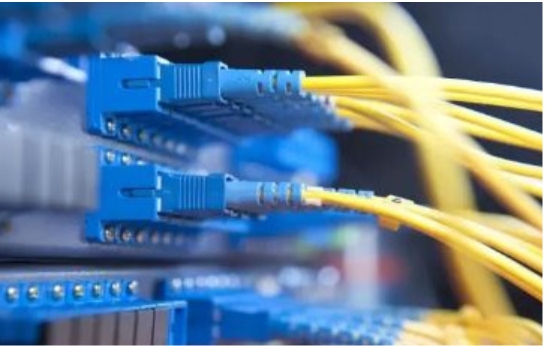

Fiber Optic LC Straight-through Fast Connector
develop molds and produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping.
Specifications
| parameter | LC Connector | |||
| SM | MM | |||
| PC | UPC | APC | PC/UPC | |
| Insertion loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return loss | ≥50dB | ≥50dB | ≥50dB | / |
| operating wavelength | 1310nm, 1550nm | 850nm, 1300nm | ||
| Ferrule Concentricity | ≤1um | ≤4um | ||
Application
◉ Test Equipment
◉Telecommunication Networks
◉Local Area Networks (LANs)

◉ Data Processing Networks
◉ Premise Installations
◉ Wide Area Networks (WANs)

◉ Industrial, Medical & Military
◉ CATV, Metro
◉ Active Device Termination

|
