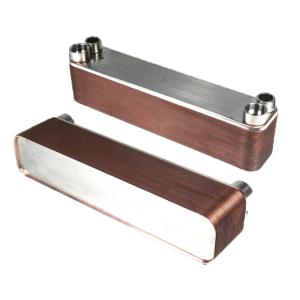

Air Cooled Brazed Water Chiller Heat Exchanger Stainless Steel Brazed Plate Heat Exchanger

Air Cooled Brazed Water Chiller Heat Exchanger Stainless Steel Brazed Plate Heat Exchanger

Product Description

Brazed plate heat exchanger maintenance needs to pay attention to the following matters:

1. Brazed plate heat exchanger scale blockage: When the heat exchanger is blocked by scale, it can be reverse cleaned with weakly acidic aqueous solution (5% ammonium sulfate or peroxide-acid can be applied). In order to improve the actual cleaning effect, it can be pressurized and cleaned with centrifugal pump. It is best to clean the acid in the system software with a lot of cold water after pickling and passivation.

2. Brazed plate heat exchanger plate field leakage: when this situation occurs, it is generally impossible to repair, because the heat exchanger commonly used brazing material is ultra-low temperature solution, the high temperature caused by maintenance welding usually melts the surrounding brazing material, resulting in water leakage in other areas around.

3. Brazed plate heat exchanger on the interface leakage or cracks: the situation is more cheerful than the second point, but the maintenance difficulty factor is still very large.

4. Brazed plate heat exchanger internal crack or leakage: because brazed plate heat exchanger is electric welding welding type, such a situation can not be repaired, only disassembly.

Naturally, for the damage of the above two and three points, you can also try welding repair, but be sure to pay attention to the following issues:

1. Clean the maintenance place before welding, and brush the surface of welding with chlorate flux.

2. The brazed plate heat exchanger is placed before welding, the heat exchanger is filled with water, and the welding area is wrapped with a wet cloth to prevent the high temperature caused by welding from being transmitted to the surrounding area and melting other areas or endangering the compressive strength of welding.

3. Should be controlled continuous electric welding welding time is not suitable for too long, in order to reduce excessive heat damage.

4. Electric welding commonly used silver-based welding wire, the silver content of at least 45% above, welding temperature need not exceed 650℃, in order to prevent damage to the compressive strength of electric welding.

Model

BL1

Jiangsu Baode Heat-Exchanger Co., Ltd. is a Chinese NO, 1 Plate Heat Exchanger Manufacturer specialized in development. Production and global marketing of plate heat exchangers. Since the very start in 2004 BAODE has grown to one of the leading companies in China Plate heat exchanger market and has developed a big range of plate heat exchanges for any task.

Our main products are Brazed plate heat exchanger&Gasket plate heat exchanger&Air cross plate heat exchanger(Flat plate heat exchanger and frame and plate heat exchanger, welded plate heat exchanger).

Our mission is to help you to achieve the optimum solution with regards to performance efficiency, payback and energy conservation, whatever the application. This is based on a marketing orientation concept which makes us a highly valuable partner. Our combined expeerience in the plate heat exchanger industry, allow us giving the best technical recommendation for our customers and end users for applications.
