Rugged Waterproof Enclosure Embedded Android PC industrial IP67 MINI PC

Categories Embedded Industrial PC
Brand Name: ITD/OEM
Model Number: ITD-MNPC-IPAN-3588
Certification: CE/ROHS/FCC
Place of Origin: China
MOQ: 1PCS
Price: TBA
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000 units per month
Packaging Details: Foam,gift box,wooden case,pallet
CPU: ARM Octa Core RK3588, Cortex-4×A76+4×A55
GPU: Mali-G610 MP4 Quade GPU Supports OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
SD RAM: Default to LPDDR4/LPDDR4x 4GB 64bit LPDDR4/LPDDR4x, Max. 64GB
ROM: Default to eMMC 32GB, Max. 128GB
Bluetooth: Bluetooth 5.2
Serial Ports: 1 x COM
Video input: HDMI
Power: 1x DC9-36v
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Rugged Waterproof Enclosure Embedded Android PC industrial IP67 MINI PC

Rugged Waterproof Enclosure Embedded Android PC industrial IP67 MINI PC

The ITD rugged waterproof box Android PC is designed to withstand harsh environmental conditions such as exposure to water, dust, and extreme temperatures. It is rugged and reliable computing solution that can be used in a wide range of applications, including industrial automation, outdoor surveillance, and marine environments. IP65/IP66/IP67 rating indicates that the box PC is completely protected against dust and can withstand immersion in water up to a certain depth for a specified amount of time. Rugged IP65/IP66/IP67 waterproof box computer is a robust and durable computing solution that is designed to withstand harsh environments and extreme conditions.




Specifications:


SystemCPUARM Octa Core RK3588, Cortex-4×A76+4×A55
GPU

Mali-G610 MP4 Quade GPU

Supports OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS

ChipsetRockchip
SDRAMDefault to LPDDR4/LPDDR4x 4GB 64bit LPDDR4/LPDDR4x, Max. 64GB
ROMDefault to eMMC 32GB, Max. 128GB
SpeakersOptional
Multi MediaVPU 8K@60fps H.265/H.264/VP9 Video Decoding NPU Computing Power; 6Tops, 8K Video Encoding and Decoding
Operating SystemAndroid 12
CommunicationBluetoothBluetooth 5.2
GPSOptional
WiFi6

2.4GHz&5GHz,IEEE 802.11b/g/n/AC, (Built-in High-Performance SDIO Interface WiFi6 Module)


4G/5GOptional
Default Waterproof I/OSerial Ports1 × COM
USB Ports2 × USB 2.0, Max.: 6× USB 2.0(1× USB 3.0 included)
LAN1 × RJ45 (10M/100M/1000M Ethernet)
Video Output1 × HDMI Output
Power1 × DC9~36V input
OthersPower Switch1 × Power Switch
Breathing Valve1 × Breathing Valve
PowerInput VoltageDC 9~36V
Operation/Power Saving15W
StructureHousing MaterialAluminum Alloy, Full CNC Treated, Anodizing and Anti-scratch Treatment
ColorBlack or Silver
Mounting MethodVESA Mounting 75 ×75mm
Cooling SystemDie-Casting Aluminum Chassis with Passive Cooling
Environment ConsiderationsOperating Temperature-10~60℃
Storage Temperature-20~70℃
Relative Humidity10%~90%(Non-Condensation)
Vibration50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock10 G/Peak (11 ms)

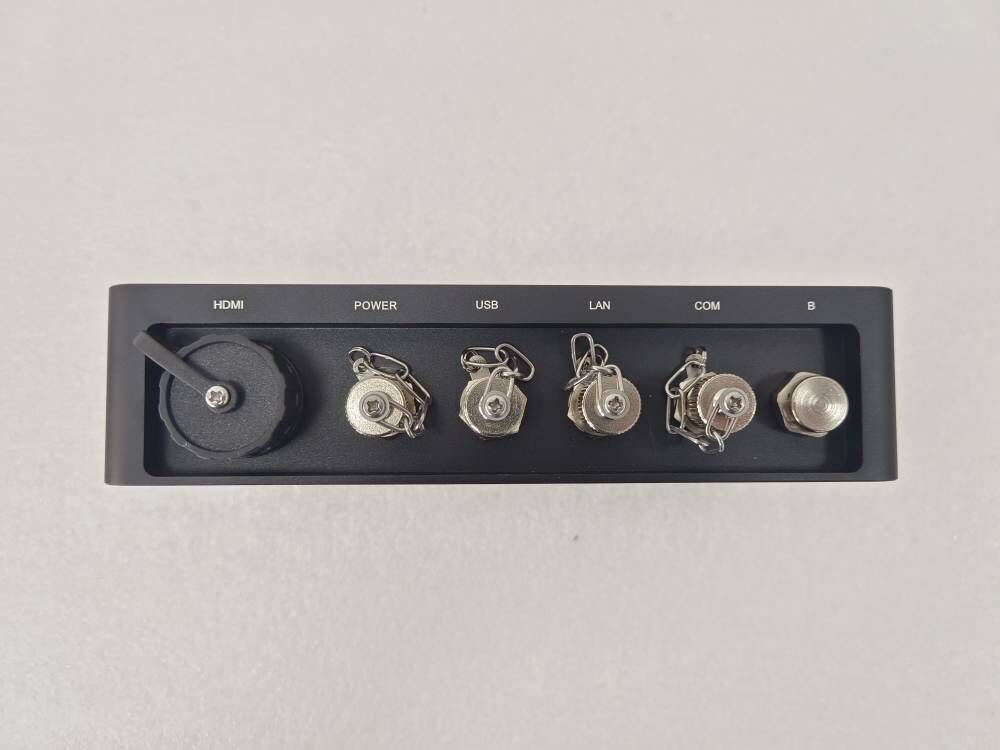

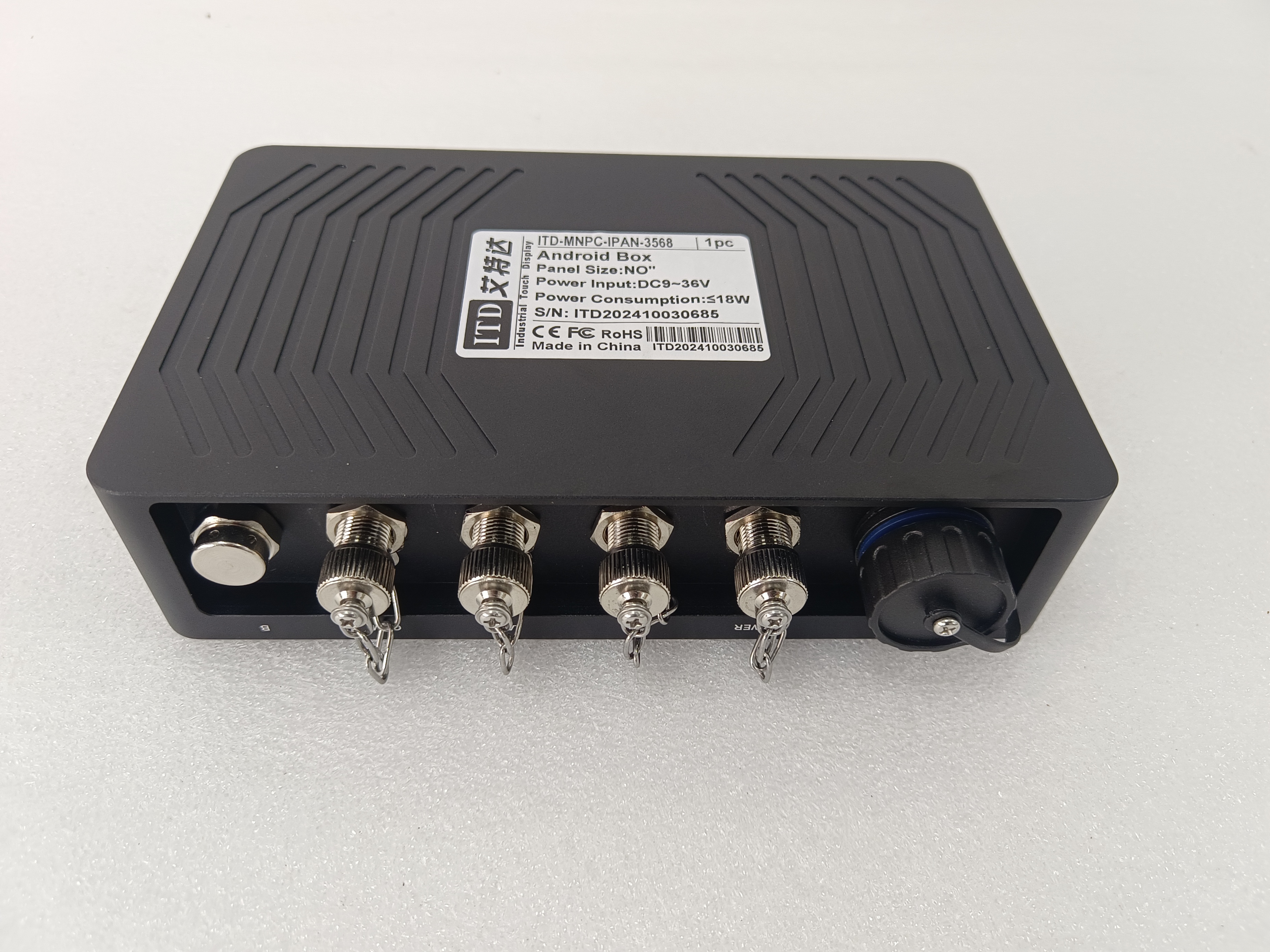

Product image:













Factory:







Quality Rugged Waterproof Enclosure Embedded Android PC industrial IP67 MINI PC for sale
