| Categories | Outdoor Power Cabinet |
|---|---|
| Brand Name: | Daxin |
| Model Number: | ODC-705835CF2P-001 |
| Certification: | ISO9001,CE,3C,FCC,TLC,IP55 |
| Place of Origin: | Shenzhen,China |
| MOQ: | 1 set |
| Payment Terms: | T/TD/A,Western Union,Paypal,etc |
| Supply Ability: | 3000pcs/month |
| Delivery Time: | 20-40 days |
| Packaging Details: | Woodcase |
| Price: | Negotiation |
| Product Name: | Outdoor Power Cabinet |
| Install Method: | Pole/Wall Mount |
| Material: | Galvanized steel/ Stainless steel |
| Customized service: | Yes |
| UPS capacity: | 150A |
| Cooling System: | Dual air ducts + fan cooling |
| Company Info. |
| Shenzhen Daxin Intelligent Equipment Technology Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

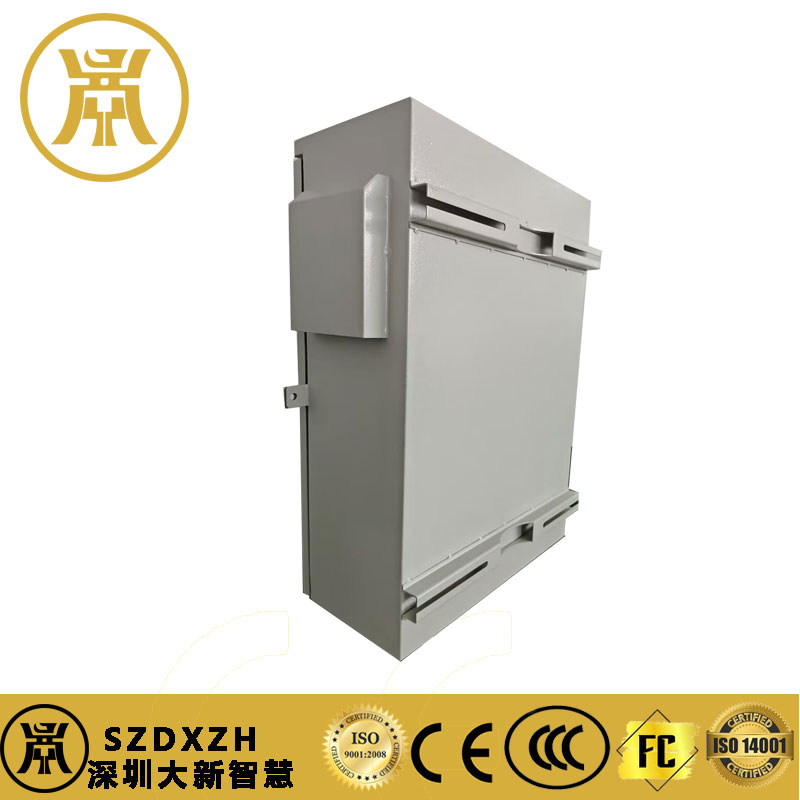

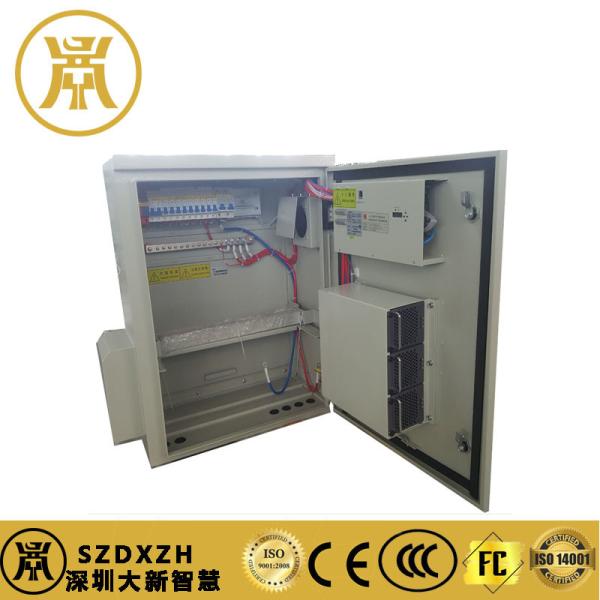

The WPS30000-150/150 Outdoor Power Cabinet is a 150A wall-mounted UPS designed for telecom, data communication, and satellite systems. It integrates AC/DC power distribution, temperature control, battery management, and remote monitoring in a rugged IP55-rated outdoor cabinet, supporting wall-mounting, floor-standing, and pole-mounted installations.
Max 150A capacity with -54V DC output
Integrated battery management (low-voltage protection, load shedding, temperature compensation)
Remote monitoring via RS232/RS485 & dry contacts
Dual AC/DC lightning protection (C-grade: 20-40kA)
Wide input voltage range (90-300V AC)
High efficiency (up to 95%) with hot-swappable rectifier modules
IP55 protection with forced-air cooling & built-in thermal control
Supports LiFePO4 (50Ah) or lead-acid (4x38Ah) batteries
| Component | Configuration | Details |
|---|---|---|
| Dimensions (H×W×D) | 700×580×350mm | Wall/floor/pole-mount |
| Cooling System | Dual air ducts + fan cooling | IP55 rated |
| Battery Support | 50Ah LiFePO4 or 4x38Ah lead-acid | Optional |
| Unit | Specification |
|---|---|
| AC Input | 63A/2P (Icu≥6kA, Ics≥6kA) |
| DC Output | 150A (adjustable: -42V to -58V) |
| Lightning Protection | AC: 20-40kA / DC: 10-20kA |
| Load Shedding | Primary (63A/1P) & Secondary (20A/1P) |
| Parameter | Value |
|---|---|
| Input Voltage | 90-300V AC (176-300V full load) |
| Output Voltage | -54V DC (±1% regulation) |
| Efficiency | ≥95% (220V AC) |
| Noise Level | ≤55dB |
| Condition | Operating Range |
|---|---|
| Temperature | -40°C to +45°C (full load at -40°C) |
| Humidity | 5-90% RH (non-condensing) |
| Altitude | ≤4000m (derating above 2000m) |
✔ Reliable UPS for Harsh Environments – Operates in extreme
temperatures (-40°C to +45°C)
✔ Smart Battery Management – Auto voltage compensation, capacity
calculation, and load shedding
✔ Flexible Monitoring – Supports remote control via RS485/dry
contacts
✔ High Safety Standards – Meets YD/T1058-2000, IEC61000-4-5 (surge
protection), and EN55022 (EMC)
Ideal for:
Telecom base stations
Satellite & data communication hubs
Outdoor power backup systems
Upgrade to the WPS30000-150/150 Outdoor Power Cabinet for unmatched reliability in critical power applications.
