| Categories | Bar Type TFT LCD |
|---|---|
| Brand Name: | ESEN |
| Model Number: | T068601G01-24M |
| Certification: | ISO9001/ISO14001 |
| Place of Origin: | Shenzhen China |
| MOQ: | No MOQ |
| Price: | can be negotiated |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 300K/mth |
| Delivery Time: | 6~14 working days |
| Packaging Details: | Cartons, Capboard, EPE, Blister Tray. |
| LCD Size: | 6.86inch |
| Panel Type: | IPS |
| Resolution: | 480xRGBx1280 |
| Display Mode: | Normally Black |
| Number of Colors: | 16.7M |
| Viewing Direction: | ALL |
| NTSC: | 50%Typ |
| Contrast Ratio: | 1500Typ |
| Luminance: | 300cd/m2 |
| Module Size: | 66.41(H)x177.19(V)x4.45(D）mm |
| Panel Active Area: | 60.22*160.59mm |
| Pixel Pitch: | 125.4(H) x 125.4(V)mm |
| Pixel Arrangement: | RGB Vertical stripe |
| Driver IC: | FL7707N |
| Light Source: | 12 LEDS light |
| Interface: | MIPI |
| Operating Temperature: | -20~+70℃ |
| Storage Temperature: | -30~+80℃ |
| Custom Service: | FPC, CTP (capacitive touch panel), RTP (resistive touch panel), pin definition, packing, HD-MI board |
| Company Info. |
| ESEN HK LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

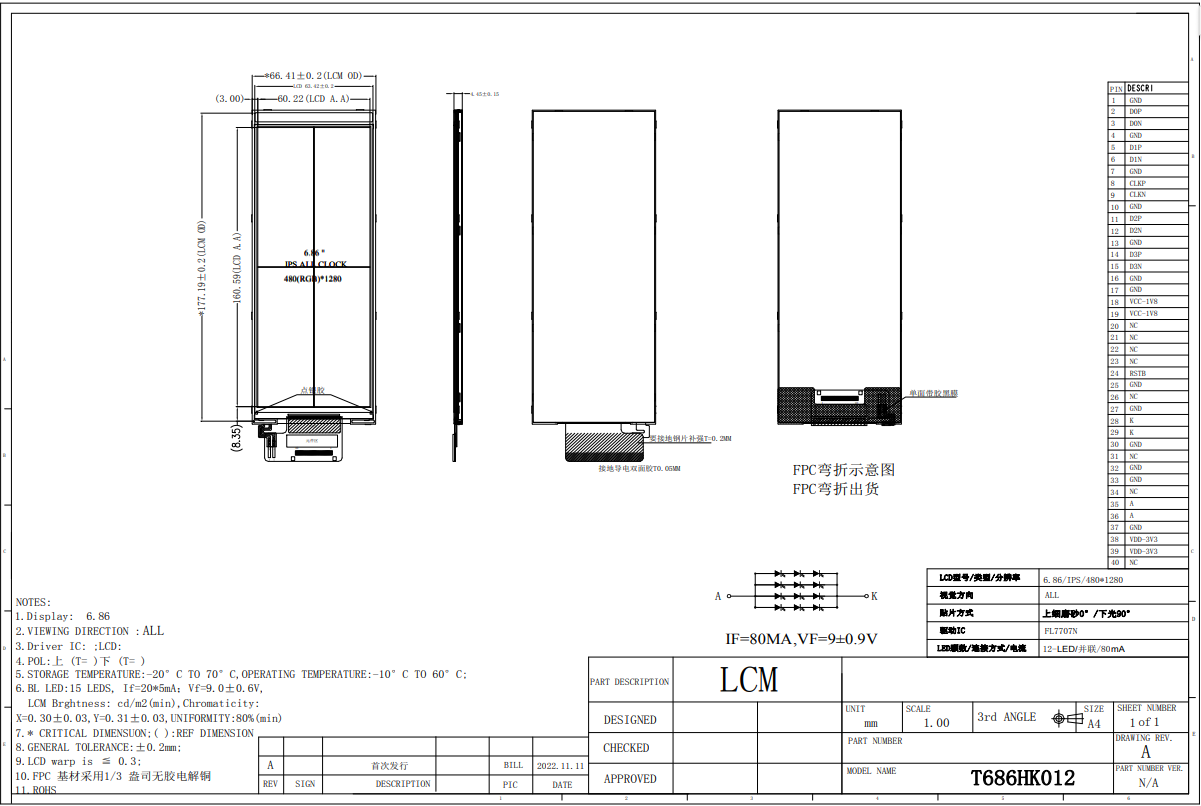

Notes:
(1) Display Type : 6.86" TFT+TP(can customize)
(2) Viewing Direction : 80/80/80/80
(3) Polarizer Mode : IPS/ Transmissive/ NormallyBlack
(4) Operating Temp : -20~70 ℃
(5) Storage Temp : -30~80 ℃
(6)) Unmarker Tolerance: ±0.20
(7) Protection : ROHS
WIDELY COMPATIBILITY
The 6.86 inch tft lcd module can be widelyused in household
appliances such as washing machine,refrigerator,
audio,oven,ventilator and so on.
Pin Assignments
Electrical Specification
6. FAQ
Q1: Are you manufacturer ?
A: Yes, we are manufacturer.
Q2: How long is your delivery time?
A: Normally 3-5 working days after payment; Special requirement
orders, delivery time is negotiable.
Q3: If the products can't work after receiving it,what should I do?
A: We will replace new items for you at once and then we make the
judgement for the issue.
Q4: Do you accept OEM design?
A: Yes,we do.We can design according to your requirement, MOQ
usually 100-1000.
Q5: Do you accept pay 30% in advance?
A: Yes,we do.We can start to prepare your goods when receive 30%
payment, and send them after get the rest 70% payment.
Q6: What payment terms you accept?
A: We accept Paypal, T/T, Western Union, Wechat, Alipay, in Cash
(RMB or USD).
|
